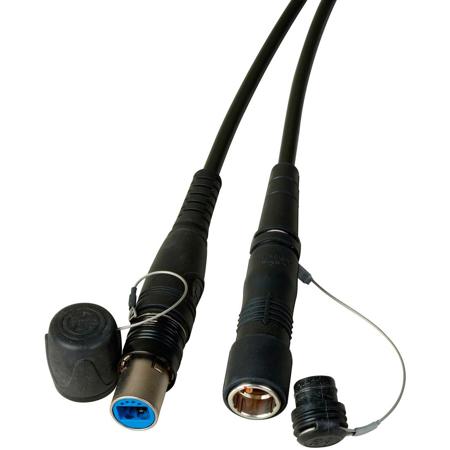

Camplex 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2PUW0164 MFR: HF-OC2PUW-0164
Earn VIP Reward Points

Key Features

  • Experience stable streaming with our SMPTE 311M fiber optic cable, ensuring reliable broadcast quality.
  • Achieve high-resolution video capture using this 164' opticalCON DUO to LEMO PUW singlemode cable.
  • Enjoy good compatibility; this cable supports various video equipment with its Neutrik & LEMO connectors.
  • Low latency transmission ensures real-time video capture, perfect for live events and critical monitoring.
  • Easy setup with durable, flexible cable; the polyurethane jacket withstands demanding production environments.
  • Affordable price for a high-quality, 9um singlemode fiber cable that enhances your video production workflow.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$77.99

3 Year

$119.99

4 Year

$155.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    164' / 49.99m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    PUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable

Where professional broadcast AV applications demand the highest quality, the 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable stands out. This state-of-the-art cable is factory terminated and machine polished in a dedicated Fiber Optic Lab, ensuring exceptional performance and reliability.

Designed for ruggedized applications and field deployment, this SMPTE 311M rated cable is perfect for both commercial and professional broadcast settings. It has been interferometrically tested to GR-326-CORE end face standards, guaranteeing low return loss and insertion loss for superior signal transmission.

The opticalCON DUO to LEMO PUW cable features a robust connector body, common LC contacts, and a mechanical shutter system. This system effectively shields against end face contamination, ensuring the longevity and reliability of your connections. The cable is composed of 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, with an overall copper braided shield and stainless steel strength member.

Please note, this cable is not compatible with the SMPTE 304M standard. However, it is suitable for indoor (studio) camera links, considering specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1, and rated voltage.

The cable is assembled exclusively using the Neutrik opticalCON ADVANCED system, which enhances the original opticalCON by adding lockable and waterproof metal caps as well as rubber guards. This makes it especially suitable for outdoor applications. The ergonomic cable strain relief improves cable protection and water resistance for long-term use, while the color-coding options allow for custom-built coding.

This fiber optic cable is easy to clean and requires no tools, thanks to its reliable push-pull locking mechanism. It offers excellent dust and dirt protection due to an automatic sealing shutter with a silicone gasket. The cable connector features a rugged all-metal housing and heavy-duty cable retention, ensuring durability and longevity.

The 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable is ideal for interconnecting AV Camera and CCU systems and accessories. It's perfect for deployable, staging, and harsh environments, and can adapt Lemo to opticalCON SMPTE Patching Systems. It's compatible with Telecast, JFS, and Nemal assemblies, and Whirlwind: OC-SMPTE-OS-IP-0-x, OC-SMPTE-OS-IS-0-x.

Camplex 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable for professional broadcast AV applications
  • Factory terminated and machine polished in a dedicated Fiber Optic Lab for exceptional performance
  • Ruggedized design suitable for outdoor applications, featuring lockable and waterproof metal caps
  • Features a robust connector body, common LC contacts, and a mechanical shutter system for reliable connections
  • Assembled exclusively using the Neutrik opticalCON ADVANCED system for enhanced durability and longevity
  • Ideal for interconnecting AV Camera and CCU systems and accessories, compatible with Telecast, JFS, and Nemal assemblies

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience stable streaming with our SMPTE 311M fiber optic cable, ensuring reliable broadcast quality.
  • Achieve high-resolution video capture using this 164' opticalCON DUO to LEMO PUW singlemode cable.
  • Enjoy good compatibility; this cable supports various video equipment with its Neutrik & LEMO connectors.
  • Low latency transmission ensures real-time video capture, perfect for live events and critical monitoring.
  • Easy setup with durable, flexible cable; the polyurethane jacket withstands demanding production environments.
  • Affordable price for a high-quality, 9um singlemode fiber cable that enhances your video production workflow.

What's in the box:

  • Camplex 164' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
