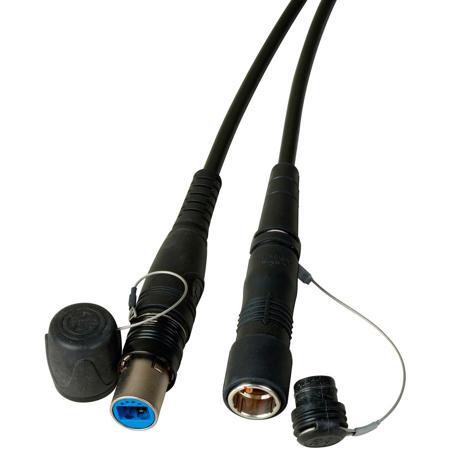

Camplex 328' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable

Discover the power and reliability of the 328' opticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Outside Broadcast Cables. Expertly crafted by COCA in their state-of-the-art Fiber Optic Lab, these assemblies are machine polished and factory terminated for optimal performance. Designed specifically for ruggedized applications and field deployment, they are ideal for commercial and professional broadcast AV applications.

The opticalCON assemblies are tested interferometrically to meet GR-326-CORE end face standards, ensuring high-quality transmission. The machine polishing process guarantees exceptionally low return loss and insertion loss, enhancing the overall performance of your AV equipment.

These cables feature a robust connector body with common LC contacts and a mechanical shutter system. This unique design shields against end face contamination, ensuring a clean and clear signal. The SMPTE 311M cable includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member.

Please note, this cable is not compatible with the SMPTE 304M standard. It is, however, suitable for indoor (studio) camera links under specific conditions according to IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage.

The opticalCON ADVANCED system is exclusively used in the assembly of these cables, enhancing their robustness with lockable and waterproof metal caps and rubber guards. This makes them particularly suitable for outdoor applications. The ergonomic cable strain relief improves cable protection and water resistance for long-term use, while color-coding options allow for custom-built coding.

Key features include machine-polished and tested end faces, a tactical tight buffered PUR Cable, and an optical shutter mechanism for added protection. The cable connector boasts a rugged all-metal housing and heavy-duty cable retention, providing excellent dust and dirt protection due to an automatic sealing shutter with a silicone gasket. A reliable push-pull locking mechanism ensures secure connections, and the system is easy to clean with no tools required.

These cables are perfect for interconnecting AV Camera and CCU systems and accessories, adapting Lemo to opticalCON SMPTE Patching Systems, and are compatible with Telecast, JFS, and Nemal assemblies. Whether you're staging a live event or working in a harsh environment, these cables deliver the reliable, high-quality performance you need.
