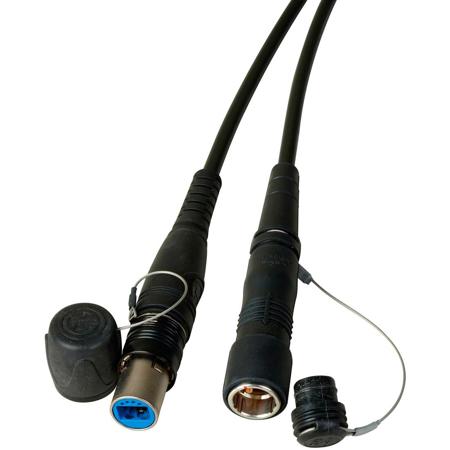

Camplex 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2PUW0656 MFR: HF-OC2PUW-0656
Earn VIP Reward Points

Key Features

  • Ensure reliable streaming with this 656' SMPTE 311M fiber optic cable.
  • Experience low latency with opticalCON DUO connectors for superior video capture.
  • Enjoy good compatibility using LEMO PUW connectors in your broadcast setup.
  • This affordable price point offers high resolution video for professional use.
  • The easy setup of optical fiber ensures quick integration for live streaming events.
  • Count on robust, durable cable design for long-term, reliable video transmission.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$219.99

4 Year

$285.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    656' / 199.95m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    PUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable

Let your broadcast capabilities reach new heights with the 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable, a premium solution for high-definition audiovisual applications. This cable is meticulously crafted to meet the rigorous demands of outside broadcasting, ensuring reliable performance even in the most challenging environments.

The opticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Cable is a testament to precision engineering, with each assembly being factory terminated and machine polished within a state-of-the-art Fiber Optic Lab. The Neutrik opticalCON assemblies are designed to withstand the rigors of field deployment, making them an ideal choice for commercial and professional broadcast AV applications.

Adhering to the stringent GR-326-CORE end face standards, these cables undergo interferometric testing to guarantee superior quality. The machine polishing process is fine-tuned to achieve exceptionally low return loss and insertion loss, which translates to clearer signals and enhanced performance.

The robust construction of the opticalCON connector body, paired with common LC contacts and a mechanical shutter system, provides a formidable barrier against end face contamination. The SMPTE cable configuration includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, all shielded by an overall copper braid and reinforced with a stainless steel strength member.

While this cable is not compatible with the SMPTE 304M standard, it is perfectly suited for indoor studio camera links, adhering to the specific conditions outlined in IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage.

The Neutrik opticalCON ADVANCED system exclusively assembles these cables, enhancing durability with lockable and waterproofed metal caps, along with rubber guards - vital features for outdoor applications. The ergonomic cable strain relief is designed to improve cable protection and water resistance for long-term use, while the color-coding options facilitate custom-built coding.

Key features of this cable include:
- Machine polished and tested end faces for consistent high-quality connections.
- Tactical tight buffered PUR Cable construction for durability and flexibility.
- Optical Shutter Mechanism to safeguard against contamination.
- Heavy Duty Tactical Reel with Side Reel Flange (TR version only) for easy deployment and storage.
- Ruggedized 2 channel fiber optic connection system, built to endure harsh conditions.
- Waterproof rating of IP65 when mated, ensuring protection against the elements.
- Compatibility with standard optical LC-Duplex connectors for versatile connectivity.
- Rugged all-metal housing and heavy-duty cable retention for enhanced cable lifespan.
- Automatic sealing shutter with silicone gasket for excellent dust and dirt protection.
- Reliable Push-Pull locking mechanism for secure connections.

Applications for this fiber optic cable are diverse, including:
- Interconnecting AV Camera and CCU systems and accessories.
- Deployment in staging and harsh environments.
- Adapting Lemo to opticalCON SMPTE Patching Systems.
- Compatibility with Telecast, JFS, and Nemal assemblies.
- Whirlwind: OC-SMPTE-OS-IP-0-x, OC-SMPTE-OS-IS-0-x models.

Invest in the 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable for a professional-grade link that ensures your broadcast quality remains uncompromised, even in the most demanding situations.

Camplex 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-precision factory terminated and machine polished for optimal signal clarity
  • Ruggedized SMPTE 311M cable designed for professional outside broadcast applications
  • Features Neutrik opticalCON ADVANCED system with lockable, waterproof metal caps
  • Ergonomic cable strain relief for improved protection and water resistance
  • Versatile connectivity with standard optical LC-Duplex connectors and robust Push-Pull locking mechanism
  • Interferometrically tested to GR-326-CORE standards for reliable high-quality performance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable streaming with this 656' SMPTE 311M fiber optic cable.
  • Experience low latency with opticalCON DUO connectors for superior video capture.
  • Enjoy good compatibility using LEMO PUW connectors in your broadcast setup.
  • This affordable price point offers high resolution video for professional use.
  • The easy setup of optical fiber ensures quick integration for live streaming events.
  • Count on robust, durable cable design for long-term, reliable video transmission.

What's in the box:

  • Camplex 656' opticalCON DUO to LEMO PUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
