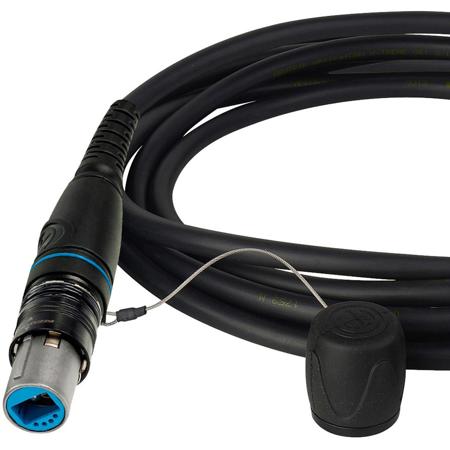

Camplex 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOCSMPT0003 MFR: HF-OCSMPT-0003
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 3' opticalCON DUO fiber optic cable.
  • Experience superior durability with its rugged polyurethane jacket & steel strength.
  • Enjoy high-performance connectivity with Neutrik opticalCON DUO connectors.
  • This SMPTE 311M cable is flame tested and CMR rated for worry-free use.
  • Get optimal signal quality with < .45 dB/km cable loss at 1310/1550 nm.
  • Benefit from its extended lifespan of >1000 cycles, a worthwhile investment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    3' / 0.91m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < .45 dB/km at 1310/1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

Take your professional audio and video setup to the next level with the 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable by Camplex. This high-quality, durable cable is designed for rigorous use in both studio and field applications, making it a reliable choice for professionals in the film and television industry.

The opticalCON DUO cable is factory terminated and machine polished in a state-of-the-art Fiber Optic Lab, ensuring exceptionally low return loss and insertion loss. It features a ruggedized connector body, common LC contacts, and a mechanical shutter system that shields against end-face contamination, providing a sturdy and reliable connection.

Constructed with 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper power conductors, this cable also includes an overall copper braided shield and stainless steel strength member. Please note that this cable is not compatible with the SMPTE 304M standard.

Designed for indoor (studio) camera links, this cable meets specific conditions according to IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage. The opticalCON DUO cable is assembled exclusively using the Neutrik opticalCON ADVANCED system, which enhances its robustness by adding lockable and waterproof metal caps as well as rubber guards, making it suitable for outdoor applications.

The ergonomically designed cable strain relief improves the cable's protection and water resistance for long-term use, while the color-coding options allow for custom-built coding. The opticalCON DUO cable is interferometrically tested to GR-326-CORE end face standards, ensuring the highest level of performance.

This cable is perfect for a variety of applications, including digital audio and video, digital signage, data and networking, lighting control, and use in deployable, staging, and harsh environments. It's compatible with a range of devices, including JVC FS-790, FS-CABHYB100, FS-CABHYB200, FS-CABHYB500, SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70, and SONY CCFN-25, CCFN-50, CCFN-100.

With its reliable push-pull locking mechanism, easy-to-clean design requiring no tools, and excellent dust and dirt protection due to an automatic sealing shutter with a silicone gasket, the 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable by Camplex is a superior choice for professionals seeking a high-quality, reliable connection.

Camplex 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable designed for professional audio and video applications
  • Factory terminated and machine polished for low return loss and insertion loss
  • Ruggedized connector body and mechanical shutter system for end-face contamination protection
  • Assembled using the Neutrik opticalCON ADVANCED system for enhanced robustness & water resistance
  • Interferometrically tested to GR-326-CORE end face standards for optimal performance
  • Compatible with a range of devices including JVC and SONY models for diverse application use

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 3' opticalCON DUO fiber optic cable.
  • Experience superior durability with its rugged polyurethane jacket & steel strength.
  • Enjoy high-performance connectivity with Neutrik opticalCON DUO connectors.
  • This SMPTE 311M cable is flame tested and CMR rated for worry-free use.
  • Get optimal signal quality with < .45 dB/km cable loss at 1310/1550 nm.
  • Benefit from its extended lifespan of >1000 cycles, a worthwhile investment.

What's in the box:

  • Camplex 3' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
