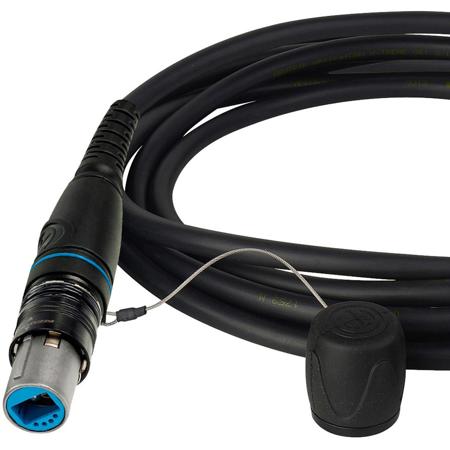

Camplex 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOCSMPT0010 MFR: HF-OCSMPT-0010
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 10' opticalCON DUO fiber optic cable.
  • Experience superior connectivity using this SMPTE 311 singlemode fiber optic cable.
  • Built for durability, this Neutrik opticalCon DUO cable withstands over 1000 cycles.
  • Enjoy broad compatibility; this 9um singlemode fiber cable works with various systems.
  • This Camplex fiber cable features a polyurethane jacket and aramid yarn for strength.
  • Rated CMR, this flame-tested fiber optic cable provides a safe, high-performance link.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    10' / 3.05m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < .45 dB/km at 1310/1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

Bring professional-grade performance to your audio and video setup with the 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable. This high-quality, durable cable is designed by Camplex, a trusted name in the industry, and is compliant with SMPTE 311 standards, ensuring reliable and superior data transmission.

This sturdy and flexible cable is designed for optical fiber communication, transmitting data, voice, and video signals over long distances. It's ideal for use in a variety of professional applications, including broadcasting, telecommunications, and CCTV surveillance.

The opticalCON DUO cable is factory-terminated and machine-polished in a state-of-the-art Fiber Optic Lab, ensuring exceptionally low return loss and insertion loss. It features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination.

Constructed with 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper power conductors, this cable also boasts an overall copper braided shield and stainless steel strength member. Please note, this cable is not compatible with the SMPTE 304M standard.

Designed for both indoor and outdoor use, the opticalCON DUO cable is equipped with lockable and waterproof metal caps and rubber guards, making it suitable for harsh environments. The ergonomic cable strain relief enhances cable protection and water resistance for long-term use, while the color-coding options allow for custom-built coding.

This cable is tested to GR-326-CORE end face standards and features a reliable push-pull locking mechanism. It's easy to clean and requires no tools, making it a practical choice for professional use. Whether you're setting up for digital audio and video, digital signage, data and networking, or lighting control, this cable delivers reliable, high-quality performance.

Camplex 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable for professional audio and video setup
  • Compliant with SMPTE 311 standards for reliable data, voice, and video signal transmission
  • Factory-terminated and machine-polished in a state-of-the-art Fiber Optic Lab for low return loss and insertion loss
  • Ruggedized connector body with common LC contacts and mechanical shutter system for end-face contamination protection
  • Equipped with lockable and waterproof metal caps and rubber guards, suitable for indoor and outdoor use
  • Tested to GR-326-CORE end face standards with a reliable push-pull locking mechanism for enhanced durability and ease of use

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 10' opticalCON DUO fiber optic cable.
  • Experience superior connectivity using this SMPTE 311 singlemode fiber optic cable.
  • Built for durability, this Neutrik opticalCon DUO cable withstands over 1000 cycles.
  • Enjoy broad compatibility; this 9um singlemode fiber cable works with various systems.
  • This Camplex fiber cable features a polyurethane jacket and aramid yarn for strength.
  • Rated CMR, this flame-tested fiber optic cable provides a safe, high-performance link.

What's in the box:

  • Camplex 10' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
