Camplex 65' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

Where professional broadcast and commercial AV applications demand high-quality, ruggedized equipment, the 65' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable stands out. This state-of-the-art cable, factory terminated and machine polished in the COCA Fiber Optic Lab, is designed for robust performance in both indoor and outdoor settings.

The opticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Outside Broadcast Cable is specifically engineered for ruggedized applications and field deployment. Its machine polishing processes ensure exceptionally low return loss and insertion loss, making it a reliable choice for demanding AV operations.

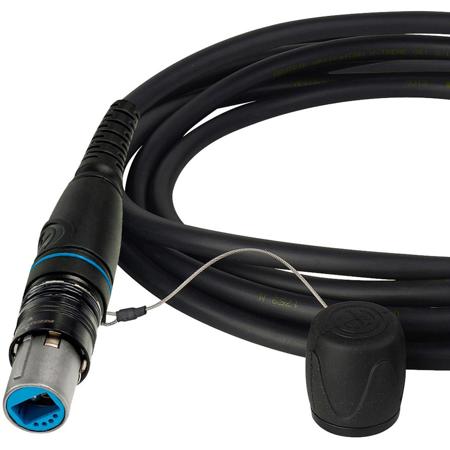

The cable features a ruggedized connector body with common LC contacts and a mechanical shutter system, providing superior protection against end-face contamination. It is constructed with SMPTE cable that includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper power conductors. An overall copper braided shield and stainless steel strength member further enhance its durability.

Please note, this cable is not compatible with the SMPTE 304M standard. However, it is suitable for indoor (studio) camera links considering specific conditions according to IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage.

The opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable is assembled using the Neutrik opticalCON ADVANCED system, which adds lockable and waterproof metal caps, rubber guards, and color-coding options for custom-built coding. This makes it particularly suitable for outdoor applications where robustness and water resistance are critical.

Key features of this cable include its interferometrically tested assemblies to GR-326-CORE end face standards, tactical tight buffered PUR Cable, optical shutter mechanism for added protection, and a reliable push-pull locking mechanism. It also boasts a heavy-duty tactical reel with side reel flange (TR version only), and an all-metal housing for the cable connector with heavy-duty cable retention.

This cable is easy to clean and requires no tools, making it a practical choice for applications such as digital audio & video, digital signage, data & networking, lighting control, and deployable, staging, and harsh environments. It is also compatible with various JVC and SONY models.

In conclusion, the 65' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable is a high-performance, ruggedized solution for professional broadcast and commercial AV applications, offering exceptional quality, durability, and versatility.
