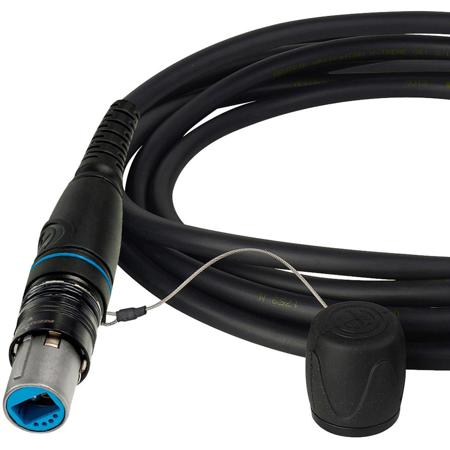

Camplex 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOCSMPT0164 MFR: HF-OCSMPT-0164
Earn VIP Reward Points

Key Features

  • Experience reliable connectivity with this 164' opticalCON DUO fiber optic cable.
  • Ensure optimal performance with durable SMPTE 311 singlemode fiber optic cable.
  • This Ethernet cable supports high bandwidth, perfect for demanding data applications.
  • Enjoy robust durability; this cable is built to withstand over 1000 mating cycles.
  • Benefit from its wide operating temperature range, from -13 to 167 degrees F.
  • Trust in its tested CMR rating and UL1666 flame testing for enhanced safety.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    164' / 49.99m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < .45 dB/km at 1310/1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

The 164' opticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Outside Broadcast Cable is a high-quality, factory-terminated product designed for professional broadcast AV applications. Manufactured in a state-of-the-art Fiber Optic Lab, this cable is machine polished to ensure exceptionally low return loss and insertion loss, enhancing the performance and reliability of your equipment.

This SMPTE 311M cable is specifically engineered for ruggedized applications and field deployment, making it ideal for both indoor studio camera links and outdoor applications. It features a robust connector body, common LC contacts, and a mechanical shutter system that shields against end-face contamination, ensuring the longevity and durability of the product.

The cable is composed of 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper power conductors. It also includes an overall copper braided shield and a stainless steel strength member for added protection and durability. Please note that this cable is not compatible with the SMPTE 304M standard.

The opticalCON DUO cable is assembled using the advanced Neutrik opticalCON system, which enhances the original opticalCON by adding lockable and waterproof metal caps and rubber guards. This makes it particularly suitable for outdoor applications where weather resistance is critical. The cable also features an ergonomic strain relief design that improves cable protection and water resistance for long-term use.

This cable system offers excellent dust and dirt protection due to its automatic sealing shutter with a silicone gasket. It also features a reliable push-pull locking mechanism, making it easy to connect and disconnect without the need for tools.

The 164' opticalCON DUO cable is ideal for a variety of applications, including digital audio and video, digital signage, data and networking, and lighting control. It is also suitable for deployable, staging, and harsh environments. This cable is compatible with a range of equipment, including JVC FS-790, FS-CABHYB100, FS-CABHYB200, FS-CABHYB500, SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70, and SONY CCFN-25, CCFN-50, CCFN-100.

In conclusion, the 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable offers a robust, reliable, and high-performance solution for your professional broadcast AV needs.

Camplex 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality, factory-terminated opticalCON DUO SMPTE 311M Singlemode Hybrid Cable for professional broadcast AV applications
  • Ruggedized design with a robust connector body and mechanical shutter system, ideal for field deployment and outdoor use
  • Features 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 stranded copper power conductors for superior performance
  • Assembled with the advanced Neutrik opticalCON system, offering lockable and waterproof metal caps and rubber guards
  • Excellent dust and dirt protection with automatic sealing shutter and silicone gasket, ensuring longevity and durability
  • Versatile application range, from digital audio and video to data networking and lighting control, suitable for both indoor and outdoor environments

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience reliable connectivity with this 164' opticalCON DUO fiber optic cable.
  • Ensure optimal performance with durable SMPTE 311 singlemode fiber optic cable.
  • This Ethernet cable supports high bandwidth, perfect for demanding data applications.
  • Enjoy robust durability; this cable is built to withstand over 1000 mating cycles.
  • Benefit from its wide operating temperature range, from -13 to 167 degrees F.
  • Trust in its tested CMR rating and UL1666 flame testing for enhanced safety.

What's in the box:

  • Camplex 164' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
