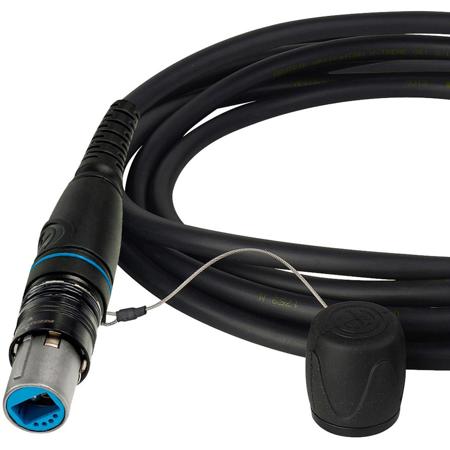

Camplex 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOCSMPT1000 MFR: HF-OCSMPT-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1000' opticalCON DUO fiber optic cable.
  • Experience superior connectivity with Neutrik opticalCON DUO connectors on both ends.
  • Built for durability: Features a polyurethane jacket and stainless steel strength members.
  • Singlemode fiber optic cable supports high-bandwidth applications with minimal loss.
  • Ideal for broadcast, ensuring robust performance with SMPTE 311M compliance.
  • This 9um singlemode fiber cable offers a long life, tested for over 1000 cycles.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$699.99

4 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    1000' / 304.80m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < .45 dB/km at 1310/1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable

Discover the power and reliability of the 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable. This high-quality cable is expertly crafted by Camplex, a trusted name in the industry, and is designed to meet the demanding needs of professional audio and video applications.

This durable and flexible cable is compliant with SMPTE 311 standards, making it ideal for long distance transmission of digital audio and video signals. It's a popular choice for film and television production, live events, and other professional settings where superior, low-latency signal transmission is a must.

The opticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Outside Broadcast Cable is factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. It's constructed with an outside broadcast SMPTE 311M cable, rated for rugged applications and field deployment in commercial and professional broadcast AV applications.

The cable features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination. It's built with 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper power conductors, an overall copper braided shield, and a stainless steel strength member.

The opticalCON ADVANCED system enhances the cable's robustness, adding lockable and waterproof metal caps, rubber guards, and an ergonomically designed cable strain relief for improved cable protection and water resistance. The color-coding options allow for custom-built coding.

This long-lasting cable is not compatible with the SMPTE 304M standard but is suitable for indoor (studio) camera links considering specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1, and rated voltage.

The opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable is perfect for digital audio and video, digital signage, data and networking, lighting control, and deployable, staging, and harsh environment applications. It's compatible with JVC FS-790, FS-CABHYB100, FS-CABHYB200, FS-CABHYB500, SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70, SONY CCFN-25, CCFN-50, and CCFN-100.

Experience the difference of a reliable, high-quality connection with the 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable.

Camplex 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable for professional audio and video applications
  • Compliant with SMPTE 311 standards, ideal for long distance digital signal transmission
  • Ruggedized connector body and mechanical shutter system for end-face contamination protection
  • Enhanced robustness with lockable and waterproof metal caps, rubber guards, and ergonomic cable strain relief
  • Suitable for indoor (studio) camera links and specific conditions according to IEC 60664-1
  • Compatible with various JVC and SONY models, perfect for digital signage, data networking, and harsh environment applications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1000' opticalCON DUO fiber optic cable.
  • Experience superior connectivity with Neutrik opticalCON DUO connectors on both ends.
  • Built for durability: Features a polyurethane jacket and stainless steel strength members.
  • Singlemode fiber optic cable supports high-bandwidth applications with minimal loss.
  • Ideal for broadcast, ensuring robust performance with SMPTE 311M compliance.
  • This 9um singlemode fiber cable offers a long life, tested for over 1000 cycles.

What's in the box:

  • Camplex 1000' opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
