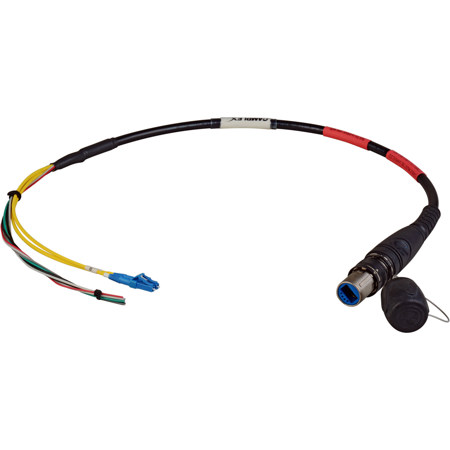

Camplex 3' opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable with Tinned Copper

SKU: CPOCSMPTEBO3 MFR: HF-OCSMPTE-BO-3
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 3' opticalCON DUO to LC Fiber Optic Cable.
  • Durable construction with a polyurethane jacket for reliable, long-term use.
  • Features Neutrik OpticalCon DUO connectors with nickel finish for secure connections.
  • This SMPTE cable supports single-mode fiber, ideal for high-bandwidth applications.
  • Withstands harsh conditions: -13 to 167°F operating temperature for versatility.
  • Aramid yarn & stainless steel provide strength, offering a 500N cable retention force.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 3' opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable w/ Tinned Copper Specifications

  • Connector

    Neutrik OpticalCon DUO, NO2SX
    OB SMPTE 311M

  • Outer Jacket

    Polyurethane

  • Diameter

    0.3" (9.2mm)

  • Color

    Black

  • Connector Body

    Nickel Finish

  • Cable Retention Force

    500N

  • Cycles

    Lifetime >1000

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -13 - 167 Degree F (-25 - +75 Degree C)

  • Optical Type

    LC-UPC (Straight Polish)

  • Fiber Type

    9m Single-mode Fiber

  • Cable Loss

    < 0.45dB/km @ 1310/1550nm

  • Optical Back Reflection

    -55dB/-45dB RL (typical/max)

  • Conductors

    24 AWG Data Conductors, 16 AWG or 17 AWG (2x20AWG) Auxiliary Conductors

  • Certification

    CMR rated, UL1666 Flame Tested, Indoor / Outdoor Cable (9.125mm OD)

  • Strength

    Aramid Yarn and 302 Stainless Steel Strength Members

  • Cable Length

    3' (0.9m)

About Camplex 3' opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable w/ Tinned Copper

If you're seeking a robust and efficient solution for your professional broadcast needs, the Camplex HF-OCSMPTE-BO assembly stands out as a premier choice. This 3-foot opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable is engineered with precision to ensure high-quality, reliable connections in the demanding environments of outside broadcasting and field deployment.

Crafted with two channels of hybrid SMPTE 311M singlemode fiber, this cable is equipped with opticalCON DUO connectors on one end and Duplex LC connectors on the other, both featuring tinned copper construction. This design significantly enhances signal integrity and minimizes signal loss, ensuring that your audio and video transmissions are crystal clear.

The cable's tactical tight buffered PUR construction not only provides flexibility but also guarantees durability, capable of withstanding the rigors of commercial use. The machine-polished connectors are meticulously refined to deliver exceptionally low return loss and insertion loss, which translates to uninterrupted and high-fidelity signal transmission.

This assembly is composed of two singlemode fibers, two 24 AWG, and two 16 AWG stranded copper power conductors, all protected by an overall copper braided shield. The robust polyurethane jacket adds an extra layer of protection against the elements, making it a reliable choice for outdoor applications.

For those with specific requirements, APC polishing types are available upon request to cater to your unique needs. The Camplex HF-OCSMPTE-BO assembly is designed to accommodate standard optical LC-Duplex connectors, ensuring compatibility with a wide range of professional equipment.

Whether you're connecting cameras, switchers, or any other fiber optic-enabled devices, this high-quality, flexible, and affordable fiber optic cable from Camplex, available at Adorama, is an essential component for your audio and video setups.

Camplex 3' opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable w/ Tinned Copper Features

  • Interfermetrically tested to GR-326-CORE endface standards
  • Exceptional low return loss and insertion loss
  • Ruggedized connector body, common LC contacts
  • Mechanical shutter system shields against endface contamination
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection <-55dB
  • Can be Used for Lighting Control
  • Deployable, Staging, and Harsh Environment
  • Telecast CopperHead and SHED-HDX
  • MultiDyne Silverback
  • CAMLINX systems

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 3' opticalCON DUO to LC Fiber Optic Cable.
  • Durable construction with a polyurethane jacket for reliable, long-term use.
  • Features Neutrik OpticalCon DUO connectors with nickel finish for secure connections.
  • This SMPTE cable supports single-mode fiber, ideal for high-bandwidth applications.
  • Withstands harsh conditions: -13 to 167°F operating temperature for versatility.
  • Aramid yarn & stainless steel provide strength, offering a 500N cable retention force.

What's in the box:

  • 3' opticalCON DUO SMPTE to Duplex LC Fiber Optic Cable with Tinned Copper
  • Camplex 1 Year Limited Warranty
