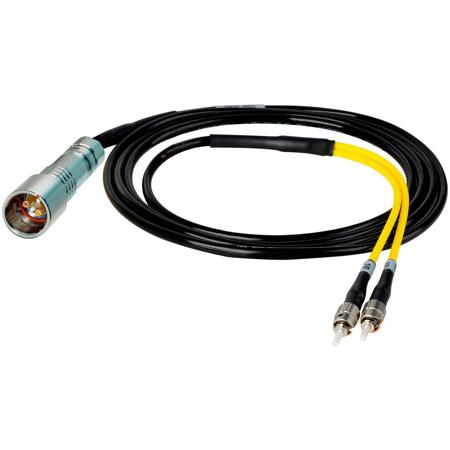

Camplex 25' LEMO PUW to Duplex ST In-Line SMPTE Hybrid Fiber Optic Breakout Cable

Where professional-grade connectivity is paramount, the 25' LEMO PUW to Duplex ST In-Line SMPTE Hybrid Fiber Optic Breakout Cable by Camplex stands out as a durable, high-quality, and reliable choice for broadcast professionals. This versatile cable is expertly designed to simplify the process of breaking out SMPTE 311M to separate optical and electrical connections, ensuring a seamless integration into SMPTE rack panels, splice trays, adapters, and wall boxes.

Crafted with precision, the breakout cable features robust 3K.93C connectors that transition smoothly to a choice of duplex ST or LC optical connectors. This configuration is ideal for those seeking a non-powered solution (with powered versions also available) to connect their HDTV broadcast cameras or other devices requiring SMPTE standard connections.

The cable is assembled with premium Belden super flexible U.S SMPTE standard studio broadcast cable, which integrates a power line for TV camera, control line, and optical fiber for video and audio transmission. This composite structure is meticulously standardized by SMPTE for HDTV broadcast camera use and includes two single-mode optical fibers, four 20 AWG, and two 24 AWG tinned copper conductors, all cabled around a steel strength element and shielded with an overall tinned copper braid.

Designed for both studio environments and light to medium field use, the cable's flexible PVC blend jacket ensures ease of handling and deployment. The breakout series is UPC machine polished to meet or exceed all SMPTE 304M/311M standards, guaranteeing low insertion and return loss with documentation provided for assurance.

Each cable is assembled with premium SMPTE cable and Lemo and Senko connectors, with terminations performed by LEMO-trained technicians. The electrical assemblies are 100% tested for continuity and shorts, while the fiber optic assemblies are 100% tested for attenuation and back reflection, ensuring SMPTE 311M and 304M compliance.

Additional features include stainless steel assemblies, protective rubber dust caps, and the capability to transport data rates from 19.4 Mbps to 3 Gbps. The machine-polished fiber contacts further enhance performance, making this cable a passive breakout solution designed to eliminate the need for costly Hybrid Fiber cables and facilitate straightforward integration using riser-rated duplex cables.

Please note that some Camera/CCU setups may require continuity between the copper conductors found within a SMPTE 304 connector to remain intact. For such scenarios, it is recommended to contact a sales representative for clarification and assistance to ensure compatibility and optimal performance.
