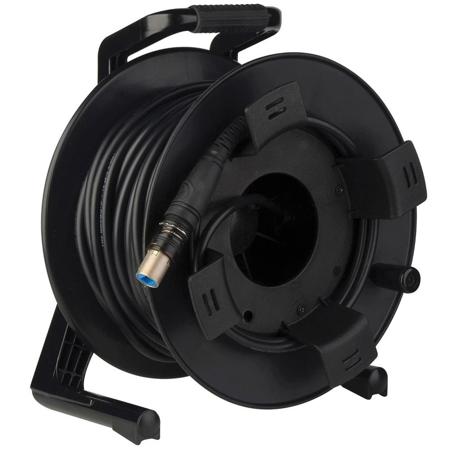

Camplex SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 1000'

If you're in the professional broadcast industry and need a durable, high-quality solution for transmitting video and audio signals over long distances, the SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel is your ideal choice. This 1000-foot cable reel is specifically designed for rugged outdoor use and is perfect for outside broadcasting in the film and television industry.

This product features a robust OpticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid connection, ensuring reliable and efficient signal transmission. The cable assemblies are factory terminated and machine polished in a state-of-the-art Fiber Optic Lab, guaranteeing superior performance and longevity.

Constructed with SMPTE 311M cable rated for rugged applications, this cable reel is designed to withstand the rigors of field deployment in commercial and professional broadcast AV applications. The OpticalCON assemblies are interferometrically tested to GR-326-CORE endface standards, ensuring low return loss and insertion loss for optimal signal quality.

The cable features a ruggedized connector body with common LC contacts and a mechanical shutter system, providing protection against endface contamination. It includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member for enhanced durability and performance.

Please note that this cable is not compatible with the SMPTE 304M standard. However, it is suitable for indoor (studio) camera links under specific conditions according to IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage.

The cables are exclusively assembled using the Neutrik OpticalCON ADVANCED system, which enhances the original OpticalCON by adding lockable and waterproof metal caps as well as rubber guards. This makes it even more robust and suitable for outdoor applications. The ergonomic cable strain relief improves cable protection and water resistance for long-term use, and the color-coding options allow for custom-built coding.

In summary, the SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel is a versatile, reliable, and professional choice for any broadcasting needs.
