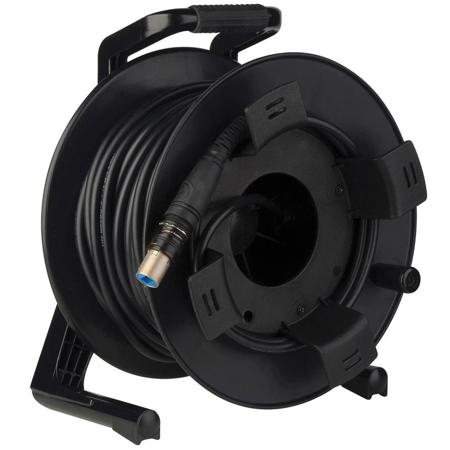

Camplex SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 164'

After meticulous manufacturing and testing, the SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 164', stands as a testament to high-quality, professional-grade broadcasting equipment. This robust cable reel, designed for outside broadcasting, is a crucial tool for the film and television industry, facilitating the transmission of video and audio signals over extended distances.

Constructed with a LEMO FUW connector on one end and an OpticalCON connector on the other, this cable reel offers seamless connectivity to a wide range of cameras, audio equipment, and other broadcasting devices. The cable reel is crafted from durable materials, ensuring it can withstand the demands of outdoor use and the rigors of field deployment in commercial and professional broadcast AV applications.

The OpticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Outside Broadcast Cable is factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. This process guarantees exceptionally low return loss and insertion loss, enhancing the overall performance of the cable.

The OpticalCON assemblies are interferometrically tested to GR-326-CORE endface standards, ensuring the highest quality and reliability. The cable features a ruggedized connector body, common LC contacts, and a mechanical shutter system, providing protection against endface contamination.

The SMPTE cable includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member. Please note, this cable is not compatible with the SMPTE 304M standard.

Designed for both indoor (studio) and outdoor use, the cable reel is assembled exclusively using the Neutrik OpticalCON ADVANCED system. This system enhances the original OpticalCON by adding lockable and waterproof metal caps, rubber guards, and an ergonomic cable strain relief. These features improve cable protection, water resistance, and long-term use. The color-coding options also allow for custom-built coding, adding to the versatility and user-friendly nature of this professional-grade cable reel.
