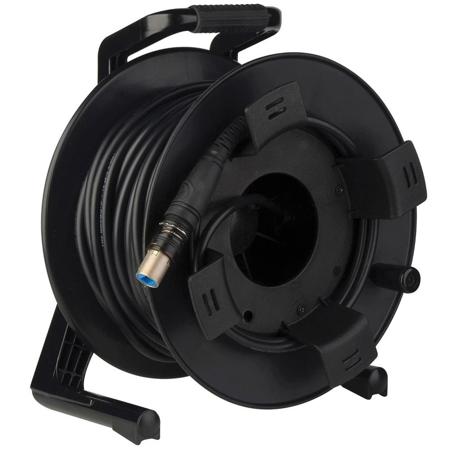

Camplex SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 250'

With the SMPTE 311M OpticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Outside Broadcast Cable, you can expect superior performance and durability. This high-quality cable comes with a heavy-duty tactical reel, designed for the rigors of outside broadcasting and field deployment in commercial and professional AV applications.

The OpticalCON assemblies are expertly factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. These assemblies are constructed with SMPTE 311M cable, specifically rated for ruggedized applications, ensuring reliable performance even in challenging conditions.

Our OpticalCON assemblies undergo interferometric testing to GR-326-CORE endface standards, ensuring the highest quality and performance. The machine polishing process results in exceptionally low return loss and insertion loss, enhancing the efficiency of your broadcast operations.

The OpticalCON features a robust connector body, common LC contacts, and a mechanical shutter system. This innovative design shields against endface contamination, further improving the longevity and reliability of the cable.

This SMPTE cable is equipped with 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors. It also features an overall copper braided shield and a stainless steel strength member for added durability. Please note that this cable is not compatible with the SMPTE 304M standard.

This cable is suitable for indoor (studio) camera links, considering specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1, and rated voltage.

The cables are exclusively assembled using the Neutrik OpticalCON ADVANCED system. This advanced system enhances the original OpticalCON by adding lockable and waterproof metal caps as well as rubber guards, making it ideal for outdoor applications.

The ergonomically designed cable strain relief improves the cable protection and water resistance for long-term use. Additionally, the color-coding options allow for custom-built coding, providing a practical solution for managing your broadcast equipment.

In summary, the SMPTE 311M OpticalCON DUO to LEMO FUW Singlemode Fiber Optic Outside Broadcast Cable Reel offers a robust, reliable, and high-performing solution for your professional broadcasting needs.
