Camplex SMPTE 311 SM OpticalCON DUO to LEMO PUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 250'

If you're in the market for a reliable and robust fiber optic solution for your outside broadcast needs, the SMPTE 311 SM OpticalCON DUO to LEMO PUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 250' is an exceptional choice. This high-quality cable assembly features the OpticalCON DUO NO2SX to LEMO FUW 304M connectors, expertly terminated and machine polished in a state-of-the-art Fiber Optic Lab to ensure peak performance.

Crafted to meet the rigorous demands of commercial and professional broadcast AV applications, this singlemode hybrid cable is built with the durability required for field deployment. The SMPTE 311M standard cable is specifically rated for ruggedized applications, ensuring that it can withstand the challenges of outdoor environments.

The precision of the OpticalCON assemblies is confirmed through interferometric testing to GR-326-CORE endface standards, which guarantees that each connector meets the highest quality for signal integrity. The machine polishing process employed in the creation of these assemblies results in exceptionally low return loss and insertion loss, which is critical for maintaining signal clarity over long distances.

The OpticalCON connector boasts a ruggedized body designed to endure the rigors of outdoor use, with common LC contacts and a mechanical shutter system that protects against endface contamination. The SMPTE cable itself includes 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member for additional durability.

It's important to note that this cable is not compatible with the SMPTE 304M standard, but it is perfectly suited for indoor studio camera links, adhering to specific conditions according to IEC 60664-1, such as pollution degree 1, overvoltage category 1, and rated voltage.

The cable assembly is exclusively constructed using the Neutrik OpticalCON ADVANCED system, which enhances the original OpticalCON by adding lockable and waterproof metal caps, as well as rubber guards, making it even more suited for outdoor applications. The ergonomic cable strain relief is designed to improve cable protection and water resistance for long-term use, while the color-coding options facilitate custom-built coding for easy identification.

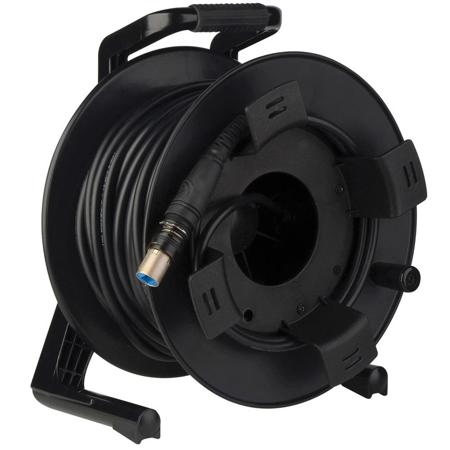

Housed on a heavy-duty tactical cable reel, this 250-foot fiber optic cable is not only easy to manage but also ensures a tidy and secure setup for any broadcast environment. Whether you're covering live events, conducting field productions, or setting up a studio, this SMPTE 311 SM OpticalCON DUO to LEMO PUW Singlemode Fiber Optic Cable provides the reliability and quality you need for flawless audio and video transmission.
