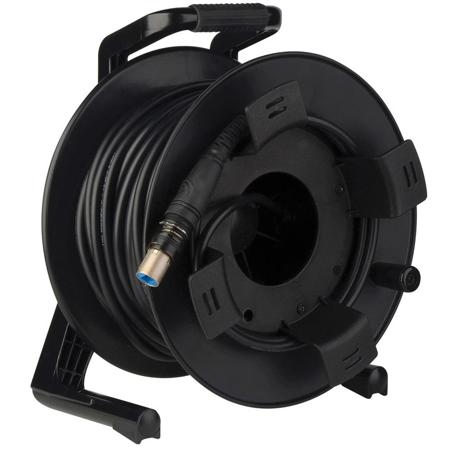

Camplex SMPTE 311 SM OpticalCON DUO to LEMO PUW Singlemode Fiber Optic Outside Broadcast Cable Reel, 328'

The SMPTE 311 SM OpticalCON DUO to LEMO PUW Singlemode Fiber Optic Outside Broadcast Cable Reel, measuring 328 feet, is a robust and reliable solution for professional broadcasting needs. This high-quality, durable cable reel is designed for outdoor use, making it an ideal choice for field deployment in commercial and professional AV applications.

Constructed with a heavy-duty tactical cable reel, this product features OpticalCON assemblies that are factory terminated and machine polished in our state-of-the-art Fiber Optic Lab. These assemblies are crafted with SMPTE 311M cable, specifically rated for rugged applications, ensuring reliable performance even in challenging outdoor environments.

Our OpticalCON assemblies are interferometrically tested to meet GR-326-CORE endface standards, ensuring low return loss and insertion loss. This is achieved through our precision machine polishing processes, which enhance signal transmission quality.

The OpticalCON DUO NO2SX to LEMO FUW 304M Singlemode Hybrid Cable features a ruggedized connector body, common LC contacts, and a mechanical shutter system. This unique design helps to shield against endface contamination, preserving the integrity of your audio and video signals.

This SMPTE cable is equipped with 2 single-mode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors. It also boasts an overall copper braided shield and a stainless steel strength member for added durability and longevity.

Please note, this cable is not compatible with the SMPTE 304M standard. However, it is suitable for indoor (studio) camera links, considering specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1, and rated voltage.

The cables are exclusively assembled using the Neutrik OpticalCON ADVANCED system. This system enhances the original OpticalCON by adding lockable and waterproof metal caps, as well as rubber guards, making it even more robust and suitable for outdoor applications. The ergonomic cable strain relief improves cable protection and water resistance for long-term use, while the color-coding options allow for custom-built coding.
