Digital Audio & Video
Digital Signage
Data & Networking
Lighting Control
Deployable, Staging, and Harsh Environment
JVC FS-790, FS-CABHYB100, FS-CABHYB200, FS-CABHYB500
SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70
SONY CCFN-25, CCFN-50, CCFN-100
OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter, black
Aramid Yarn and 302 stainless steel strength members
Neutrik OpticalCON DUO NO2SX, nickel finish
Neutrik OpticalCON DUO NO2SX, nickel finish
500 N
Greater than 1000 cycles
Less than 45 N
LC-UPC straight polish
9 um singlemode fiber
Less than .45 dB/km at 1310/1550 nm
-55 dB / -45 dB RL (typical/max)
24 AWG
16 AWG or 17 AWG
CMR rated, UL1666 Flame Tested
-13 to 167 Degree F (-25 to 75 Degree C)
328' (100m)

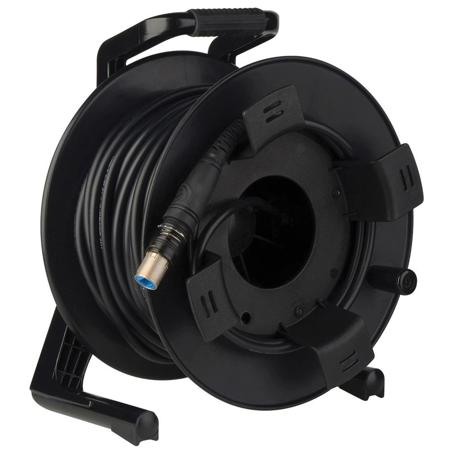

Enhance your professional broadcasting and AV applications with the OpticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Cable, complete with a Tactical Reel. Expertly crafted in our state-of-the-art Fiber Optic Lab, these OpticalCON assemblies are COCA factory terminated and machine polished, ensuring superior quality and performance.
Designed for ruggedized applications, this SMPTE 311M cable is ideally suited for outdoor broadcasts and field deployments. Its robust construction, featuring 2 singlemode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member, ensures durability and reliability in demanding environments.
The OpticalCON DUO cable stands out with its ruggedized connector body, common LC contacts, and a mechanical shutter system. This unique design effectively shields against endface contamination, enhancing the longevity and performance of the cable. Please note, this cable is not compatible with the SMPTE 304M standard.
This cable is also suitable for indoor (studio) camera links, provided specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1, and rated voltage are met.
Exclusively assembled using the Neutrik OpticalCON ADVANCED system, this cable offers additional benefits. It features lockable and waterproof metal caps as well as rubber guards, making it an excellent choice for outdoor applications. The ergonomic cable strain relief enhances cable protection and water resistance for long-term use. Plus, with color-coding options, you can enjoy custom-built coding for easy identification and organization.
In summary, the OpticalCON DUO SMPTE 311M Singlemode Fiber Optic Outside Broadcast Cable Reel, 328' is a high-quality, durable solution for both indoor and outdoor professional broadcasting and AV applications.
