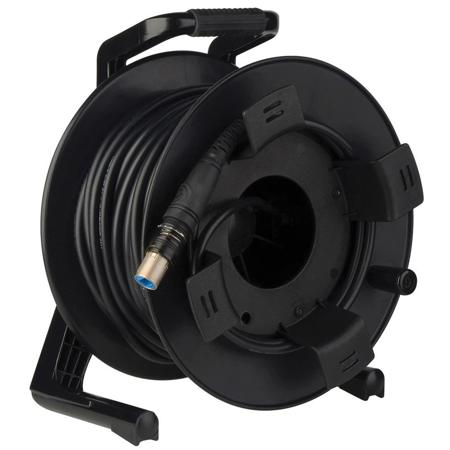

Camplex OpticalCON DUO SMPTE 311M Singlemode Fiber Optic Outside Broadcast Cable Reel, 500'

OpticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Cable with Tactical Reel. OpticalCON assemblies are COCA factory terminated and machine polished in the state of the art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with outside broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications. Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination. SMPTE cable with 2 singLEMOde fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper conductors, overall copper braided shield and stainless steel strength member. This cable is not compatible with the SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage. The cables are exclusively assembled using the Neutrik OpticalCON ADVANCED system. OpticalCON ADVANCED further enhances the original OpticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.
