Camplex 1000' 4-CH LC Singlemode Fiber Tactical Snake Cable Reel with Sleeve Specifications

  • Length

    1000' / 304.80m

  • Mounting

    Hose clip/cable tie

  • Number of Fibers

    4

  • Connector Type

    LC

  • Insertion Loss

    <0.5 dB

  • Return Loss

    >-55 dB

  • Temperature Range

    -40 to 185 deg. F / -40 to 85 deg. C

  • Fan-out kit retention

    >15 lbs (>66N)

  • Feeder cable retention

    100 lbs (450N)

  • Applications

    Broadcast
    Enterprise
    Telecom
    Datacenter
    LAN

  • Dimensions

    Reel: 11.5 x 9.0 x 15.0" / 29.21 x 22.86 x 38.10cm

  • Weight

    Reel: 27.0lbs / 12.25kg

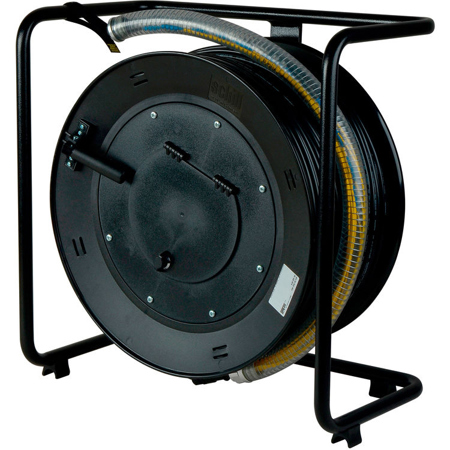

About Camplex 1000' 4-CH LC Singlemode Fiber Tactical Snake Cable Reel with Sleeve

The Camplex ProTac 4-Channel LC singlemode tactical snake is a special ruggedized version of their popular fiber optic snakes featuring a translucent, crush resistant, reusable protective tube for pulling and field deployment. The ProTac series offers maximum critical protection where it's needed most, at the Connector and Fan-Out area. Fan-outs are safely housed in the ProTac cover and the cover has a convenient pulling eye. Designed for maximum protection, the ProTac fiber deployment reel system is IP68 rated with the pulling sock is installed. The pulling eye and tactical sleeve protect fiber and connectors by transferring the tensile or pulling force to the cable structure.

Featuring ruggedized multi-channel fiber optic cables, ProTac systems withstand multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables feature internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All assemblies multi-stage machine polished and tested for <.55db RL with test results for each channel supplied with each cable. Built in-house at their state-of-the-art LEMO trained fiber shop with full repair services available.

Upgrade Now! Add the ProTac ruggedized fan-out kit to your existing TAC reels and protect your expensive fiber investments with this cost effective and time saving solution from Camplex. Camplex products are assembled and tested in the USA. Camplex products are constructed with the finest quality fiber connectors and cable.

Camplex 1000' 4-CH LC Singlemode Fiber Tactical Snake Cable Reel with Sleeve Features

  • Built in our Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
  • Individual Channels Ruggedized with Techflex Protection & 24-Inch Fanout
  • Compact, round cable design for ease of transportation and deployment
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Light weight metal body construction
  • Small size diameter
  • Up to 12 x 2.00mm breakouts
  • IP68 rated
  • Meets & Exceeds MIL-PRF-85045 Specifications!

Key Features

  • Built in our Fiber Shop
  • Individual Channels Ruggedized
  • Compact, round cable design for ease of transportation and deployment
  • Crush-resistant and resilient
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Light weight metal body construction

What's in the box:

  • Camplex 1000' 4-Channel LC Singlemode Fiber Optic Tactical Snake Cable Reel with Protective Pulling Sleeve
  • Camplex 1 Year Limited Warranty
