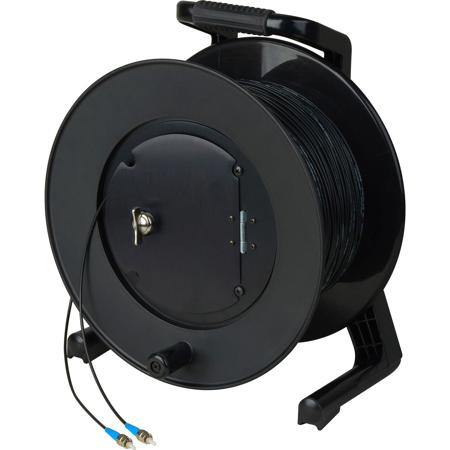

Camplex 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel

SKU: CPSMST1000 MFR: HF-TR1SM-ST-1000
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 1000' singlemode ST fiber optic cable reel.
  • Built for durability, the Camplex tactical cable reel withstands demanding use.
  • This 9/125um fiber optic cable supports 1310/1550 nm wavelengths for optimal signal.
  • Minimize signal loss; maximum cabled attenuation is 3.5/1.5 dB/km with this cable.
  • Use this fiber optic cable for broadcast, telecom, or harsh environment applications.
  • The Camplex cable reel conveniently holds up to 1000' of tactical fiber cable.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Camplex 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel Specifications

  • Industry Standard Designation

    Singlemode ITU-T G.652.A

  • Core/Cladding Diameter

    9/125um

  • Wavelength

    1310/1550 nm

  • Maximum Cabled Attenuation

    3.5/1.5 dB/km

  • Primary Coating Diameter

    500 um

  • Secondary Buffer Diameter

    900 um

  • Zero Dispersion Slope

    0.092 ps/nm2-km

  • Proof Test Level

    100 kpsi

  • Reel Diameter

    Hub: 6.5" / 16.51cm

  • Outside

    Hub: 12.5" / 31.75cm

  • Width

    Foot base: 10.6" / 26.92cm

  • Height

    14.3" / 36.32cm

  • Holds

    Holds 1500' / 457.21m, of 0.11" / 0.28cm O.D. Cable
    Holds 500' / 152.40m, of 0.21" / 0.53cm O.D. Cable
    Holds225' / 68.58m, of 0.37" / 0.94cm O.D. Cable
    Holds 125' / 38.10m, of 0.5" / 1.27cm O.D. Cable

About Camplex 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel

While designed with the rigors of military tactical deployment in mind, the 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel is an indispensable tool for broadcast and professional audio applications. This robust and lightweight cable is engineered to meet all outdoor tactical requirements, offering an outdoor-rated, crush and impact-resistant design that stands up to the harshest field conditions.

Unlike ordinary PVC jacket cables, this product boasts a tough Polyurethane Core-Locked design, providing superior protection and durability. It comes equipped with Senko ST and LC premium fiber connectors, ensuring optimal signal transmission for your audio and video needs.

Each assembly undergoes a rigorous machine polishing process and interferometer testing in accordance with industry standards, ensuring the highest quality and performance. To further guarantee customer satisfaction, all products are 100% tested and shipped with a comprehensive set of test documentation.

In addition to the standard Senko ST and LC connectors, SC, LC, and FC UPC and APC connectors are also available, providing flexibility and compatibility with a wide range of equipment. Custom lengths and configurations are always available, catering to your specific needs and ensuring the perfect fit for your setup.

In summary, the 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel is a rugged, reliable, and versatile solution for all your broadcast and professional audio applications.

Camplex 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel Features

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL less than -55dB and IL less than 0.25dB
  • Wide temperature range (typically -55½C to 85½C)
  • 500um primary acrylate buffer with 900um secondary hard elastomeric buffer (Ultra-Fox Plus)
  • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
  • Designed to withstand crush and impact after deployment
  • Strong, lightweight and extremely durable cable

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 1000' singlemode ST fiber optic cable reel.
  • Built for durability, the Camplex tactical cable reel withstands demanding use.
  • This 9/125um fiber optic cable supports 1310/1550 nm wavelengths for optimal signal.
  • Minimize signal loss; maximum cabled attenuation is 3.5/1.5 dB/km with this cable.
  • Use this fiber optic cable for broadcast, telecom, or harsh environment applications.
  • The Camplex cable reel conveniently holds up to 1000' of tactical fiber cable.

What's in the box:

  • Camplex 1000' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
