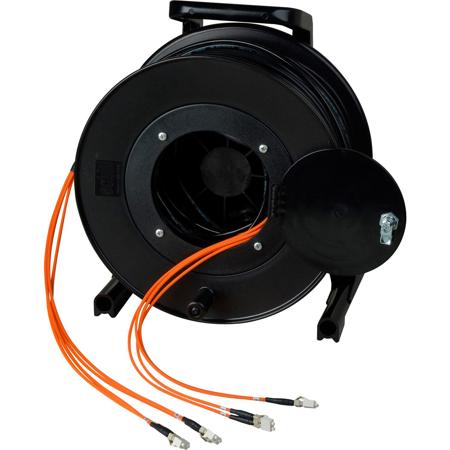

Camplex 500' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel, Orange

SKU: CPSTM10500 MFR: HF-TR12STM1-0500
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 500' fiber optic tactical snake cable reel.
  • Durable polyurethane jacket protects this tactical cable, even in harsh environments.
  • Experience high performance with low return loss (<-55 dB typical) on this fiber cable.
  • This 12-channel OM1 multimode fiber optic cable supports gigabit Ethernet up to 1969'.
  • Withstands 200 impacts, offering superior durability for demanding tactical applications.
  • Operates in extreme temperatures (-67 to 185°F) with this robust fiber optic cable reel.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Camplex 500' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange Specifications

  • Cable Type

    12-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94 cm) orange fanouts

  • Fiber Type

    OM1 62.5 um multimode

  • Connectors

    12x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2000 cycles

  • Return Loss

    < -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 185 deg. F / -70 to 85 deg. C

  • Length

    500' / 152.40m

About Camplex 500' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange

Take your broadcast and pro-audio applications to the next level with the 500' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel in vibrant Orange. This rugged and lightweight tactical fiber snake is specifically designed for multiple deployments in field production, making it an ideal choice for outside broadcasts, rental houses, and more.

Constructed with highly flexible tight-buffered tactical cables, this product boasts internal aramid strength members that provide exceptional crush resistance in high traffic areas when handled correctly. The polyurethane outer sheath is engineered to withstand crushing by both military tanks and Outside Broadcast vehicles, ensuring durability and longevity.

Each assembly is multi-stage machine polished and rigorously tested, guaranteeing superior performance. The cable reel is built in our Camplex Fiber Shop with OCC Multichannel Tactical Cable and robust Heavy Duty Connectors with Dust Caps. The individual channels are ruggedized with Orange Techflex Protection and a 36-Inch Fanout for added security and convenience.

The compact, round cable design facilitates easy transportation and deployment, making it suitable for use in adverse environments where reduced size and weight are crucial. The helically stranded cable core offers flexibility, deployment survivability, and exceptional mechanical protection for the optical fibers.

This fiber optic tactical snake cable reel has been tested and is currently in use in military data communications applications worldwide. It can be deployed outdoors directly on the ground in all terrains, including severe environments, making it suitable for outside broadcast, industrial, mining, and petrochemical environments.

The cable is crush-resistant and resilient, thanks to a thick layer of aramid strength members. It is also polyurethane jacketed for abrasion, cut, and chemical resistance. The fanouts are color-coded with Orange Techflex for added protection, and the cable features machine polished UPC Connectors, ensuring minimal back reflection.

This product meets and exceeds MIL-PRF-85045 specifications, making it a reliable choice for commercial, broadcast, and military applications. The Camplex Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door. Each reel is carefully selected to ensure proper support and the critical bend radius required by fiber optic cables.

For optimal storage, we recommend tactical fiber optic cables over 25 feet be stored on a cable reel. Custom lengths and configurations are always available to meet your specific needs. Experience the difference in quality and performance with our 500' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel.

Camplex 500' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange Features

  • Rugged and lightweight 500' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel, perfect for broadcast and pro-audio applications
  • Highly flexible, crush-resistant design with internal aramid strength members, suitable for high traffic areas
  • Polyurethane jacketed for superior abrasion, cut, and chemical resistance, ideal for outdoor use in all terrains and severe environments
  • Meets and exceeds MIL-PRF-85045 specifications, ensuring reliability for commercial, broadcast, and military applications
  • Includes broadcast fiber optic cable reels with connector protection cavity and hinged latching door for secure storage and transport
  • Customizable lengths and configurations available to meet specific needs, offering flexibility and convenience

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 500' fiber optic tactical snake cable reel.
  • Durable polyurethane jacket protects this tactical cable, even in harsh environments.
  • Experience high performance with low return loss (<-55 dB typical) on this fiber cable.
  • This 12-channel OM1 multimode fiber optic cable supports gigabit Ethernet up to 1969'.
  • Withstands 200 impacts, offering superior durability for demanding tactical applications.
  • Operates in extreme temperatures (-67 to 185°F) with this robust fiber optic cable reel.

What's in the box:

  • Camplex 500' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel
  • Camplex 1 Year Limited Warranty
