Camplex 1250' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel, Orange

SKU: CPSTM11250 MFR: HF-TR12STM1-1250
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1250' fiber optic tactical snake cable reel.
  • Durable polyurethane jacket protects the fiber optic cable in demanding environments.
  • Features 12 ST connectors with machine polished UPC for optimal signal integrity.
  • OM1 multimode fiber supports Gigabit Ethernet up to 1969' at 1310 nm wavelength.
  • High crush resistance (440 N/cm) ensures longevity for your tactical cable setup.
  • Wide operating temperature range (-67 to 185°F) for reliable use in any condition.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Camplex 1250' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange Specifications

  • Cable Type

    12-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94 cm) orange fanouts

  • Fiber Type

    OM1 62.5 um multimode

  • Connectors

    12x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2000 cycles

  • Return Loss

    < -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 185 deg. F / -70 to 85 deg. C

  • Length

    1250' / 381.00m

About Camplex 1250' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange

You can rely on the robust and lightweight 1250' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel in vibrant orange. This high-quality fiber optic cable is specifically designed for demanding broadcast and pro-audio applications.

Constructed with a multi-channel design, this tactical fiber optic cable is perfect for multiple deployments in field production, outside broadcasting, and rental houses. Its high flexibility is due to the tight-buffered tactical cables, which also feature internal aramid strength members for exceptional crush resistance in high traffic areas.

The polyurethane outer sheath is not only designed to withstand crushing by military tanks and outside broadcast vehicles, but it also offers superior abrasion, cut, and chemical resistance. This makes it suitable for use in harsh environments, including industrial, mining, and petrochemical settings.

The cable's compact, round design ensures easy transportation and deployment. Its helically stranded cable core provides flexibility, deployment survivability, and outstanding mechanical protection for the optical fibers.

This fiber optic cable meets and exceeds MIL-PRF-85045 specifications, testifying to its durability and reliability. The fanouts are color-coded with orange techflex for added protection, and the cable features UPC connectors that are machine polished to minimize back reflection.

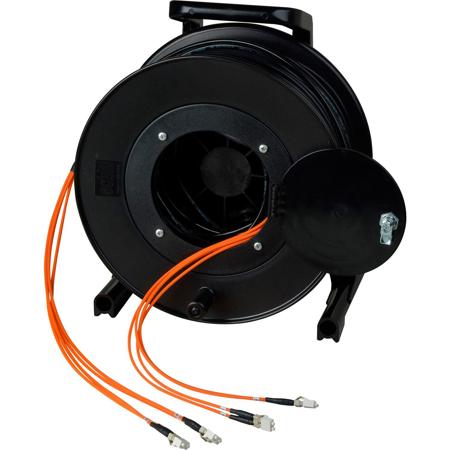

The Camplex Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door. Each reel is carefully selected to ensure proper support and maintain the critical bend radius required by fiber optic cables.

Whether you're setting up a network for Ethernet connections, telecommunications, or CCTV surveillance, this durable and versatile 12-channel multimode fiber optic cable is an excellent choice.

Camplex 1250' 12-Channel OM1 ST Multimode Tactical Snake Cable Reel, Orange Features

  • Durable 1250' multimode fiber optic cable reel ideal for broadcast and pro-audio applications
  • High-grade orange 62.5 micron OM1 ST connectors with machine-polished UPC finish
  • Features internal aramid strength members for crush resistance in high-traffic areas
  • Polyurethane sheath for superior abrasion, cut, and chemical resistance
  • Meets and exceeds MIL-PRF-85045 specifications for reliability in harsh environments
  • Compact design with helically stranded core for easy transport and flexible deployment

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1250' fiber optic tactical snake cable reel.
  • Durable polyurethane jacket protects the fiber optic cable in demanding environments.
  • Features 12 ST connectors with machine polished UPC for optimal signal integrity.
  • OM1 multimode fiber supports Gigabit Ethernet up to 1969' at 1310 nm wavelength.
  • High crush resistance (440 N/cm) ensures longevity for your tactical cable setup.
  • Wide operating temperature range (-67 to 185°F) for reliable use in any condition.

What's in the box:

  • Camplex 1250' 12-Channel OM1 ST Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel
  • Camplex 1 Year Limited Warranty
