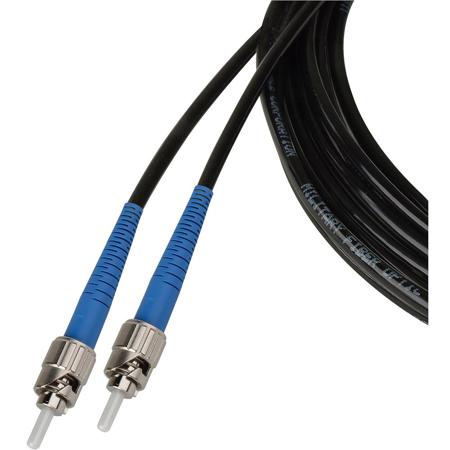

Camplex TAC1 Simplex Singlemode ST Fiber Optic Single Channel Tactical Cable, 656'

SKU: CPT1SMST656 MFR: HF-T1SM-ST-0656
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 656' singlemode ST fiber optic cable.
  • Built for durability, this tactical fiber optic cable withstands harsh conditions.
  • Experience minimal signal loss with a return loss less than 55 dB on this cable.
  • This fiber optic cable supports 1310/1550 nm wavelengths for optimal performance.
  • Withstands up to 200 impacts, ensuring your fiber optic connection remains stable.
  • Enjoy flexible installation with a minimum bend radius of just 1.1" on this cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex TAC1 Simplex Singlemode ST Fiber Optic Single Ch Tactical Cable, 656' Specifications

  • Cable Type

    Fiber Optic Tactical

  • Connector

    Connector 1: ST
    Connector 2: ST

  • Industry Standard Designation

    Single-Mode ITU-T G.652.A

  • Return Loss

    Less than 55 dB and IL less than 0.25 dB

  • Fiber

    SLS

  • Temperature

    Operating: -67-185 Degree F (-55-85 Degree C)
    Storage: -94-185 Degree F (-70-85 Degree C)
    Installation (Actual temp. Degree F cable): -13-140 Degree F (-25-60 Degree C)

  • Core/Cladding Diameter

    9/125 um

  • Wavelength (nm)

    1310/1550

  • Attenuation

    0.5/0.5 dB/km

  • Crush Resistance

    440 N/cm

  • Impact Resistance

    200 impacts

  • Jacket Material

    Polyurethane

  • Bend Radius

    Minimum: Installation: 1.1" (2.9cm)
    Operating: 0.6" (1.5cm)

  • Dispersion

    Zero Dispersion Slope: 0.092 ps/nm2-km

  • Pro Degree F Test Level

    100 kpsi

  • Tensile Strength

    Installation: 110lbs. (49.9kg) / 500 N
    Operating: 70lbs. (31.8kg) / 300 N

  • Jacket Color

    Black

  • Buffer Material

    Hard elastomeric

  • Diameter

    Cable: 0.11" (2.9mm)
    Primary Coating Diameter: 500 um
    Secondary Buffer Diameter: 900 um

  • Length

    656' (200m)

About Camplex TAC1 Simplex Singlemode ST Fiber Optic Single Ch Tactical Cable, 656'

What sets the TAC1 Simplex Singlemode ST Fiber Optic Single Channel Tactical Cable, 656' apart is its exceptional durability and lightweight design, making it an ideal choice for broadcast and professional audio applications. Specifically engineered for military tactical deployment, this single channel tactical cable is equipped to meet all outdoor tactical needs for broadcast applications that demand an outdoor-rated, crush and impact-resistant design.

Constructed with a robust Polyurethane Core-Locked design, this cable offers superior protection in the field, outperforming ordinary PVC jacket cables in terms of durability and resilience. It's not just about toughness, though. This cable also ensures high-quality performance with its Senko ST and LC premium fiber connectors, promising reliable and consistent connectivity.

To guarantee the highest standards of quality, all assemblies of this tactical cable are machine polished and interferometer tested in accordance with industry standards. We take pride in our commitment to quality, ensuring that all our products are 100% tested. Upon request, we can provide a complete set of test documentation for your cable, giving you the assurance of its superior performance and durability.

In summary, the TAC1 Simplex Singlemode ST Fiber Optic Single Channel Tactical Cable, 656' is more than just a cable. It's a reliable partner for your broadcast and professional audio needs, offering unmatched durability and high-quality performance.

Camplex TAC1 Simplex Singlemode ST Fiber Optic Single Ch Tactical Cable, 656' Features

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL less than-55dB and IL less than 0.25dB
  • Wide temperature range (typically -55 Degree C to 85 Degree C)
  • 500um primary acrylate buffer with 900um secondary hard elastomeric buffer (Ultra-Fox Plus)
  • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
  • Designed to withstand crush and impact after deployment
  • Strong, lightweight and extremely durable cable

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 656' singlemode ST fiber optic cable.
  • Built for durability, this tactical fiber optic cable withstands harsh conditions.
  • Experience minimal signal loss with a return loss less than 55 dB on this cable.
  • This fiber optic cable supports 1310/1550 nm wavelengths for optimal performance.
  • Withstands up to 200 impacts, ensuring your fiber optic connection remains stable.
  • Enjoy flexible installation with a minimum bend radius of just 1.1" on this cable.

What's in the box:

  • Camplex TAC1 Simplex Singlemode ST Fiber Optic Single Channel Tactical Cable
  • Camplex 1 Year Limited Warranty
