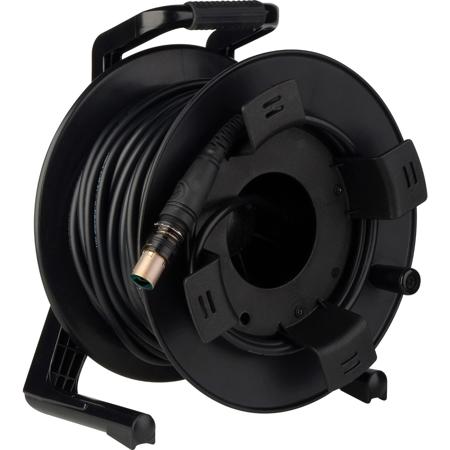

Camplex 100' opticalCON DUO to opticalCON DUO Multimode Fiber Optic Tactical Cable Reel

SKU: CPTROC2M0100 MFR: HF-TROC2M-0100
Earn VIP Reward Points

Key Features

  • Ensure reliable data & networking with this 100' opticalCON DUO multimode fiber cable.
  • Experience superior connectivity; this tactical fiber cable is ideal for digital audio & video.
  • Built for durability, the polyurethane jacket protects this fiber optic cable in harsh environments.
  • Enjoy high-performance data transfer with low loss; less than 3dB/km at 850nm with this fiber cable.
  • This opticalCON DUO fiber cable offers broad compatibility for lighting control and JVC FS-790 cameras.
  • Get a strong, secure connection; this fiber optic cable withstands 500N cable retention force.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 100' opticalCON DUO Multimode Fiber Optic Tactical Cable Reel Specifications

  • Length

    100' / 30.48m

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector

    Neutrik opticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500N

  • Lifetime

    >1000 Cycles

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -25 to 75 deg. C / -13 to 167 deg. F

  • Minimum Bend Radius

    4cm / 1.57"

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50um OM3 Multimode Fiber

  • Cable Loss

    < 3dB/km at 850nm, < 1dB/km at 1300nm

  • Connector Loss

    <0.5dB/Connector

  • Connector Back Reflection

    -55dB/-45dB RL (typical/max)

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging and Harsh Environment
    JVC FS-790 Cameras

About Camplex 100' opticalCON DUO Multimode Fiber Optic Tactical Cable Reel

Before you embark on your next field production or outdoor broadcast, ensure you're equipped with the 100' opticalCON DUO to opticalCON DUO Multimode Fiber Optic Tactical Cable Reel, a solution that epitomizes durability and reliability. This heavy-duty cable reel is specifically designed to meet the rigorous demands of outside broadcasts, rental houses, and various professional applications where a sturdy and high-quality connection is paramount.

Crafted with only two fibers and devoid of electrical conductors, this multimode fiber optic cable is engineered for optimal performance. The ruggedized opticalCON DUO fiber optic tactical cables are a testament to our commitment to excellence, as evidenced by our designation as a Certified opticalCON Cable Assembler (COCA) by Neutrik. This certification guarantees that our skilled technicians construct your cable adhering to the most current training and polishing standards set by Neutrik factory professionals.

Our exclusive cables leverage the Neutrik opticalCON ADVANCED system, which builds upon the original opticalCON's robust design. It introduces lockable and waterproof metal caps along with rubber guards, ensuring your connections are safeguarded against the elementsf crucial for outdoor use. The ergonomic cable strain relief is meticulously designed to enhance cable protection and water resistance for prolonged durability, while the color-coding options facilitate custom-built coding for easy identification.

The opticalCON system, based on the reliable LC-Duplex connectors, eliminates common weaknesses and assures a secure, dust-protected, and rugged connection. With compatibility to conventional LC connectors, the opticalCON DUO provides the flexibility of using cost-effective LC cables or opting for the rugged opticalCON cable assembly for mobile and demanding applications.

The opticalCON DUO is the quintessential solution for equipment connections and system integration, offering LC compatibility on both the chassis connector front and rear. The cable connector houses a standard optical LC-Duplex connector within a robust all-metal housing, featuring a spring-loaded push-pull locking mechanism and superior cable retention using aramid yarn. The optical connection is exceptionally well-protected from dirt and dust by an automatically operated sealing cover, ensuring your signal's integrity is never compromised.

Choose the 100' opticalCON DUO to opticalCON DUO Multimode Fiber Optic Tactical Cable Reel for a connection that promises strength, versatility, and steadfast performance in the most challenging environments.

Camplex 100' opticalCON DUO Multimode Fiber Optic Tactical Cable Reel Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than -55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
  • (2) Neutrik OpticalCon, NO2SX
  • Tactical, Polyurethane Jacket, 5mm diameter, Black
  • Nickel Finish Connector Body
  • 50', 100', 164', 250', 328', 500', 656' or Custom

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data & networking with this 100' opticalCON DUO multimode fiber cable.
  • Experience superior connectivity; this tactical fiber cable is ideal for digital audio & video.
  • Built for durability, the polyurethane jacket protects this fiber optic cable in harsh environments.
  • Enjoy high-performance data transfer with low loss; less than 3dB/km at 850nm with this fiber cable.
  • This opticalCON DUO fiber cable offers broad compatibility for lighting control and JVC FS-790 cameras.
  • Get a strong, secure connection; this fiber optic cable withstands 500N cable retention force.

What's in the box:

  • Camplex 100' opticalCON DUO to opticalCON DUO Multimode Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
