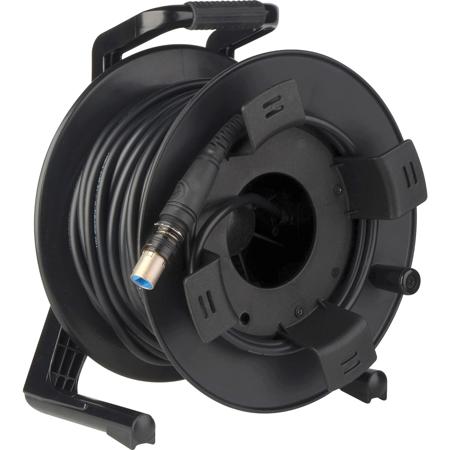

Camplex 1000' opticalCON DUO to opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel

SKU: CPTROC2S1000 MFR: HF-TROC2S-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1000' Singlemode Fiber Optic cable reel.
  • Experience durable connectivity with opticalCON DUO connectors, perfect for harsh environments.
  • Enjoy versatile use in digital audio, video, and networking with this tactical cable.
  • Achieve high-speed connections with low cable loss, ideal for critical data applications.
  • Benefit from a long-lasting design with >1000 cycles, reducing the need for frequent replacements.
  • Deploy with confidence; this fiber optic cable supports Telecast Copperhead and MultiDyne Silverback.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel Specifications

  • Length

    1000' / 304.80m

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector

    Neutrik opticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500N

  • Lifetime

    >1000 Cycles

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -25 to 75 deg. C / -13 to 167 deg. F

  • Minimum Bend Radius

    4cm / 1.57"

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um Singlemode Fiber

  • Cable Loss

    < 0.5dB/km at 1310/1550nm

  • Connector Loss

    <0.5dB/Connector

  • Connector Back Reflection

    -55dB/-45dB RL (typical/max)

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging and Harsh Environment
    JVC FS-790 Cameras
    Telecast Copperhead, SHED-HDX
    MultiDyne Silverback

  • UPC Code

    4013046273020

About Camplex 1000' opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel

Be assured of superior performance with the 1000' opticalCON DUO to opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel. This robust and durable product is specifically designed for demanding field production in outside broadcast, rental houses, and more.

Constructed with two fibers and no electrical conductors, this singlemode cable reel is built to last. It is crafted by Camplex, a brand recognized by Neutrik as a Certified opticalCON Cable Assembler (COCA). This certification guarantees that the cable is assembled to the highest standards, following the latest training and polishing guidelines set by Neutrik factory professionals.

The cable reel is part of the Neutrik opticalCON ADVANCED system, which enhances the original opticalCON by adding lockable and waterproof metal caps and rubber guards. This makes it an ideal choice for outdoor applications where durability and water resistance are paramount.

The ergonomic cable strain relief design further improves the cable's protection and longevity, even in long-term use. The color-coding options allow for custom-built coding, adding a layer of convenience and customization.

The opticalCON system is based on LC-Duplex connectors, eliminating their weaknesses and ensuring a safe, dust-protected, and rugged connection. The opticalCON DUO offers the flexibility of using cost-effective LC cables or the rugged opticalCON cable assembly for mobile applications.

The opticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

With its 1000 feet length, this high-quality fiber optic tactical cable reel is the perfect solution for equipment connections and system integration, offering LC compatibility on the chassis connector front and rear.

Camplex 1000' opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than -55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
  • (2) Neutrik OpticalCon, NO2SX
  • Tactical, Polyurethane Jacket, 5mm diameter, Black
  • Nickel Finish Connector Body
  • 50', 100', 164', 250', 328', 500', 656' or Custom

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1000' Singlemode Fiber Optic cable reel.
  • Experience durable connectivity with opticalCON DUO connectors, perfect for harsh environments.
  • Enjoy versatile use in digital audio, video, and networking with this tactical cable.
  • Achieve high-speed connections with low cable loss, ideal for critical data applications.
  • Benefit from a long-lasting design with >1000 cycles, reducing the need for frequent replacements.
  • Deploy with confidence; this fiber optic cable supports Telecast Copperhead and MultiDyne Silverback.

What's in the box:

  • Camplex 1000' opticalCON DUO to opticalCON DUO Singlemode Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
