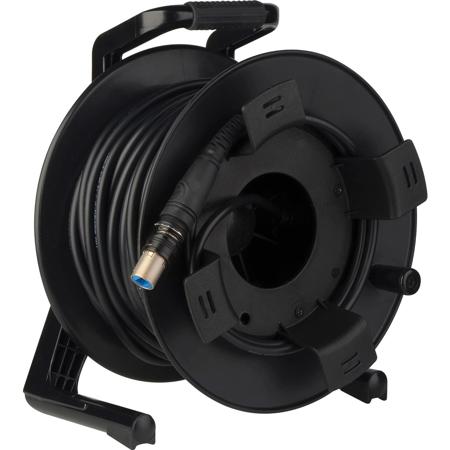

Camplex 1000' opticalCON QUAD to opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel

SKU: CPTROC4M1000 MFR: HF-TROC4M-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable data & networking with this 1000' opticalCON QUAD fiber cable reel.
  • Built for durability: features a rugged tactical cable with a polyurethane jacket.
  • Experience superior performance with low loss connectors, less than 0.5dB per connector.
  • Use for digital audio & video, lighting control, and more in harsh environments.
  • Enjoy broad compatibility; this multimode fiber optic cable works with JVC FS-790 cameras.
  • Get a strong, secure connection with a 500N cable retention force for worry-free use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel Specifications

  • Length

    1000' / 304.80m

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector

    Neutrik opticalCON QUAD NO4MX, nickel finish

  • Cable Retention Force

    500N

  • Lifetime

    >1000 Cycles

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -25 to 75 deg. C / -13 to 167 deg. F

  • Minimum Bend Radius

    4cm / 1.57"

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50um OM3 Multimode Fiber

  • Cable Loss

    < 3dB/km at 850nm, < 1dB/km at 1300nm

  • Connector Loss

    <0.5dB/Connector

  • Connector Back Reflection

    -55dB/-45dB RL (typical/max)

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging and Harsh Environment
    JVC FS-790 Cameras

About Camplex 1000' opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel

A robust and lightweight solution for your networking needs, the 1000' opticalCON QUAD to opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel is designed with durability and reliability in mind. This high-quality cable, featuring NO4MX to NO4MX connectors, is specifically engineered for demanding Broadcast and Pro-Audio applications.

Constructed with only two fibers and devoid of electrical conductors, this sturdy cable is ideal for field production in outside broadcast environments, rental houses, and more. Each of our opticalCON assemblies are meticulously factory terminated and machine polished in our state-of-the-art Fiber Optic Lab, ensuring a reliable and high-speed connection for your Ethernet networking requirements.

Exclusively assembled using the advanced Neutrik opticalCON system, this cable offers enhanced robustness with lockable and waterproof metal caps, making it a perfect choice for outdoor applications. The addition of rubber guards further strengthens its resilience against harsh weather conditions and long-term use.

The ergonomic cable strain relief not only improves the cable's protection but also enhances its water resistance, ensuring its longevity. With color-coding options available, this cable allows for custom-built coding, providing greater convenience and flexibility in its use.

Whether you're setting up a security system, CCTV, or other surveillance systems, the 1000' opticalCON QUAD to opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel is a reliable and durable choice that can withstand the rigors of both indoor and outdoor environments.

Camplex 1000' opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than -55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
  • (4) Neutrik OpticalCon, NO4SX
  • Tactical, Polyurethane Jacket, 5mm diameter, Black
  • Nickel Finish Connector Body
  • 50', 100', 164', 250', 328', 500', 656' or Custom

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data & networking with this 1000' opticalCON QUAD fiber cable reel.
  • Built for durability: features a rugged tactical cable with a polyurethane jacket.
  • Experience superior performance with low loss connectors, less than 0.5dB per connector.
  • Use for digital audio & video, lighting control, and more in harsh environments.
  • Enjoy broad compatibility; this multimode fiber optic cable works with JVC FS-790 cameras.
  • Get a strong, secure connection with a 500N cable retention force for worry-free use.

What's in the box:

  • Camplex 1000' opticalCON QUAD to opticalCON QUAD Multimode Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
