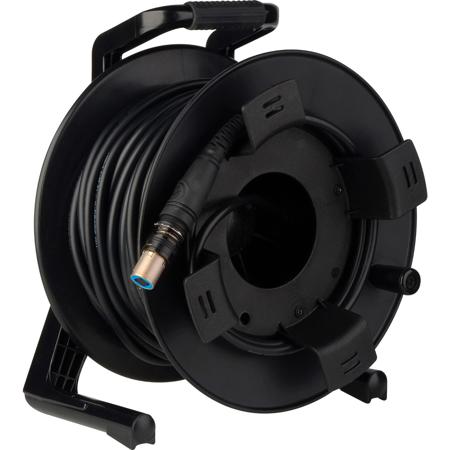

Camplex 164' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel

SKU: CPTROC4S0164 MFR: HF-TROC4S-0164
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 164' Singlemode Fiber Optic cable reel.
  • Rugged tactical cable with a polyurethane jacket built for harsh environments.
  • Experience superior connectivity using Neutrik opticalCON QUAD NO4MX connectors.
  • Enjoy worry-free performance with a cable retention force of up to 500N.
  • This durable fiber optic cable supports digital audio, video, and networking.
  • Achieve optimal performance with low cable loss, less than 0.5dB/km at 1310/1550nm.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 164' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel Specifications

  • Length

    164' / 49.99m

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector

    Neutrik opticalCON QUAD NO4MX, nickel finish

  • Cable Retention Force

    500N

  • Lifetime

    >1000 Cycles

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -25 to 75 deg. C / -13 to 167 deg. F

  • Minimum Bend Radius

    4cm / 1.57"

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um Singlemode Fiber

  • Cable Loss

    < 0.5dB/km at 1310/1550nm

  • Connector Loss

    <0.5dB/Connector

  • Connector Back Reflection

    -55dB/-45dB RL (typical/max)

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging and Harsh Environment
    JVC FS-790 Cameras
    Telecast Copperhead, SHED-HDX
    MultiDyne Silverback

About Camplex 164' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel

Become a part of the professional broadcasting and audio world with the 164' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel. This rugged and lightweight tactical cable reel, featuring the OpticalCON QUAD NO2SX to NO2SX singlemode, is specifically designed to withstand the rigors of field production in outside broadcast environments, rental houses, and more.

This product is not just a cable, but a powerhouse of four fibers, devoid of any electrical conductors, making it a perfect fit for broadcast and pro-audio applications. Each of our OpticalCON assemblies is meticulously factory terminated and machine polished in our state-of-the-art Fiber Optic Lab, ensuring the highest quality and performance.

Our Camplex cables are exclusively assembled using the Neutrik opticalCON ADVANCED system, a testament to our commitment to superior technology. The opticalCON ADVANCED system enhances the durability of the original opticalCON by adding lockable and waterproof metal caps, along with rubber guards. This makes the cable reel particularly suitable for outdoor applications where weather conditions can be challenging.

The ergonomic cable strain relief not only improves the cable protection but also enhances water resistance for long-term use. The color-coding options available with this product allow for custom-built coding, making it a versatile addition to your professional equipment.

Experience the blend of robust construction and advanced technology with the 164' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel, designed to meet the demanding needs of broadcast and pro-audio applications.

Camplex 164' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than -55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
  • (4) Neutrik OpticalCon, NO2SX
  • Tactical, Polyurethane Jacket, 5mm diameter, Black
  • Nickel Finish Connector Body
  • 50', 100', 164', 250', 328', 500', 656' or Custom

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 164' Singlemode Fiber Optic cable reel.
  • Rugged tactical cable with a polyurethane jacket built for harsh environments.
  • Experience superior connectivity using Neutrik opticalCON QUAD NO4MX connectors.
  • Enjoy worry-free performance with a cable retention force of up to 500N.
  • This durable fiber optic cable supports digital audio, video, and networking.
  • Achieve optimal performance with low cable loss, less than 0.5dB/km at 1310/1550nm.

What's in the box:

  • Camplex 164' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
