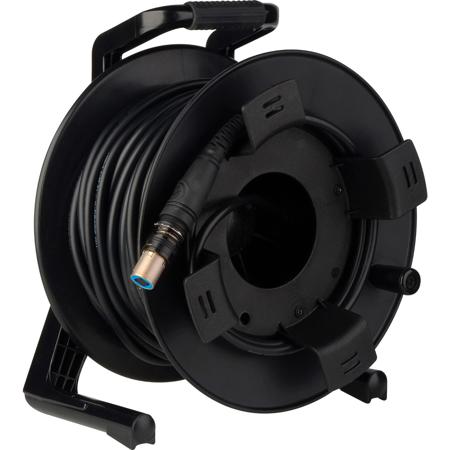

Camplex 500' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel

SKU: CPTROC4S0500 MFR: HF-TROC4S-0500
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 500' Singlemode Fiber Optic Tactical Cable Reel.
  • Experience superior connectivity using opticalCON QUAD connectors for digital audio & video.
  • Built for durability, this Camplex cable withstands harsh environments and staging setups.
  • Enjoy high-performance networking with <0.5dB/km loss at 1310/1550nm for clear signals.
  • This tactical cable's flexible design supports a minimum bend radius of just 1.57 inches.
  • Trust in long-term use; this fiber optic cable is rated for >1000 cycles for lasting quality.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 500' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel Specifications

  • Length

    500' / 152.40m

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector

    Neutrik opticalCON QUAD NO4MX, nickel finish

  • Cable Retention Force

    500N

  • Lifetime

    >1000 Cycles

  • Insertion/Withdrawal Force

    < 45N

  • Operating Temperature

    -25 to 75 deg. C / -13 to 167 deg. F

  • Minimum Bend Radius

    4cm / 1.57"

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um Singlemode Fiber

  • Cable Loss

    < 0.5dB/km at 1310/1550nm

  • Connector Loss

    <0.5dB/Connector

  • Connector Back Reflection

    -55dB/-45dB RL (typical/max)

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging and Harsh Environment
    JVC FS-790 Cameras
    Telecast Copperhead, SHED-HDX
    MultiDyne Silverback

About Camplex 500' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel

The 500' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel is a rugged and lightweight solution, specifically designed to meet the demanding needs of Broadcast and Pro-Audio Applications. This high-quality cable features NO2SX to NO2SX singlemode tactical fiber optics, offering four fibers without any electrical conductors, making it an ideal choice for field production in outside broadcast, rental houses, and more.

Our OpticalCON assemblies are meticulously factory terminated and machine polished in our state-of-the-art Fiber Optic Lab, ensuring superior performance and durability. This cable is exclusively assembled using the advanced Neutrik opticalCON system, which further enhances the robustness of the original opticalCON.

One of the standout features of this tactical cable reel is the addition of lockable and waterproof metal caps, along with protective rubber guards. These enhancements make the cable more robust and suitable for outdoor applications, where it can withstand harsh weather conditions and rigorous use.

Moreover, the ergonomically designed cable strain relief not only improves the cable's protection but also enhances its water resistance for long-term use. The color-coding options available with this cable reel allow for custom-built coding, making it a versatile solution for various professional audio and video setups.

In conclusion, the 500' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel is a reliable, high-performance solution that combines durability, versatility, and advanced technology to meet the needs of the most demanding professional applications.

Camplex 500' opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than -55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
  • (4) Neutrik OpticalCon, NO2SX
  • Tactical, Polyurethane Jacket, 5mm diameter, Black
  • Nickel Finish Connector Body
  • 50', 100', 164', 250', 328', 500', 656' or Custom

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 500' Singlemode Fiber Optic Tactical Cable Reel.
  • Experience superior connectivity using opticalCON QUAD connectors for digital audio & video.
  • Built for durability, this Camplex cable withstands harsh environments and staging setups.
  • Enjoy high-performance networking with <0.5dB/km loss at 1310/1550nm for clear signals.
  • This tactical cable's flexible design supports a minimum bend radius of just 1.57 inches.
  • Trust in long-term use; this fiber optic cable is rated for >1000 cycles for lasting quality.

What's in the box:

  • Camplex 500' opticalCON QUAD to opticalCON QUAD Singlemode Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
