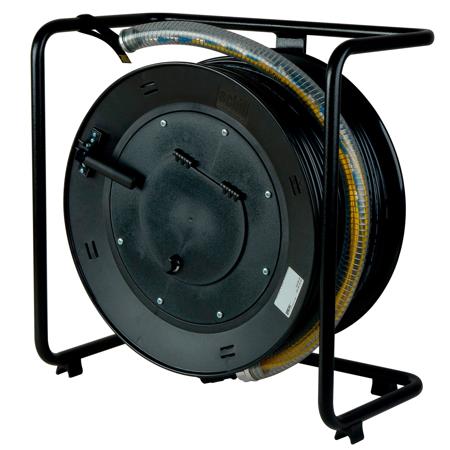

Camplex 1000' 4-Channel ST Singlemode Fiber Optic Tactical Snake Cable Reel with Protective Pulling Sleeve

SKU: CPTRP04S1000 MFR: HF-TRP04ST-1000
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 1000' Camplex fiber optic cable reel.
  • Enjoy a reliable connection for broadcast, telecom, and enterprise applications.
  • This durable construction tactical snake cable is built to last in demanding settings.
  • The ST connectors provide secure, low-loss links for critical data transmission.
  • Wide temperature range (-40 to 185°F) ensures consistent performance in any climate.
  • Simplify cable management with the included protective pulling sleeve and reel system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' 4-CH ST Singlemode Fiber Tactical Snake Cable Reel with Sleeve Specifications

  • Length

    1000' / 304.80m

  • Mounting

    Hose clip/cable tie

  • Number of Fibers

    4

  • Connector Type

    ST

  • Insertion Loss

    <0.5 dB

  • Return Loss

    >-55 dB

  • Temperature Range

    -40 to 185 deg. F / -40 to 85 deg. C

  • Fan-out kit retention

    >15 lbs (>66N)

  • Feeder cable retention

    100 lbs (450N)

  • Applications

    Broadcast
    Enterprise
    Telecom
    Datacenter
    LAN

  • Dimensions

    Reel: 11.5 x 9.0 x 15.0" / 29.21 x 22.86 x 38.10cm

  • Weight

    Reel: 27.0lbs / 12.25kg

About Camplex 1000' 4-CH ST Singlemode Fiber Tactical Snake Cable Reel with Sleeve

What sets the Camplex ProTac 4-Channel ST Singlemode Tactical Snake apart is its robust construction and superior design. This is not just a fiber optic snake; it's a ruggedized version, designed to withstand the harshest conditions and provide reliable performance when you need it most.

The ProTac series is renowned for its high-quality fiber optic snakes, and this model takes it a step further with a translucent, crush-resistant, reusable protective tube. This tube is specifically designed for pulling and field deployment, ensuring your fiber optic cables are always protected and ready for use.

At the heart of this product is the ProTac cover, which houses the fan-outs safely. This cover is equipped with a convenient pulling eye, making it easy to handle and use. The ProTac fiber deployment reel system is IP68 rated, providing maximum protection when the pulling sock is installed.

The pulling eye and tactical sleeve work together to protect the fiber and connectors. They transfer the tensile or pulling force to the cable structure, ensuring the longevity and durability of your cables.

The ProTac system features ruggedized multi-channel fiber optic cables, designed to withstand multiple deployments. Whether you're working in outside broadcast, rental houses, or other high-traffic areas, these highly flexible tight-buffered tactical cables are up to the task. They feature internal aramid strength members for crush resistance and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles.

All Camplex products are multi-stage machine polished and tested for superior performance. The ProTac ruggedized fan-out kit is a cost-effective and time-saving solution that protects your expensive fiber investments. All Camplex products are assembled and tested in the USA, ensuring you're getting the finest quality fiber connectors and cable.

Camplex 1000' 4-CH ST Singlemode Fiber Tactical Snake Cable Reel with Sleeve Features

  • Built in our Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
  • Individual Channels Ruggedized with Techflex Protection & 24-Inch Fanout
  • Compact, round cable design for ease of transportation and deployment
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Light weight metal body construction
  • Small size diameter
  • Up to 12 x 2.00mm breakouts
  • IP68 rated
  • Meets & Exceeds MIL-PRF-85045 Specifications!

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 1000' Camplex fiber optic cable reel.
  • Enjoy a reliable connection for broadcast, telecom, and enterprise applications.
  • This durable construction tactical snake cable is built to last in demanding settings.
  • The ST connectors provide secure, low-loss links for critical data transmission.
  • Wide temperature range (-40 to 185°F) ensures consistent performance in any climate.
  • Simplify cable management with the included protective pulling sleeve and reel system.

What's in the box:

  • Camplex 1000' 4-Channel ST Singlemode Fiber Optic Tactical Snake Cable Reel with Protective Pulling Sleeve
  • Camplex 1 Year Limited Warranty
