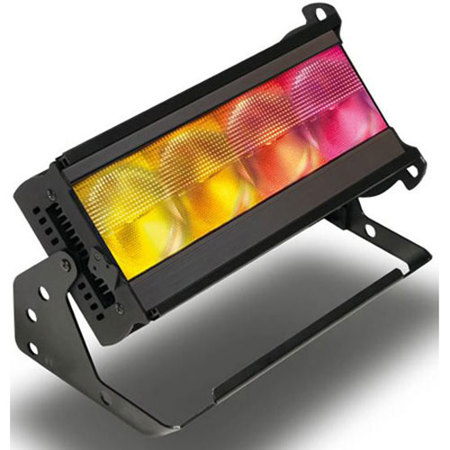

Chroma-Q Color Force II 12 RGBA with Trunnion, 3' TRUE1 to Male Edison Tail

SKU: CQCF212RGBA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Chroma-Q Color Force II Specifications

Technical Specifications

Technical Specifications

Jump to...
  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 160VA

  • Power Factor

    0.99 @ 120V AC, 0.97 @ 240V AC

  • Power Consumption

    133W @ 120V AC, 133W @ 240V AC

  • Idle Power Consumption

    8W @ 120V AC, 10W @ 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maxi-mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Forced

  • Operating Temperature

    0 Degree C to 40 Degree C

  • Construction

    Anodised Aluminum extrusion

  • Color

    Black

  • Built-In Hardware

    Quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Approvals

    CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750

  • Dimensions (L x W x H) (Without Fixings)

    13.2 x 8.6 x 7.5" (335 x 218 x 190mm)

  • Weight

    11.2 lb (5kg)

Control & Photometric Data

Jump to...
  • LED Engines

    4

  • Hot Lumen Output (Combined)

    3,600 lm

  • Control Modes

    RGBA, RGB, HSI, Look Sel, Master, x4, x2 , x1 , Odd /Even

  • Dimming Curve

    Theatrical

  • Variable Effects Engine

    Strobe, Strobe on Top, Strobe Random

  • Optics

    Fully homogenised lenses

  • Beam Angle

    22 Degree (approx.)

  • Beam Angle With Optional Cyc Optic

    80 Degree x 35 Degree (approx.)

  • Beam Angle With Optional Border Optic

    43Degree (approx.)

  • Beam Distribution

    Asymmetrical direct illumination

  • CCT

    Adjustable 1,000 - 10,000K

  • Color Gamut

    Performance enhanced

  • CRI

    92

  • Lamp Life

    L70 at 50,000 hours

About Chroma-Q Color Force II

Experience the unparalleled brilliance of the Chroma-Q Color Force II 12 RGBA with Trunnion, a cutting-edge lighting solution that elevates stage lighting to new heights. This high-quality, durable product is equipped with the latest fully homogenized optics, a feature that has made the Chroma-Q Color One 100 range a popular choice among professionals.

The Color Force II fixtures deliver a single, clean, and pure beam of light, offering a superior color blend without the distraction of color mixing shadows. The advanced homogenized optics and enhanced Chroma-Q technology ensure the delivery of even higher quality saturates and pastels, and a purer white light, all emanating from a single source.

This versatile lighting solution is factory calibrated to ensure color consistency across all Color Force II units. When placed side by side, each unit outputs the exact same color, creating a seamless and harmonious lighting experience.

The Color Force II 12 RGBA with Trunnion also offers increased creative control, with twice as many light engines accommodated within the same fixture lengths. This feature provides independently controllable cells every 3 inches, allowing for precise and customizable lighting effects.

Whether you're illuminating a stage performance or creating a specific ambiance, the Chroma-Q Color Force II 12 RGBA with Trunnion is the bright, colorful, and reliable choice for all your lighting needs.

Chroma-Q Color Force II Features

  • Up to 3,600 lumens - at least 50% more output compared to predecessors
  • Homogenised output - superior Color blend & no unsightly colormixing shadows
  • Even more creative control - twice as many light engines
  • Theatrical grade dimming
  • Practical, user friendly design
  • Superior unit-to-unit consistency
  • Chroma-Q's proven LED performance
  • Touchscreen user interface

Key Features

  • Cutting-edge stage lighting solution from reputable brand Chroma-Q
  • Features latest fully homogenized optics for a clean, pure beam of light
  • Superior color blend with no color mixing shadows for a seamless visual experience
  • Factory calibrated for consistent color output across multiple units
  • Increased creative control with independently controllable cells every 3 inches
  • Versatile and durable, ideal for various lighting needs and environments

What's in the box:

  • Color Force II 12 RGBA
  • Power Cord
  • Quick Start Guide
  • Chroma-Q 1 Year Limited Warranty
