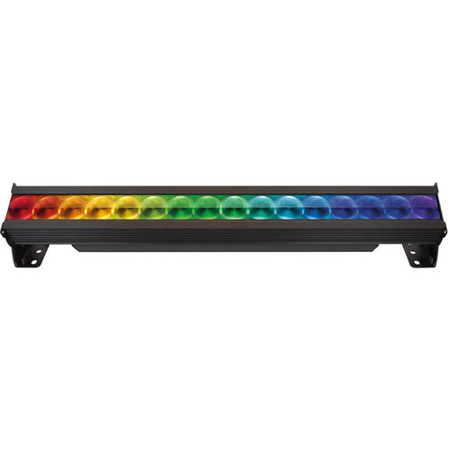

Chroma-Q Color Force II 48 RGBA, 3' TRUE1 to Male Edison Tail & LumenRadio RF
See all Chroma-Q items

Chroma-Q Color Force II 48 RGBA with Trunnion, 3' TRUE1 to Male Edison Tail, LumenRadio RF

SKU: CQCF248RGBLR
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the light output of the Chroma-Q Color Force II 48 RGBA with Trunnion unique?

The Chroma-Q Color Force II 48 RGBA with Trunnion uses advanced homogenized optics that produce a single, clean, and pure beam of light. It offers a superior color blend, eliminating any unsightly color mixing shadows.

How does the Chroma-Q Color Force II 48 RGBA with Trunnion ensure consistent color output?

All Color Force II units are factory calibrated to ensure they are color-matched. This means when placed side by side, they will output the exact same color, ensuring consistency across your lighting setup.

What kind of control does the Chroma-Q Color Force II 48 RGBA with Trunnion offer?

The Color Force II 48 RGBA with Trunnion houses twice as many light engines within the same fixture lengths, providing independently controllable cells every 3 inches. This offers enhanced creative control over your lighting.

What is the RDM functionality in the Chroma-Q Color Force II 48 RGBA with Trunnion?

The Chroma-Q Color Force II 48 RGBA with Trunnion offers extensive RDM (Remote Device Management) functionality. This can be accessed through a wired connection or the optional LumenRadio CRMX for wireless control.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Chroma-Q Color Force II Specifications

Technical Specifications

Technical Specifications

Jump to...

  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 550VA

  • Power Factor

    0.97 @ 120V AC, 0.92 @ 240V AC

  • Power Consumption

    533W @ 120V AC, 533W @ 240V AC

  • Idle Power Consumption

    27W @ 120V, AC 30W @ 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maxi-mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Forced

  • Operating Temperature

    0 Degree C to 40 Degree C

  • Construction

    Anodised Aluminum extrusion

  • Color

    Black

  • Built-In Hardware

    Quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Approvals

    CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003: 2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750

  • Dimensions (L x W x H) (Without Fixings)

    46.5 x 6.5 x 7.5" (1181 x 165 x 191mm)

  • Weight

    40 lb (18kg)

Control & Photometric Data

Jump to...

  • LED Engines

    16

  • Hot Lumen Output (Combined)

    13,550 lm

  • Control Modes

    RGBA, RGB, HSI, Look Sel, Master, x16 , x8, x4 , x2 , x1, Odd /Even, Skp3 , Skp7

  • Dimming Curve

    Theatrical

  • Variable Effects Engine

    Strobe, Strobe on Top, Strobe Random

  • Optics

    Fully homogenised lenses

  • Beam Angle

    22 Degree (approx.)

  • Beam Angle with Optional Cyc Optic

    80 Degree x 35 Degree (approx.)

  • Beam Angle with Optional Border Optic

    43Degree (approx.)

  • Beam Distribution

    Asymmetrical direct illumination

  • CCT

    Adjustable 1,000 - 10,000K

  • Color Gamut

    Performance enhanced

  • CRI

    92

  • Lamp Life

    L70 at 50,000 hours

  • Wireless DMX

    LumenRadio CRMX

About Chroma-Q Color Force II

Experience the unparalleled performance of the Chroma-Q Color Force II 48 RGBA with Trunnion, a next-generation lighting solution that takes illumination to new heights. This innovative product, equipped with the latest fully homogenized optics found in the acclaimed Chroma-Q Color One 100 range, delivers a single, clean, and pure beam of light.

The Color Force II 48 RGBA with Trunnion offers a superior color blend, eliminating any unsightly color mixing shadows. Its homogenized optics and advanced Chroma-Q technology produce even higher quality saturates and pastels, and a purer white light, all emanating from a single source.

Factory calibration ensures all Color Force II units are color-matched, meaning when placed side by side, they output the exact same color, ensuring consistency across your lighting setup. This model offers enhanced creative control, housing twice as many light engines within the same fixture lengths, providing independently controllable cells every 3 inches.

The Color Force II 48 RGBA with Trunnion also boasts extensive RDM functionality, accessible through a wired connection or the optional LumenRadio CRMX. This versatile, high-quality lighting strip is not just a product, but a comprehensive lighting solution designed to meet your diverse needs.

Chroma-Q Color Force II Features

  • Up to 13,550 lumens - at least 50% more output compared to predecessors
  • Homogenised output - superior Color blend & no unsightly colormixing shadows
  • Even more creative control - twice as many light engines
  • Theatrical grade dimming
  • Practical, user friendly design
  • Superior unit-to-unit consistency
  • Internal LumenRadio Installed
  • Chroma-Q's proven LED performance
  • Touchscreen user interface

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced homogenized optics for a pure and uniform light beam
  • Seamless color blending technology, eliminating color mixing shadows
  • Higher quality saturates, pastels, and pure white light from a single source
  • Factory calibrated for consistent color output across multiple units
  • Dual light engine design for increased creative control with independently controllable cells
  • Extensive RDM functionality with optional LumenRadio CRMX wireless capability

What's in the box:

  • Color Force II 48 RGBA
  • Power Cord
  • Quick Start Guide
  • Chroma-Q 1 Year Limited Warranty
