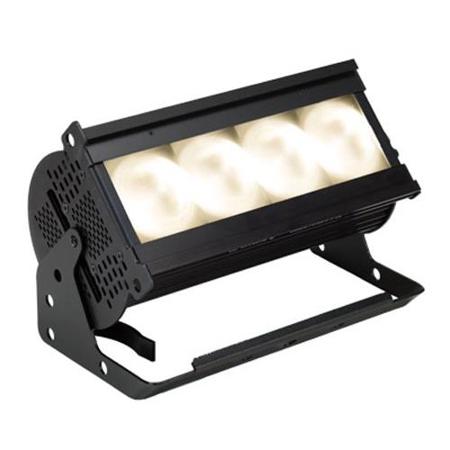

Chroma-Q Studio Force II 12 Studio Light with Trunnion, 3' TRUE1 to Male Edison Tail, Black

SKU: CQCHSF2V12

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Chroma-Q Studio Force II 12 Specifications

  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 160VA

  • Power Factor

    0.99 at 120V AC, 0.97 at 240V AC

  • Power Consumption

    150W at 120V AC, 133W at 240V AC

  • Idle Power Consumption

    8W at 120V AC, 10W at 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Max Fixtures in Series

    10x fixtures at 120V, 22 x Fixtures at 240V

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Combined convection and forced air - 1 fan

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Construction

    Anodized aluminum extrusion

  • Built-In Hardware

    Yoke and quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Control Modes

    RGBW, RGB, KHi, HSi, Cine-Q. Grouping x1, X4, Odd/Even

  • Dimming Curve

    Linear

  • Hot Lumen Output (Combined)

    6,500 lm

  • Optics

    Fully homogenized lenses

  • Beam Angle

    22 deg. (approx.)

  • Beam Distribution

    Symmetrical direct illumination

  • CCT

    Adjustable 2800 - 6500K

  • CRI

    92 at 3200K
    94 at 4400K
    94 at 5600K

  • TM-30 Rf (Fidelity Index)

    92 at 3200K
    94 at 4400K
    90 at 5600K

  • LED Life

    L70 at 50,000 hours

  • Approvals

    CISPR 32:2015 /EN 55032:2015, CISPR 24:2010/EN 55024:2010, IEC 60598-2- 17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003/R:2014-01

  • Dimensions (LxWxH)

    335 x 218 x 190mm (13.19 x 8.58 x 7.48") (without fixings)

  • Weight

    5kg (11.02 lbs)

About Chroma-Q Studio Force II 12

Using a homogenized LED source capable of delivering variable color temperature, plus/minus green shift control and the ability to produce deep saturated colors when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting. The Studio Force II uses the same ColorSure technologies found in other innovative Chroma-Q fixtures to deliver consistent color across fixtures.

Plus / Minus Green Shift
Tuneable white LED fixtures produce light typically ranging from cool white (6500K CCT) through to warm white (2,800K CCT) by following the black body locus. Chroma-Q's plus / minus green shift control allows designers to vary hue by moving along the green-magenta axis orthogonal to the color temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.

Chroma-Q ColorSure
The inherent variation between individual LED emitters means color can vary from fixture to fixture. Chroma-Q's ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured. A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

Functions
Studio Force II has a colored touch display for easy navigation through the addressing, modes and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.

Accessories
Chroma-Q offers a range of optional accessories for Studio Force II to tailor for any lighting situations. Accessories simply slide through the mounting slots. Cyc / border lenses can be used with other accessories.

Chroma-Q Studio Force II 12 Features

  • Full spectrum variable white light engine
  • High intensity homogenized output
  • Extremely smooth uniform wash
  • Variable plus / minus green shift
  • Ideal for TV, Broadcast and Film
  • powerCON TRUE1 input and output for easy daisy chaining of fixtures

What's in the box:

  • Chroma-Q Studio Force II 12 Studio Light with Trunnion
  • Power Cord
  • Quick Start Guide
  • Chroma-Q 2 Year Parts and Labor Limited Warranty
