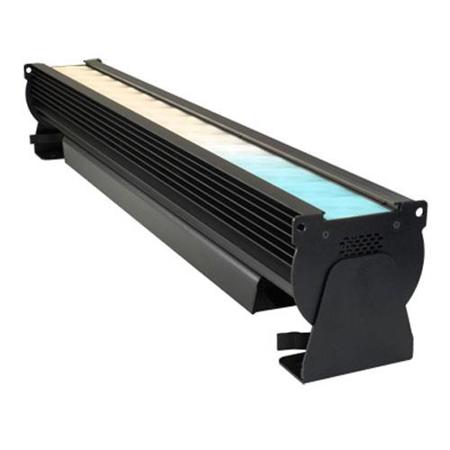

Chroma-Q Studio Force II 48 Studio Light with Trunnion, Black
See all Chroma-Q items

Chroma-Q Studio Force II 48 Studio Light with Trunnion, 3' TRUE1 to Male Edison Tail, Black

SKU: CQCHSF2V48

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Chroma-Q Studio Force II Specifications

  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 550VA

  • Power Factor

    0.97 at 120V AC, 0.92 at 240V AC

  • Power Consumption

    550W at 120V AC, 550W at 240V AC

  • Idle Power Consumption

    27W at 120V, AC 30W at 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maxi-mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Max Fixtures in Series

    3x Fixtures at 110V, 6x Fixtures at 240V

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Combined convection and forced air - 2 fan

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Construction

    Anodized aluminum extrusion

  • Built-In Hardware

    Quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Control Modes

    RGBW, RGB, KHi, HSi, Cine-Q. Grouping x1, X4, Odd/Even

  • Dimming Curve

    Linear

  • Hot Lumen Output (Combined)

    24,000 lm

  • Optics

    Fully homogenized lenses

  • Beam Angle

    22 deg. (approx.)

  • Beam Distribution

    Symmetrical direct illumination

  • CCT

    Adjustable 2800 - 6500K

  • Color Gamut

    Performance enhanced

  • CRI

    92 at 3200K
    94 at 4400K
    94 at 5600K

  • TM-30 Rf (Fidelity Index)

    92 at 3200K
    94 at 4400K
    90 at 5600K

  • LED Life

    L70 at 50,000 hours

  • Approvals

    CISPR 32:2015 /EN 55032:2015, CISPR 24:2010/EN 55024:2010, IEC 60598-2-17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003 R:2014-01

  • Dimensions (LxWxH)

    46.5 x 6.5 x 7.5" (1181.10 x 165.10 x 190.50mm) (without fixings)

  • Weight

    40 lbs (18.14kg)

About Chroma-Q Studio Force II

Using a homogenized LED source capable of delivering variable color temperature, plus/minus green shift control and the ability to produce deep saturated colors when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly wellin other situations demanding high quality tunable white light such as touring key lights, exhibitions, corporate events and theatre lighting. The Studio Force II uses the same ColorSure technologies found in other innovative Chroma-Q fixtures to deliver consistent color across fixtures. With an extreme output of up to 24,000 lumens, the Studio Force II 48battens evenly wash large areas, complemented by smooth, theatrical grade dimming.

Chroma-Q Studio Force II Features

  • Full spectrum tunable white light engine
  • High intensity homogenized output
  • Extremely smooth uniform wash
  • 2,800K - 6,500 K CCT Variable white
  • Variable mired shift (green shift)
  • Extreme output - 24,000 lumens
  • Superb smooth dimming
  • Ideal for TV Broadcast and film
  • PowerCON TRUE1 input and output for easy daisy chaining of fixtures
  • Hidden quick release lever for tilt adjustment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • Chroma-Q Studio Force II 48 Studio Light with Trunnion
  • Power Cord
  • Quick Start Guide
  • Chroma-Q 2 Year Parts and Labor Limited Warranty
