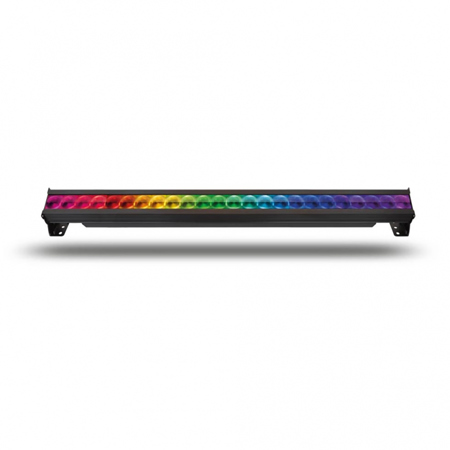

Chroma-Q Color Force II Plus 72 6' RGBA LED Fixture with Trunnion, TRUE1 to 15-5P Cable, White

SKU: CQFIIPLUS72 MFR: CQ1641-3100
Earn VIP Reward Points

Key Features

  • Create vibrant stage washes with the Color Force II Plus 72 RGBA LED fixture.
  • Achieve stunning lighting effects with adjustable color temperature from 1,000-10,000K.
  • Enjoy flicker-free operation for broadcast applications using this LED lighting system.
  • Easily control the Chroma-Q fixture via DMX for dynamic light shows and events.
  • Benefit from homogenized optics, providing a smooth, even light output with this fixture.
  • This durable fixture features an anodized aluminum build, perfect for touring & installations.
See More Product Details
Special Order?Estimated to Ship: 10/01/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Chroma-Q Color Force II Plus 72 Specifications

  • Color

    White

  • Construction

    Anodized aluminum extrusion

  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 800VA

  • Power Factor

    0.96 @ 120V AC, 0.99 @ 240V AC

  • Power Consumption

    800W @ 120V AC, 800W @ 240V AC

  • Inrush Current

    80A @ 120V AC

  • Idle Power Consumption

    29W @ 120V AC, 32W @ 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Max Fixtures in Series

    2x fixtures @110V, 4x Fixtures @220V

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Forced

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Built-In Hardware

    Quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Control Modes

    Strobe Options, RGBA, RGB, HSI, 1x, 2x, 3x, 4x, 6x, 8x, 12x, 24x, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6

  • Dimming Curve

    Theatrical

  • Variable Effects Engine

    Strobe, Strobe on Top, Strobe Random

  • Hot Lumen Output (Combined)

    27,000 lm

  • Optics

    Fully homogenized lenses

  • Beam Angle

    26 Degree (approx.)

  • Beam Distribution

    Asymmetrical direct illumination

  • CCT

    Adjustable 1,000 - 10,000K

  • Color Gamut

    Performance enhanced

  • CRI

    92

  • Lamp Life

    L70 at 50,000 hours

  • Approvals

    CISPR 22: 2006/EN55022: 2006 & CISPR 24: 1997/EN55024: 1998, ICES-003: 2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573: 2003; UL 8750

  • Dimensions (L x W x H)

    69.25 x 6.5 x 7.5" (175.89 x 16.51 x 19.05cm)

  • Weight

    53 lbs (24kg)

About Chroma-Q Color Force II Plus 72

Cyc, Wash & Effects LED Lighting, Simply Amazing!
Once again, Chroma-Q impresses with Color Force II Plus, the updated version of the renowned Color Force II professional luminaire.

The Color Force II Plus boasts enhanced brightness and a richer palette, while maintaining the same form factor and character as the market-leading original. The innovative optical system with individually controlled pixels provides smooth, beautiful and even coverage for any cyc or surface with no unsightly color shadowing.

Designed for a variety of applications where powerful and precise lighting is essential, including cyc, flood and wall washing up to 12m.

Homogenized Output - Superior Color Blend & No Unsightly Color-Mixing Shadows
Using the very latest fully homogenized optics found in the award winning Chroma-Q product range, the Color Force II Plus fixtures' output is a single, clean and pure beam of light, delivering a superior color blend with no unsightly color-mixing shadows.

The homogenized optics and improved Chroma-Q technology provide even brighter, richer, higher quality saturates and pastels, and a purer white - all from a single source.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Color Consistency
Proprietary calibration technologies ensure each Color Force II Plus leaves the factory color matched, delivering completely consistent colors unit to unit even side by side.

Even More Creative Control
The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths - providing independently controllable cells every 3 inches.

Simply Amazing!
When you are ready for new fixtures the choice remains simple. Schedule a demo of the Color Force II Plus today, and continue to be amazed.

RDM
Extensive RDM functionality is provided through wired or the optional LumenRadio CRM.

Chroma-Q Color Force II Plus 72 Features

  • Featuring Chroma-Q's proven award-winning technology
  • Fully useable along side original Color Force II
  • 27,000 hot lumens
  • Extremely smooth, uniform output
  • Unmatched cyc evenness
  • Homogenized RGBA color mixing
  • Rich saturated colors and smooth pastel colors
  • Pixel control to 3" (76mm) increments
  • High CRI of 92
  • Theatrical grade dimming
  • Rugged extruded aluminum body
  • Built-in power supply
  • Chroma-Q ColorSure calibration means superior fixture-to-fixture consistency
  • Works great in theatre, TV, concert touring, exhibitions, or corporate events
  • Optional internal LumenRadio
  • Touchscreen user interface

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create vibrant stage washes with the Color Force II Plus 72 RGBA LED fixture.
  • Achieve stunning lighting effects with adjustable color temperature from 1,000-10,000K.
  • Enjoy flicker-free operation for broadcast applications using this LED lighting system.
  • Easily control the Chroma-Q fixture via DMX for dynamic light shows and events.
  • Benefit from homogenized optics, providing a smooth, even light output with this fixture.
  • This durable fixture features an anodized aluminum build, perfect for touring & installations.
