This item is no longer available.
The Studio Force D 12 Phosphor has a color temperature of 5,600K, making it a daylight white fixture.
The Studio Force D 12 Phosphor can produce an extreme output of up to 8,210 lumens.
The Studio Force D 12 Phosphor does not come with accessories, but optional accessories like a spigot adaptor, egg crate louver, top hat, half top hat, and barn door can be purchased separately.
The Studio Force D 12 Phosphor offers a range of control options including a manual control mode, fanless operation, studio, and full modes. It also features a Color touch screen interface for easy operation.
The Studio Force D 12 Phosphor has a robust extruded aluminum body, designed for long-lasting durability.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Built-in
100-240V AC, 50-60 Hz, 160VA
0.998
150W
Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PowerCon
XLR 5-pin
ANSI E1.11 USITT DMX 512-A
Forced - 1 fan
0 Degree C to 40 Degree C
Anodised Aluminum extrusion
Black
Quick release lever for tilt adjustment
IP20
CISPR 22/EN55022 & CISPR 24/EN55024, CES-003 & FCC Part 15 Subpart B, CSA C22. No.166-M1983:R2008 UL 1573:2010; UL 8750:2009
13.2 x 7.5 x 8.6" (335 x 190 x 218mm)
9 lb (4kg)
2
24 Blue LEDs
48
1 channel Level, 1 channel Look Sel, Manual/Mstr, Slave, Look Store
Theatrical
8210
Remote phosphor panel
Softlight
Symmetrical direct illumination
5,600K (+/- 200K)
Performance enhanced
Up to 71
L70 at 50,000 hours

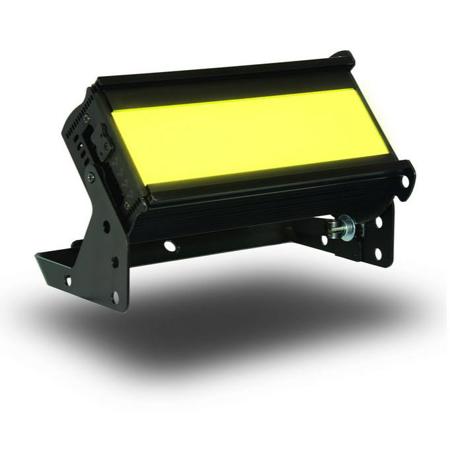

Overhaul your studio lighting with the Chroma-Q Studio Force D 12 Phosphor, a high-performance 5,600K CCT daylight white LED fixture that revolutionizes the standard for professional lighting. This cutting-edge technology, derived from the acclaimed Studio Force range, delivers an outstanding soft edge output that rivals traditional fluorescent fixtures, boasting an impressive luminosity of up to 8,210 lumens. Tailored for the demanding environments of TV, film, and broadcast studios, this fixture ensures impeccable color fidelity and consistency, thanks to its integration of ColorSure technology.
The Studio Force D 12 Phosphor is not just about power; it's about precision and versatility. Its custom optical design is engineered to produce an exceptionally smooth and uniform wash, eliminating harsh shadows and providing a gentle beam that complements any subject. The fixture's theatrical grade dimming mirrors the subtlety of traditional theater lighting instruments, while laboratory calibration aligns with the Black Body Locus for unmatched color accuracy.
Practicality meets sophistication in the design of the Studio Force D 12 Phosphor. The intuitive Color touch screen interface simplifies operation, allowing for quick adjustments and seamless transitions between manual control mode, fanless operation, studio, and full modes. These features give you unparalleled control over the lighting, ensuring that you can tailor the output to match the specific needs of any production.
The mechanical design of the Studio Force D 12 Phosphor is equally thoughtful. Quick release fixings that require no tools, integrated PowerCon and 5-pin DMX connections, and a built-in power supply facilitate rapid setup and efficient cable management. The robust extruded aluminum body is built to withstand the rigors of studio use, while flat end plates enable seamless wall-washing for expansive coverage.
Expand your creative possibilities with a suite of optional accessories, including a spigot adaptor, egg crate louver, top hat, half top hat, and barn door, each designed to enhance the functionality and adaptability of the Studio Force D 12 Phosphor. Whether you're illuminating a feature film set or broadcasting a live television show, this LED fixture is engineered to deliver exceptional performance and reliability.
