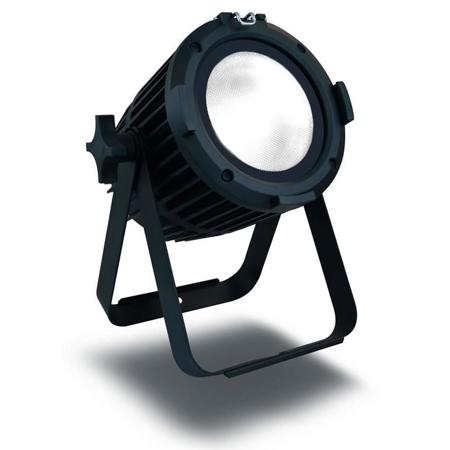

Chroma-Q Studio One 100 Daylight White Fixture, IP20, PowerCon and XLR-5pin In/Out

SKU: CQSONE100D

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What kind of light output does the Chroma-Q Studio One 100 Daylight White Fixture produce?

The Studio One 100 produces a high-quality white light. Its custom optical design and fully homogenized output generate a defined 18-degree beam, ensuring uniform and consistent lighting.

What kind of dimming features does the Studio One 100 have?

The Studio One 100 boasts theatrical-grade dimming, emulating the smooth dimming curve of traditional tungsten fixtures. It also offers adjustable dimming frequencies to ensure flicker-free operation on cameras.

What makes the Studio One 100 suitable for a variety of lighting applications?

This fixture is versatile due to its powerful output, smooth optics, silent operation, and compatibility with industry-standard accessories. It also includes an Infra-Red remote control for easy setup and operation.

Can the Studio One 100 be used with my existing production accessories?

Yes, the Studio One 100 accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats, making it flexible and compatible with your existing production inventory.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Chroma-Q Studio One 100 Specifications

Technical Specifications

Technical Specifications

Jump to...
  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 125VA

  • Power Factor

    0.5

  • Power Consumption

    60W @ 120V AC; 61W @ 230V AC

  • Idle Power Consumption

    3W @ 120V AC; 5W @ 230V AC

  • Typical Power & Current

    Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

  • Power Connectors In/Out

    powerCON

  • Data Connectors In/Out

    XLR 5-pin

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Convection

  • Operating Temperature

    0 Degree C to 40 Degree C

  • Construction

    Cast machined Aluminum

  • Color

    Black (custom colors available on request)

  • Built-In Hardware

    Split Yoke, 6.25" Accessory Holder

  • IP Rating

    IP20

  • Approvals

    CISPR 15/EN55015& EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598

  • Dimensions (Full Open Yoke)

    8.5 x 10.5 x 9" (214 x 267 x 232mm)

  • Weight

    8.5 lb (3.8kg)

Control & Photometric Data

Jump to...
  • LED Engines

    1

  • LEDs Per Engine

    Cold White

  • Control Modes

    1 channel DIMMER, Master, Slave

  • Wireless Control

    On/Off, Fade In, Fade Out

  • Diming Curve

    Theatrical

  • Hot Lumen Output (Combined)

    2500

  • Optics

    Fully homogenised

  • Beam Angle

    18 Degree

  • Beam Distribution

    Symmetrical direct illumination

  • CCT

    6,100K (+/- 200K)

  • CRI

    82

  • Lamp Life

    L70 at 50,000 hours

About Chroma-Q Studio One 100

Be captivated by the brilliance and power of the Chroma-Q Studio One 100 Daylight White Fixture. This LED PAR light is engineered to deliver superior white light quality, making it an indispensable tool for demanding lighting applications.

Harnessing the core LED technology from Chroma-Q's premium performance lighting range, this versatile fixture is designed to illuminate a variety of environments with its bright, powerful output. Whether you're setting the stage for a performance or creating the perfect ambiance for an event, the Studio One 100 is your go-to lighting solution.

Experience the smooth, homogenized optics of this high-quality fixture. Its custom optical design and fully homogenized output generate a defined 18-degree beam, ensuring uniform and consistent lighting.

The Studio One 100 also boasts theatrical-grade dimming, emulating the smooth dimming curve of traditional tungsten fixtures. This feature, combined with adjustable dimming frequencies, guarantees flicker-free operation on cameras, making it an ideal choice for TV, film, and studio applications.

This durable fixture is a true workhorse, equipped with advanced features like convection cooling for silent operation and a versatile mounting yoke. It's suitable for a wide array of lighting applications, from exhibitions to entertainment, complementing the popular Chroma-Q Studio Force and Studio Force Phosphor LED fixtures ranges.

Ease of use is at the forefront with the Studio One 100. Each fixture comes with a simple-to-use Infra-Red remote control, allowing for quick setup without the need for a lighting console. Enjoy instant access to preset color temperatures, on/off, dimming, and effects, saving you time and effort.

To maximize flexibility and compatibility with your existing production inventory, the Studio One 100 accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats.

Experience the bright, powerful, and versatile lighting solution that is the Chroma-Q Studio One 100 Daylight White Fixture.

Chroma-Q Studio One 100 Features

  • Extreme white output at 6,100K
  • Defined 18 Degree beam
  • Extremely uniform wash
  • Fully homogenised beam
  • Superior build quality
  • High CRI of 82
  • Camera friendly - Flicker free operation
  • Floor, truss or wall mountable
  • Convection cooled for near silent running
  • Theatrical grade dimming

Key Features

  • Superior LED PAR light delivering high-quality white light for demanding applications
  • Smooth, homogenized optics with a defined 18-degree beam for uniform lighting
  • Theatrical-grade dimming and adjustable frequencies for flicker-free operation
  • Equipped with convection cooling for silent operation and a versatile mounting yoke
  • Includes a simple-to-use Infra-Red remote control for quick and easy setup
  • Compatible with industry-standard 6.25" accessories for maximum flexibility

What's in the box:

  • Studio One 100 Daylight White Fixture
  • Power Cord
  • Power Connector
  • Color Frame
  • Quick Start Guide
  • IR Remote
  • Chroma-Q 1 Year Limited Warranty
