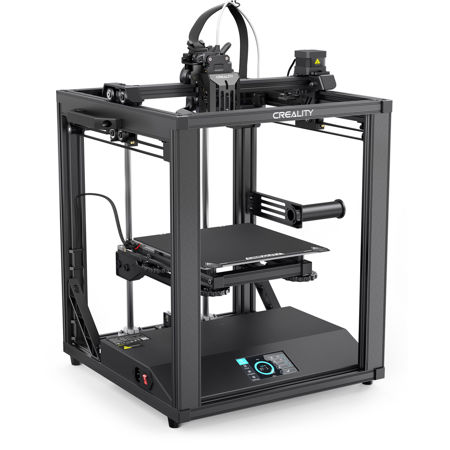

Creality Ender-5 S1 3D Printer

Speedy to Realize Creative Ideas
Upgraded motion system for 2000mm/sq. s acceleration and up to 250mm/s (5 times) printing speed. Feel the speed and passion of 3D printing now. Each X/Y/Z axis is driven by a high-precision stepper motor. A steel transmission shaft syncs the two Y-axis belts. High-torque Y-axis 42-48 motor for responsive and precise motion.

Higher Efficiency and More Eco-friendly
It slashes printing time for all types of models. Higher efficiency and less power consumption.

Stand Firmly to Print Quality Models
An all-metal cube frame goes with the classic Cartesian structure. The stability is enhanced by thick linear shafts, extra gussets, two cantilevers, and silicone bed mounts.

Direct Extrusion Adapted to Flexible Filaments
The all-metal "Sprite" direct extruder features dual gears of a 1:3.5 gear ratio. It delivers a powerful and uniform 80N extrusion force. Way better when printing with flexible filaments like TPU.

Hotend for High-temp Printing
Titanium Alloy Heatbreak: Low thermal conductivity for blocking heat creep. Able to tame up to 300 Degree C.

• Corrugated Heatsink: 2.5 times surface area that is rapidly air-cooled by a silent axial flow fan.
• Large Melting Chamber: 50cubic mm melting chamber surrounded by a large 4000cubic mm heater block. It fully melts the filament for smooth feeding.

Get a Cool Model Promptly
The special "Urus" air ducts channel the strong wind generated by a large 5015 fan to cool the freshly printed section directly. The deposited hot material will harden and bond up immediately, thus less drooping or warping caused by overheating. It gives better overhangs, bridges, and more details overall.

Explore with High-temp Filaments
A whole new world opens, as a variety of heat-resistant engineering plastic filaments are brought into the game.

Regular Filaments: PLA, PETG, TPU. High-temp filaments: ABS, PC, ASA, HIPS.

Quicker Expert-Level Calibration
Level the bed quickly by CR Touch auto-leveling and auxiliary leveling, or offset the Z-axis height at 0.01mm accuracy. Get the perfect first layer with less hassle.

Straightforward Touch Screen UI
4.3-inch touch screen featuring a wide viewing angle, sensitive response, and a tabbed user interface. A temperature PID control page is also added for easy adjustment.

Print in Multiple Ways

Print from Memory Card
Insert an Memory Card and print directly.

Print from PC
Connect to a PC via a USB-C cable.

Cloud Printing
Connect to Creality Cloud App via Wi-Fi.

Sticky and Bendable PC Build Surface
The PC spring steel sheet has two notches and a magnetic base for quick installation. The frosted PC surface is sticky to models. And, the model can be removed right away with a slight bend.

Electrical Safety and Reliability
Secure aviation connector. Encased 350W power adapter. And, no more loose wires and cables with the nylon wire harness sleeve. All for safety and tidiness.

Quality Designs for Better Experience

Modular Design
Quick assembly in 10 minutes

Convenient Handles
Easy to move around

V-wheel Cover
Preventing dust and foreign matters
