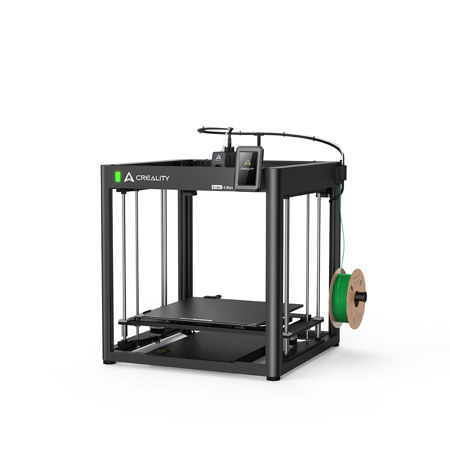

Creality Ender-5 Max 3D Printer

Maximize Your Productivity

The Efficiency & Reliability You Need

Superior Print Quality
The print quality of Ender-5 Max is unmatched. The print dimensions are equal to your model design and the printed surface is smooth without defects. The layer bonding is consistent and solid from the first layer to the last. It will surely exceed the requirements of your clients.

Excellence Starting from the First Layer
Ender-5 Max has adopted a 64-point fully automatic bed leveling system to obtain a perfectly even first layer. Your high-quality print will start from this great first layer without your intervention.

Beefy Frame & Precise Linear Rail
The structure is beefed up with enlarged die-cast aluminum alloy for the frame parts. Also, the X-axis features a precise linear rail that slides smoothly without deviation. The result is high-quality prints one after another.

More Strength from Dual Z-axis Motors
Ender-5 Max features two independently-motorized Z-axes comprising two pairs of leadscrews, and each Z-axis is assisted by 2 linear rods for precision. Together, they can effortlessly carry a model of 5kg up and down. No more layer shifts or obtruding layer lines.

Wide Range of Operating Temperatures
Ender-5 Max provides stable performance at temperatures ranging from 5-40 Degree C. Its exceptional performance won't be interrupted in fluctuating harsh temperatures and the toolhead stays clog-free.

Exploit the Max Efficiency

Lightning Fast for Time Efficiency
Ender-5 Max is a fast worker even in the CoreXY league. Both the X and Y-axis use a 42-76 stepper motor that offers unprecedented power for movement. Printing as fast as 700 mm/s, it will deliver prints to you in no time.

• 500 mm/s Typical Speed for Quality
• 700 mm/s Maximum Speed
• 20000 mm/sq. s Maximum Acceleration

Expanded Capacity to Gain Much More
The enormous 400 x 400 x 400mm build volume of Ender-5 Max is rarely seen in today's professional bed droppers. Whether you are printing small parts in batches or creating a huge model in one piece, Ender-5 Max is the no-brainer for its industry-level print volume.

Reliable Extruder, Minimal Downtime
The extruder has dual tempered gears, which have endured 500 hours of durability tests for continuous extruding. You can trust it for 24/7 production without any downtime for inspection or maintenance.

1000W Heatbed Heats Up Rapidly
The embedded 1000W heater can heat the aluminum alloy heatbed to 80 Degree C (maximum 100 Degree C) in just 200 seconds, suitable for PLA, PETG, PA, ABS, ASA, and more. You can now start your production quicker and spend less time waiting.

All-New Epoxy Build Plate
It entails a lower temperature for bed adhesion, boosting the overall power efficiency. The new build plate is also bendable so you can easily retrieve the finished prints.

Tailor-made for Print Farms

Manage Multiple Printers on One PC
Ender-5 Max is connected with fine-tuned profiles and filament/nozzle presets in the Creality Print slicer which also allows you to group up and manage multiple printers on a PC interface over WLAN. Your production will be organized and efficient.

Status Indication by a 3-color Light
The indicator light, visible from a distance of up to 10 meters, will inform you of the exact machine status. You don't have to check each printer closely to know what is going on with your printers anymore.

Adaptive to Input Voltages Worldwide
Ender-5 Max supports 100V-240V input voltages. It can operate stably despite locations - say goodbye to manual voltage selection. Also, the built-in double safety fuses on the heatbed will keep you and your properties safe and sound at all times.

More Empowering Features

Auto-Load/Unload Filament
Switch filaments much more easily.

Active Input Shaping
Reduce vibrations and ringing artifacts.

8G Large ROM
Store more print files for mass production.

Silent Mode
Noise level <= 55 dB, less annoyance to your ear.

Wi-Fi Connection
Transfer files more conveniently.
