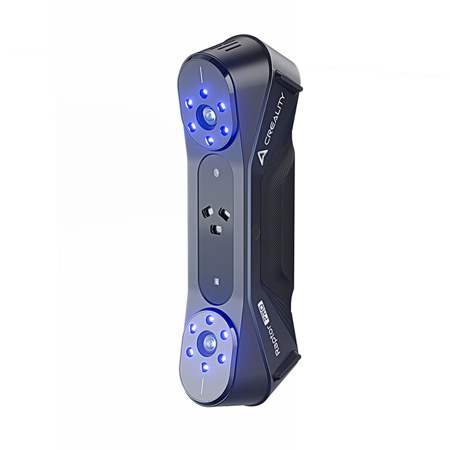

Creality Raptor Pro Blue Light 3D Scanner

Best Partner for Auto Custom

Two Blue Light Modes with Seamless Switching
22 cross laser lines for scanning medium to large objects quickly, 7 parallel laser lines for partial HD scanning, with dual modes that can be freely switched, achieving both scanning efficiency and precision.

22 Cross Laser Lines - Scan Medium to Large Objects Quickly
Provide comprehensive coverage for medium/large objects, minimizing the need for multiple passes or redundant scans.

7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details.

High-quality 660,000 points/s, Fast Scan Speed
Process up to 660,000 points per second, making it ideal for quickly scanning medium to large objects.

High Scanning Speed for Smooth Scanning
• Laser Line Scanning Scan frame rate can reach up to 60fps
• Infrared Structured Light Scanning Scan frame rate can reach up to 30fps

Objects Between 0.2-157"/ 5-4000mm
Combining blue laser lines with infrared structured light, Raptor Pro can scan objects ranging in size from 5x5x5 cu. mm - 4000x4000x4000 cu. mm. Effortlessly scanning automobile components, engineering parts, molds, human bodies and more.

NIR Structured Light Scanning
Scanning objects ranging from 150x150x150-2000x2000x2000 cu. mm

Markerless Scanning
Raptor Pro utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.

Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scan hair, a human body scan only needs as quick as 2 minutes.

Wider Applications, Better Performance

Outdoor Scanning
Blue laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.

• 7-line lasers<=50,000 lux
• 22 cross lines<=100,000 lux

Anti-shaking
Equipped with One-Shot 3D imaging technology, Raptor Pro is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

Peaceful Scanning with LED Lights
Blue light provides supplementary light for laser line scanning. White light is used to enhance the brightness of color textures.

Scan Black/Metal Objects Without Sprays
With strong material adaptability, you can scan black/metal objects without sprays.

High Performance Structure, Details Revealed
Advanced temperature compensation algorithm, it can Improve temperature stability and ensure accuracy.

• 2.3 Million Pixel 3D Imaging Camera
• Low distortion lens, less than 5%
• 20mm large depth of field lens
• 9-elements glass lens
• Metal lens barrel and holder

24-bit Full-Color Scanning in All Modes
With a High resolution RGB camera, it supports 24-Bit full-color texture capturing in all modes.

Lightweight and Portable - Weighs only 405g
• Ring indicator light
• Paired with buttons, getting straight forward operation
• Anti-slip sleeve and detachable lanyard

Supports Expandable Scan Bridge
Allowing flexible switching between wired and wireless scanning modes for a more liberating scanning experience.

New Intuitive Software with Powerful Features
CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.

• 50% Faster Processing Time
• Partial HD Scanning
• Global Marker Scanning
• Point Cloud Editing
• Face and Body Mode
• Easy Calibration

Seamless Integration to Inspection, Design, 3D Printing Software's
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the work-flow efficiency.

• SiemensNX
• PolyWorks
• Catia
• Creo
• Sold Works
• Maya
• 3DMax
• Rhino
• Cinema4D
• ZBrush
• Meshmixer
• Mudbox
• Meshlab
• Unreal Engine
• fusion 360
• Quicksurface
• blender
• Geomagic Wrap
• Design X

Applications
• Reverse Engineering
• Inspection
• Automotive
• Manufacturing
• Art & Antique
