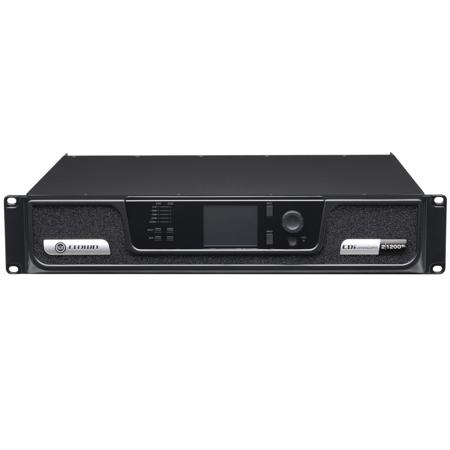

Crown Audio CDi DriveCore Series 2-Channel 1200W Professional Power Amplifier, Analog + BLU link Input

SKU: CRCDI21200BL MFR: CDI 2|1200BL
Earn VIP Reward Points

Key Features

  • Experience high power output with this Crown Audio power amplifier, perfect for live sound.
  • Achieve pristine audio clarity with a low THD, ensuring your sound is always crystal clear.
  • Enjoy a high signal-to-noise ratio for pure, unadulterated sound reproduction every time.
  • Versatile impedance matching supports a wide range of speaker setups for any venue size.
  • Benefit from reliable protection circuitry, safeguarding your amplifier from damage.
  • Utilize the BLU link input for seamless digital audio integration in complex setups.
See More Product Details
Special Order Item?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Crown Audio CDi 2|1200BL Specifications

  • Number of Channel

    2

  • Output Per Channel

    1200W

  • Digital Signal Processing

    96kHz, 32-bit floating point

  • Voltage Gain

    34dB (at maximum level setting) 4/8Ohms, 70Vrms and 100Vrms Operation

  • Frequency Response

    +/-0.25dB (8Ohms, 20Hz - 20kHz)

  • BLU link Signal-to-Noise Ratio

    >108dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Total Harmonic Distortion

    0.35% (at full rated power, from 20Hz - 20kHz)

  • Analog Input Signal to Noise Ratio

    >104dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Intermodulation Distortion

    <=0.35% (60Hz and 7kHz at 4:1, from - 30dB to full rated power

  • Damping Factor

    >1000 (20Hz to 100Hz)

  • Crosstalk

    >80dB (below rated power, 20Hz to 1kHz)

  • Common Mode Rejection

    >70dB (20Hz to 1kHz, typical)

  • DC Output Offset

    +/-10mV (with inputs shorted)

  • Input Impedance

    10KOhms (nominally balanced), 5KOhms (nominally unbalanced)

  • Maximum Input Level

    +20dBU (Low Amp Gain Mode)

  • Required AC Mains

    100 - 240V (approx.), 50/60Hz (+/-10%)

  • Cooling

    Continuously variable speed forced air, front-to-back airflow

  • Power Supply Connector

    15A IEC connector, 100 - 240V

  • Load Impedance Stereo/Dual Mode

    2Ohms - 16Ohms; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4Ohms - 16Ohms; 140Vrms and 200Vrms

  • Maximum Fan Noise

    54 dBA (re dB SPL at 1M)

  • Weight

    17.2 lbs (7.80kg)

  • UPC Code

    00691991006951

About Crown Audio CDi 2|1200BL

Discover the CDi DriveCore Series 2-Channel 1200W Professional Power Amplifier, a revolutionary advancement in audio amplification technology. This high-performance amplifier boasts a rich feature set, offering exceptional value for professional installations. Drawing on the advanced technology of our flagship Crown DriveCore Install series, the CDi DriveCore 2|1200BL is designed to deliver streamlined functionality in large-scale settings such as cinemas, houses of worship, hotels, and cruise lines.

This 2-channel amplifier is engineered for user-friendly operation across a range of applications. It features network control and monitoring capabilities, high-level Digital Signal Processing (DSP), a user-friendly front-panel interface, and the capacity to drive up to 100Vrms speaker loads without the need for a transformer.

The 2|1200BL model is equipped with BLU link, a feature that enables the transmission and reception of channels over HARMAN's digital audio BUS. To facilitate quicker and easier installations, the entire CDi DriveCore line comes pre-loaded with JBL speaker tunings.

Experience the power of Crown's proprietary DriveCore technology, which eliminates hundreds of components within each amplifier. This innovative design reduces component value variability, enhances reliability, and delivers incredible audio fidelity in an efficient package.

Control, configure, and monitor the CDi DriveCore through Harman's HiQnet Audio Architect software via a standard TCP/IQ network. The onboard Digital Signal Processor allows for custom configuration and includes features such as an Input Router, Input Delay of up to 1000ms, 8-band Input Parametric EQ, Crossover, 8-band Output Parametric EQ, Output Delay of up to 100ms, and a LevelMAX Limiter.

The BLU link feature allows for both transmission and reception of channels over Harman's 256 channel, fault-tolerant audio BUS. Each output channel is capable of providing either 70V or 100V for high impedance applications. The amplifier can be fully configured using an intuitive front-panel interface, and a combined GPIO/AUX Port allows for preset recall, channel muting, fault monitoring, and amplifier power control.

Experience the power and versatility of the CDi DriveCore Series 2-Channel 1200W Professional Power Amplifier, the perfect solution for your professional audio amplification needs.

Crown Audio CDi 2|1200BL Features

  • Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip forbetter performance, lower power consumption, and improved reliability
  • BLU link digital audio transport - Up to 256 Channels of digital audio over Category 5e cabling
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • Color LCD and front panel user interface for amplifier configuration, control, and monitoring
  • Programmable GPIO (general purpose input/output) control port
  • Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAX limiters)
  • Support for importing of FIR filter coefficients
  • 20 device presets - 1 factory and 19 user
  • 96kHz/32-bit floating-point signal processing
  • Universal power supply with PFC for reduced current draw and industry-leading efficiency
  • Power saving modes
  • Remote power off - Sleep mode activated via AUX port
  • 70Vrms/100Vrms direct drive
  • Each channel independently configurable for low z or high z operation
  • Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage and high-frequency overload
  • Three year, no-fault transferable warranty - Your investment is fully protected
  • Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • Support for BSS Audio Soundweb Contrio Ethernet wall controllers
  • Included speaker tunings for various JBL speaker models

Product Documents

User Manual

Key Features

  • Experience high power output with this Crown Audio power amplifier, perfect for live sound.
  • Achieve pristine audio clarity with a low THD, ensuring your sound is always crystal clear.
  • Enjoy a high signal-to-noise ratio for pure, unadulterated sound reproduction every time.
  • Versatile impedance matching supports a wide range of speaker setups for any venue size.
  • Benefit from reliable protection circuitry, safeguarding your amplifier from damage.
  • Utilize the BLU link input for seamless digital audio integration in complex setups.

What's in the box:

  • Crown Audio CDi DriveCore Series 2-Channel 1200W Professional Power Amplifier
  • AC Power Cord
  • Crown Audio 6 Year Warranty
