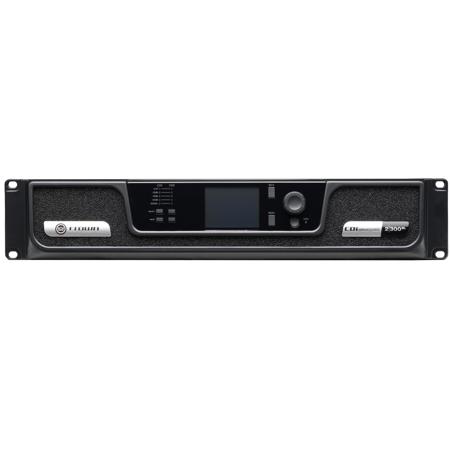

Crown Audio CDi DriveCore Series 2-Channel 300W Professional Power Amplifier, Analog + BLU link Input

SKU: CRCDI2300BL MFR: CDI 2|300BL
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Crown Audio power amplifier's low 0.35% THD.
  • This 2-channel power amplifier delivers 300W per channel for robust, clear sound.
  • Optimize sound with the built-in 96kHz, 32-bit floating point digital signal processing.
  • Enjoy versatile connectivity with analog inputs and BLU link for networked audio.
  • Ensure stable performance with a high damping factor exceeding 1000 from 20Hz-100Hz.
  • Rely on integrated protection circuits for amp reliability in demanding live sound setups.
See More Product Details
Special Order Item?Estimated to Ship: 10/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Crown Audio CDi 2|300BL Specifications

  • Number of Channel

    2

  • Output Per Channel

    300W

  • Digital Signal Processing

    96kHz, 32-bit floating point

  • Voltage Gain

    34dB (at maximum level setting) 4/8Ohms, 70Vrms and 100Vrms Operation

  • Frequency Response

    +/-0.5dB (8Ohms, 20Hz - 20kHz)

  • BLU link Signal-to-Noise Ratio

    >108dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Total Harmonic Distortion

    0.35% (at full rated power, from 20Hz - 20kHz)

  • Analog Input Signal to Noise Ratio

    >104dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Intermodulation Distortion

    <=0.35% (60Hz and 7kHz at 4:1, from - 30dB to full rated power

  • Damping Factor

    >1000 (20Hz to 100Hz)

  • Crosstalk

    >80dB (below rated power, 20Hz to 1kHz)

  • Common Mode Rejection

    >70dB (20Hz to 1kHz, typical)

  • DC Output Offset

    +/-10mV (with inputs shorted)

  • Input Impedance

    20KOhms (nominally balanced), 10KOhms (nominally unbalanced)

  • Maximum Input Level

    +20dBU (Low Amp Gain Mode)

  • Required AC Mains

    100 - 240V (approx.), 50/60Hz (+/-10%)

  • Cooling

    Continuously variable speed forced air, front-to-back airflow

  • Power Supply Connector

    Standard IEC type 320 inlet for detachable connector 100 - 240V (approx.)

  • Load Impedance Stereo/Dual Mode

    2Ohms - 16Ohms; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4Ohms - 16Ohms; 140Vrms and 200Vrms

  • Maximum Fan Noise

    51 dBA (re dB SPL at 1M)

  • Weight

    14.56 lbs (6.60kg)

  • UPC Code

    00691991006395

About Crown Audio CDi 2|300BL

Why settle for less when you can experience the pinnacle of amplification with the CDi DriveCore Series 2-Channel 300W Professional Power Amplifier, Analog + BLU link Input This state-of-the-art amplifier is a testament to technological evolution, offering a harmonious blend of high-performance, a comprehensive feature set, and cost-effectiveness.

Drawing from the advanced technology of our flagship Crown DriveCore Install series, the CDi DriveCore 2|300BL is designed to deliver superior functionality in a wide range of small to medium-sized installations. Whether it's a bustling restaurant or a high-end retail store, this 2-channel amplifier is your go-to solution for impeccable sound quality.

One of the standout features of the 2|300BL is its network control and monitoring capability. Thanks to Harman's HiQnet Audio Architect software, you can easily control, configure, and monitor the amplifier through a standard TCP/IQ network.

The 2|300BL also boasts a high-level Digital Signal Processor (DSP) in each amplifier. This allows for custom configuration and includes a host of integrated features such as an Input Router, Input Delay of up to 1000ms, 8-band Input Parametric EQ, Crossover, 8-band Output Parametric EQ, Output Delay of up to 100ms, and a LevelMAX Limiter.

Adding to its versatility, the 2|300BL comes equipped with BLU link, enabling it to send and receive channels over HARMAN's digital audio BUS. This feature enhances the amplifier's connectivity, making it a valuable addition to any professional audio setup.

The CDi DriveCore 2|300BL is capable of driving up to 100Vrms speaker loads without the need for a transformer. This is made possible by Crown's proprietary DriveCore technology, which eliminates hundreds of components within each amplifier, thereby reducing component variability, enhancing reliability, and delivering exceptional audio fidelity.

For user convenience, the amplifier features an intuitive front-panel interface, allowing for complete configuration of the device. Additionally, the amplifier comes pre-loaded with JBL speaker tunings, facilitating quicker and easier installations.

In summary, the CDi DriveCore Series 2-Channel 300W Professional Power Amplifier, Analog + BLU link Input is a powerful, versatile, and user-friendly device that delivers unparalleled audio performance. It's more than just an amplifier; it's a testament to the power of innovative technology.

Crown Audio CDi 2|300BL Features

  • Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip forbetter performance, lower power consumption, and improved reliability
  • BLU link digital audio transport - Up to 256 Channels of digital audio over Category 5e cabling
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • Color LCD and front panel user interface for amplifier configuration, control, and monitoring
  • Programmable GPIO (general purpose input/output) control port
  • Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAX limiters)
  • Support for importing of FIR filter coefficients
  • 20 device presets - 1 factory and 19 user
  • 96kHz/32-bit floating-point signal processing
  • Universal power supply with PFC for reduced current draw and industry-leading efficiency
  • Power saving modes
  • Remote power off - Sleep mode activated via AUX port
  • 70Vrms/100Vrms direct drive
  • Each channel independently configurable for low z or high z operation
  • Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage and high-frequency overload
  • Three year, no-fault transferable warranty - Your investment is fully protected
  • Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • Support for BSS Audio Soundweb Contrio Ethernet wall controllers
  • Included speaker tunings for various JBL speaker models

Product Documents

User Manual

Key Features

  • Experience pristine audio with this Crown Audio power amplifier's low 0.35% THD.
  • This 2-channel power amplifier delivers 300W per channel for robust, clear sound.
  • Optimize sound with the built-in 96kHz, 32-bit floating point digital signal processing.
  • Enjoy versatile connectivity with analog inputs and BLU link for networked audio.
  • Ensure stable performance with a high damping factor exceeding 1000 from 20Hz-100Hz.
  • Rely on integrated protection circuits for amp reliability in demanding live sound setups.

What's in the box:

  • Crown Audio CDi DriveCore Series 2-Channel 300W Professional Power Amplifier
  • AC Power Cord
  • Crown Audio 6 Year Warranty
