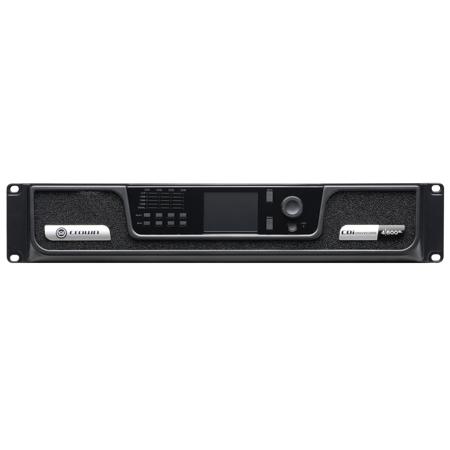

Crown Audio CDi DriveCore Series 4-Channel 600W Professional Power Amplifier, Analog + BLU link Input

SKU: CRCDI4600BL MFR: CDI 4|600BL
Earn VIP Reward Points

Key Features

  • Experience high power output with this Crown Audio power amplifier, delivering 600W per channel.
  • Enjoy clean sound quality thanks to the advanced 96kHz, 32-bit floating point DSP in this amplifier.
  • Versatile input/output options include analog and BLU link, perfect for diverse audio setups.
  • Ensure reliable performance with a frequency response of +/-0.25dB (8 Ohms, 20Hz - 20kHz).
  • Built for durability, this robust power amplifier is designed to withstand rigorous use.
  • Optimize your sound with built-in DAC & DSP, offering network audio capabilities for seamless control.
See More Product Details
Special Order Item?Estimated to Ship: 09/01/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Crown Audio CDi 4|600BL Specifications

  • Number of Channel

    4

  • Output Per Channel

    600W

  • Digital Signal Processing

    96kHz, 32-bit floating point

  • Voltage Gain

    34dB (at maximum level setting) 4/8Ohms, 70Vrms and 100Vrms Operation

  • Frequency Response

    +/-0.25dB (8Ohms, 20Hz - 20kHz)

  • BLU link Signal-to-Noise Ratio

    >108dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Total Harmonic Distortion

    0.35% (at full rated power, from 20Hz - 20kHz)

  • Analog Input Signal to Noise Ratio

    >104dB (ref. rated power, 100V, 20Hz - 20kHz)

  • Intermodulation Distortion

    <=0.35% (60Hz and 7kHz at 4:1, from - 30dB to full rated power

  • Damping Factor

    >1000 (20Hz to 100Hz)

  • Crosstalk

    >80dB (below rated power, 20Hz to 1kHz)

  • Common Mode Rejection

    >70dB (20Hz to 1kHz, typical)

  • DC Output Offset

    +/-10mV (with inputs shorted)

  • Input Impedance

    10KOhms (nominally balanced), 5KOhms (nominally unbalanced)

  • Maximum Input Level

    +20dBU (Low Amp Gain Mode)

  • Required AC Mains

    100 - 240V (approx.), 50/60Hz (+/-10%)

  • Cooling

    Continuously variable speed forced air, front-to-back airflow

  • Power Supply Connector

    15A IEC connector, 100 - 240V

  • Load Impedance Stereo/Dual Mode

    2Ohms - 16Ohms; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4Ohms - 16Ohms; 140Vrms and 200Vrms

  • Maximum Fan Noise

    51 dBA (re dB SPL at 1M)

  • Weight

    16.3 lbs (7.39kg)

About Crown Audio CDi 4|600BL

While the CDi DriveCore Series represents a significant advancement in audio amplification technology, the 4-Channel 600W Professional Power Amplifier stands out with its blend of high-performance capabilities, comprehensive features, and cost-effectiveness. Drawing on technology from Crown Audio's flagship Installed Sound amplifier, the DriveCore Install series, this professional power amplifier is designed to deliver superior sound quality in medium-sized installations, including cinemas, houses of worship, bars, and lounges.

The 4|600BL model is a 4-channel amplifier equipped with network control and monitoring, high-level Digital Signal Processing (DSP), and a user-friendly front-panel interface. It can drive up to 100Vrms speaker loads without the need for a transformer, making it a versatile choice for various audio setups.

One of the standout features of this amplifier is the inclusion of BLU link, which enables the transmission and reception of channels over HARMAN's digital audio BUS. This feature, coupled with the pre-loaded JBL speaker tunings, simplifies and accelerates the installation process.

The CDi DriveCore series is powered by Crown's proprietary DriveCore technology, which significantly reduces the number of components in each amplifier. This not only enhances reliability but also improves audio fidelity through an efficient design.

Through Harman's HiQnet Audio Architect software, users can control, configure, and monitor the CDi DriveCore via a standard TCP/IQ network. The onboard DSP allows for custom configuration and includes integrated features such as an Input Router, Input Delay of up to 1000ms, 8-band Input Parametric EQ, Crossover, 8-band Output Parametric EQ, Output Delay of up to 100ms, and LevelMAX Limiter.

Each output channel is capable of providing either 70V or 100V for high impedance applications, and the amplifier can be fully configured via an intuitive front-panel interface. The combined GPIO/AUX Port allows for preset recall, channel muting, fault monitoring, power on/off, and more. With pre-loaded speaker tunings for quicker setup and installation, the CDi DriveCore Series 4-Channel 600W Professional Power Amplifier is a high-quality, powerful, and advanced solution for professional audio needs.

Crown Audio CDi 4|600BL Features

  • Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip forbetter performance, lower power consumption, and improved reliability
  • BLU link digital audio transport - Up to 256 Channels of digital audio over Category 5e cabling
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • Color LCD and front panel user interface for amplifier configuration, control, and monitoring
  • Programmable GPIO (general purpose input/output) control port
  • Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAX limiters)
  • Support for importing of FIR filter coefficients
  • 20 device presets - 1 factory and 19 user
  • 96kHz/32-bit floating-point signal processing
  • Universal power supply with PFC for reduced current draw and industry-leading efficiency
  • Power saving modes
  • Remote power off - Sleep mode activated via AUX port
  • 70Vrms/100Vrms direct drive
  • Each channel independently configurable for low z or high z operation
  • Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage and high-frequency overload
  • Three year, no-fault transferable warranty - Your investment is fully protected
  • Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • Support for BSS Audio Soundweb Contrio Ethernet wall controllers
  • Included speaker tunings for various JBL speaker models

Product Documents

User Manual

Key Features

  • Experience high power output with this Crown Audio power amplifier, delivering 600W per channel.
  • Enjoy clean sound quality thanks to the advanced 96kHz, 32-bit floating point DSP in this amplifier.
  • Versatile input/output options include analog and BLU link, perfect for diverse audio setups.
  • Ensure reliable performance with a frequency response of +/-0.25dB (8 Ohms, 20Hz - 20kHz).
  • Built for durability, this robust power amplifier is designed to withstand rigorous use.
  • Optimize your sound with built-in DAC & DSP, offering network audio capabilities for seamless control.

What's in the box:

  • Crown Audio CDi DriveCore Series 4-Channel 600W Professional Power Amplifier
  • AC Power Cord
  • Crown Audio 6 Year Warranty
