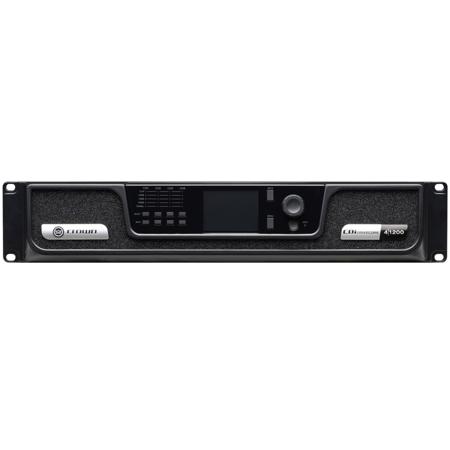

Crown Audio CDi 4X1200 DriveCore Series 4-Channel 4x1200 Power Amplifier, Analog Input
SKU: CRCDI4X1200 MFR: CRN-CDI4X12VMUS
Earn VIP Reward PointsKey Features
- Experience powerful, reliable sound with this Crown Audio 4-channel power amplifier.
- This amplifier's high power output delivers pristine audio for any professional sound setup.
- Enjoy a clean, clear sound with a low THD, perfect for critical listening applications.
- Achieve superior audio fidelity with a high signal-to-noise ratio for dynamic soundscapes.
- Easily integrate into existing systems with a balanced input impedance for versatile use.
- The high damping factor ensures tight, controlled bass response in your sound reinforcement.
Special Order?Estimated to Ship: 09/08/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$499.99
3 Year
$649.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Crown Audio CDI 4X1200
Explore the advanced capabilities of the CDi 4X1200 DriveCore Series 4-Channel Power Amplifier, a powerful and high-quality audio solution designed by Crown Audio. This durable and efficient amplifier is a revolution in audio amplification technology, offering a perfect blend of superior performance, a comprehensive feature set, and cost-effectiveness.
Drawing on technology from Crown Audio's flagship Installed Sound amplifier, the DriveCore Install series, the CDi DriveCore 4|1200 is optimized to deliver streamlined functionality in large-scale installations. It's the ideal choice for diverse settings, including cinemas, houses of worship, hotels, and cruise lines.
This 4-channel amplifier is equipped with network control and monitoring capabilities, high-level Digital Signal Processing (DSP), and a user-friendly front-panel interface. It's designed to drive up to 100Vrms speaker loads without the need for a transformer, making it a versatile addition to any professional audio setup.
The CDi DriveCore series comes pre-loaded with JBL speaker tunings, ensuring quicker and easier installations. Crown's proprietary DriveCore technology significantly reduces the number of components within each amplifier, enhancing reliability and delivering incredible audio fidelity from a compact and efficient design.
Through HARMAN's HiQnet Audio Architect software, the CDi DriveCore offers comprehensive control, configuration, and monitoring via a standard TCP/IQ network. The on-board DSP allows for custom configuration and includes integrated features such as an Input Router, Input Delay of up to 1000ms, an 8-band Input Parametric EQ, a Crossover, an 8-band Output Parametric EQ, an Output Delay of up to 100ms, and a LevelMAX Limiter.
Each output channel of this advanced power amplifier is capable of providing either 70V or 100V for high impedance applications. The front-panel interface allows for complete configuration of the amplifier, while the combined GPIO/AUX Port enables preset recall, channel muting, fault monitoring, and power control.
Experience the power and precision of the CDi 4X1200 DriveCore Series 4-Channel Power Amplifier, a testament to Crown Audio's commitment to delivering high-quality, professional audio equipment.
Crown Audio CDI 4X1200 Features
- Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability
- Supports configuration and control using HiQnet Audio Architect
- Monitoring and control over TCP/IP
- Color LCD and front panel user interface for amplifier configuration, control, and monitoring
- Programmable GPIO (general purpose input/output) control port
- Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAXTM limiters)
- Support for importing of FIR filter coefficients
- 20 device presets - 1 factory and 19 user
- 96kHz/32-bit floating-point signal processing
- Universal power supply with PFC for reduced current draw and industry-leading efficiency
- Power saving modes
- Remote power off - Sleep mode activated via AUX port
- 70Vrms/100Vrms direct drive
- Each channel independently configurable for low z or high z operation
- Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage, and high-frequency overload
- Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
- Included speaker tunings for various JBL speaker models
- Support for BSS Audio Soundweb Contrio Ethernet wall controllers
