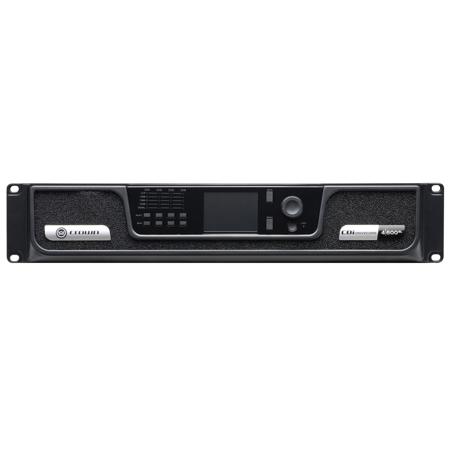

Crown Audio CDi 4X600BL DriveCore Series 4-Channel 4x600W Power Amplifier with Analog & BLU Link Input
SKU: CRCDI4X600BL MFR: CRN-CDI4X6BLVMUS
Earn VIP Reward Points
Key Features
- Experience powerful, reliable audio with this Crown Audio 4-channel power amplifier.
- This power amp delivers 600W per channel at 8 ohms, perfect for live sound applications.
- Enjoy pristine audio quality with a low THD of 0.35%, ensuring clear sound reproduction.
- Utilize the built-in DSP for precise audio shaping and optimal sound performance.
- With a high damping factor, this amplifier provides superior speaker control for tight bass.
- The BLU Link input offers seamless network audio integration for streamlined setups.
Special Order?Estimated to Ship: 08/08/2025
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$499.99
3 Year
$649.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Crown Audio CDI 4X600
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 4|600BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The 4|600BL also comes with BLU link, adding the ability to send and receive channels over HARMAN's digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
DriveCore Technology
Crown's proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
Network Control and Monitoring
Through HARMAN's HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQnetwork.
BLU link (BL models only)
Both receive and send channels over HARMAN's 256 channel, fault-tolerant audio BUS, BLU link.
DSP
On-board Digital Signal Processor in each amplifier allows for custom configuration and includes these integrated features:
• Input Router
• Input Delay
• Up to 1000ms
• Input Parametric EQ - 8 band
• Crossover
• Output Parametric EQ - 8 band
• Output Delay - Up to 100ms
• LevelMAX Limiter
Direct Drive 70/100Vrms Output
Each output channel is capable of providing either 70V or 100V for high impedance applications.
Front-Panel Interface
Completely configure the amplifier using an intuitive front-panel interface.
GPIO/AUX Port
Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
Pre-loaded Speaker Tunings
For quicker and easier setup and installation.
Crown Audio CDI 4X600 Features
- Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability
- BLU link digital audio transport - Up to 256 Channels of digital audio over Category 5e cabling
- Supports configuration and control using HiQnet Audio Architect
- Monitoring and control over TCP/IP
- Color LCD and front panel user interface for amplifier configuration, control, and monitoring
- Programmable GPIO (general purpose input/output) control port
- Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAXTM limiters)
- Support for importing of FIR filter coefficients
- 20 device presets - 1 factory and 19 user
- 96kHz/32-bit floating-point signal processing
- Universal power supply with PFC for reduced current draw and industry-leading efficiency
- Power saving modes
- Remote power off - Sleep mode activated via AUX port
- 70Vrms/100Vrms direct drive
- Each channel independently configurable for low z or high z operation
- Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage, and high-frequency overload
- Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
- Included speaker tunings for various JBL speaker models
- Support for BSS Audio Soundweb Contrio Ethernet wall controllers
