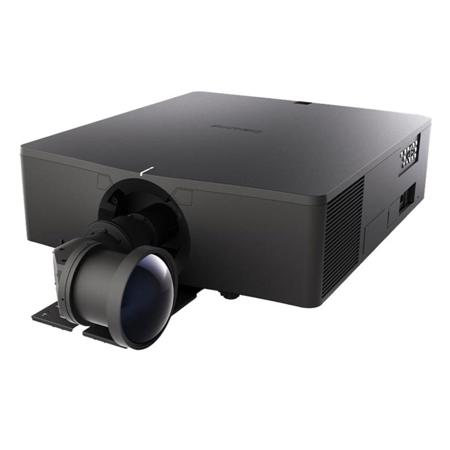

Christie Digital 4K10-HS 4K Ultra HD 1DLP Laser Projector

SKU: CRD171012143 MFR: 171-012104-03
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 4K UHD resolution for incredibly detailed images.
  • Enjoy vibrant, true-to-life colors with Christie BoldColor Technology on this projector.
  • The 11,000 ISO lumens ensures a bright, clear image, even in well-lit environments.
  • Benefit from a long-lasting laser lamp life of up to 20,000 hours, reducing maintenance.
  • Achieve superior contrast ratios for deeper blacks and brighter whites in your presentations.
  • This professional projector offers versatile connectivity options, including HDMI and DisplayPort.
See More Product Details
Special Order?Estimated to Ship: 08/11/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Christie Digital 4K10-HS Specifications

  • ISO lumens

    11000

  • ANSI lumens

    10000

  • Color wheel

    4 segment (RGBY) 2X speed

  • Contrast ratio

    Full On/Off (Christie Real Black enabled): 2,000,000:1
    Full On/Off (Christie Real Black disabled): 1,100:1

  • Dynamic contrast

    5,000:1

  • Display type

    1x0.66" DMD

  • Resolution

    4K UHD (3840 x 2160)

  • Illumination type

    Laser phosphor with Christie BoldColor Technology

  • Illumination performance (hrs)

    20,000 hours to 50%

  • Scan rates

    Horizontal: 15-91kHz
    Vertical: 24-85Hz

  • Pixel clock rate

    Maximum input pixel rate: 594 Mpix/s (supports 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz over HDMI & DP)
    Minimum input pixel rate: 27 Mpix/s (supports 480i @ 60Hz & 576i @ 50Hz

  • Signal inputs

    Standard:
    HDMI x 2 (HDMI 2.0b, HDCP 2.2 Compliant)
    DVI-D (digital only)
    DisplayPort (versions 1.2)

    Optional:
    Terra SDVoE (optional input card)
    Wi-Fi dongle (optional)
    3G SDI (optional input card)
    USB x1 (Type A)
    HDBaseT (RJ45)

    Signals:
    Standard video signals up to 4096 x 2160 @ 60Hz (over a single cable; HDMI 2.0 or DP 1.2)

  • 3D inputs

    3D & 2D HFR:
    HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential at 100P up to 120Hz
    Signal input up to 1920 x 1080 @ 120Hz over HDMI, DP and DVI
    3D sync in (BNC) - for genlocking projectors
    3D sync out (BNC) - for genlocking projectors, or controlling emitter or polarizer

  • Signal outputs

    3GSDI (BNC)
    HDMI x1 (HDMI out)

  • Control and networking

    RS232 In
    Control via HDBaseT
    Ethernet (10/100) RJ45
    Built-in backlit keypad
    Wired remote control (3.5mm stereo) loop out available for daisy chaining

  • Warping and blending

    Standard:
    Christie Twist

    Optional:
    Christie Twist Premium and Twist Pro
    Christie Mystique automated camera-based alignment

  • Lens mount

    Boresight adjustable
    Motorized horizontal and vertical lens offset (memory available)
    Motorized zoom and focus adjustment (memory available for full ILS lenses)

  • Lens options

    0.58:1 UST lens
    0.85-1.02:1
    1.2-1.73:1
    1.7-2.21:1
    2.21-2.83:1
    2.83-5.66:1

  • Power requirements

    Operating voltage:
    Normal: 100-240 VAC @ 50/60Hz with a 16A fuse

    Power consumption:
    Normal Mode: 1250W
    ECO1 mode (80%): 1010W
    ECO2 mode (50%): 630W

    Operating current:
    Normal mode: 12A (100-240 VAC)

  • Dissipation

    Normal mode: 2900 BTU/hr
    Eco1 mode: 2388 BTU/hr
    Eco2 mode: 1587 BTU/hr

  • Audible noise

    Typical: 39dBA
    Eco mode: 36dBA

  • Operating environment

    Temp: 32 to 104 Degree F (0 to 40 Degree C)
    Humidity: 0 85% non-condensing

  • Regulatory

    Contact Christie for the timing of certifications:
    UL/CSA/IEC 60950-1 FCC Class A CE FDA CCC KC PSE CU BIS VCCI RCM TER (This product conforms to all relevant European directives, standards, safety, health and environmental concerns)
    RoHS REACH WEEE

  • Dimensions (L x W x H)

    23.6 x 20.5 x 8.4" (600 x 520 x 214mm) (Without feet)

  • Weight

    74.96 lbs (34kg)

2 Accessories for Christie Digital 4K10-HS 4K Ultra HD 1DLP Laser Projector

  • All Accessories (2)
  • Lenses (1)
  • Stands (1)

About Christie Digital 4K10-HS

A pinnacle of projection technology, the Christie 4K10-HS 4K Ultra HD 1DLP Laser Projector stands out as a high-quality, advanced solution for professional-grade presentations and screenings. This powerful projector boasts a native 4K UHD resolution (3840 x 2160 pixels), ensuring that every image it casts is infused with an extraordinary level of detail and clarity. With its impressive 10,000-lumen output, the 4K10-HS is capable of delivering bright, vivid visuals that remain clear and impactful even in well-lit environments, making it an ideal choice for large venues such as conference centers, auditoriums, and cinemas.

The innovative Christie BoldColor Technology is a game-changer, providing enhanced color performance that brings every scene to life with natural, vibrant hues. The fidelity of 4K UHD resolution, combined with HDR10 compatibility, ensures that visuals are not just lifelike but are rendered with a depth and clarity that surpasses conventional projectors.

The 4K10-HS is designed with state-of-the-art features to streamline setup and integration. Built-in Christie Twist technology facilitates quick and effortless multi-projector configurations, allowing for seamless image blending and geometry correction. This feature is particularly useful for complex installations and large-scale events where multiple projectors are required to create an expansive, unified display.

For added versatility, the projector includes two expandable option card slots, ready to accommodate a variety of input cards such as the Christie Terra for AV-over-IP solutions, 3G SDI for broadcast-grade video, and HDBaseT for long-distance, single-cable transmission. Connectivity is further enhanced with HDMI 2.0 and Display Port 1.2 inputs, enabling the projector to handle 4K60Hz content over a single cable, thus simplifying the setup process and minimizing cable clutter.

The Christie 4K10-HS 4K Ultra HD 1DLP Laser Projector is a testament to the fusion of cost-efficiency and high-end performance. It is the perfect choice for users seeking a robust, high-resolution projection solution that delivers both exceptional image quality and enduring value without compromising on budget.

Christie Digital 4K10-HS Features

  • 1DLP 4K UHD resolution - Benefit from high fidelity visuals at an affordable price
  • Christie BoldColor Technology - Laser illumination combined with Christie BoldColor Technology for the highest quality images, life-like visuals and reliability
  • Long-life laser light source - Up to 20,000 hours to 50% brightness of virtually maintenance-free operation
  • Compact and light - Small form factor and weighs less than 80 lbs. for easy shipping, lifting and installation
  • Blend and warp - Compatible with Christie Twist for quicker and easier multi-projector setups
  • Fully omnidirectional - Unrestricted design and installation flexibility
  • Expandable - Customize the performance and flexibility with two expandable option card slots
  • Comprehensive connectivity - Full connectivity for popular formats including 3GSDI (optional) for added redundancies
  • Advanced electronics - Firmware updates take only minutes
  • Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
  • TAA Compliant

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning visuals with 4K UHD resolution for incredibly detailed images.
  • Enjoy vibrant, true-to-life colors with Christie BoldColor Technology on this projector.
  • The 11,000 ISO lumens ensures a bright, clear image, even in well-lit environments.
  • Benefit from a long-lasting laser lamp life of up to 20,000 hours, reducing maintenance.
  • Achieve superior contrast ratios for deeper blacks and brighter whites in your presentations.
  • This professional projector offers versatile connectivity options, including HDMI and DisplayPort.

What's in the box:

  • Christie Digital 4K10-HS 4K Ultra HD 1DLP Laser Projector
  • IR Remote with Wired Remote Jack (Wire Available Separately)
  • AC Line Cord
  • User Manual
  • (Lens Not Included)
  • Christie Digital 3 Year Limited Warranty (3 Year or 20000 Hours On Illumination System Whichever Comes First)
