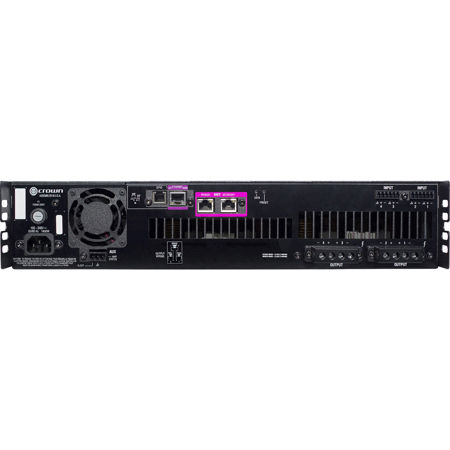

Crown Audio DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier with Dante/AES67 Networked Audio, 70V/100V Speaker Loads

SKU: CRDCI4600DA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the built-in DAC and DSP in the DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier?

The built-in DAC (Digital-to-Analog Converter) and DSP (Digital Signal Processor) in the DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier are designed to enhance the quality of audio processing. The DAC converts digital audio signals into analog signals for amplification, while the DSP allows for advanced sound optimization and control.

What is the benefit of Dante/AES67 networked audio?

Dante/AES67 networked audio allows for easy and seamless integration with other audio devices and systems. This feature simplifies the installation process and provides flexibility in setting up complex audio configurations. It also supports network control and monitoring for efficient management of your audio setup.

What does the HiQnet Audio Architect software do?

The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers. This software provides better monitoring, control and audio manipulation over a standard TCP/IP network, making it easier to manage your audio setup from a distance.

What are the uses of the programmable GPIO ports?

The programmable General Purpose Input/Output (GPIO) ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control systems. This feature provides flexibility and customization in managing your audio setup.

What are the Digital Signal Processing features included in this amplifier?

The DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier includes a range of Digital Signal Processing (DSP) features, including LevelMAX Limiters for Inputs and Outputs with Thermal Limiting, Input Compressor, Input and Output Delay, Input and Output EQ, and a Signal Generator. These features provide precise control over your audio output for optimal sound quality.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Crown Audio DCi 4|600DA Specifications

  • Number of Channel

    4

  • Power Rating

    600W

  • Frequency Response

    +/-0.25dB (8Ohms, 20Hz - 20kHz)

  • Dante Input Signal to Noise Ratio

    >108dB (ref. rated power, 8Ohms, 20Hz-20kHz)

  • Total Harmonic Distortion

    0.35% (at full rated power, 20Hz - 20kHz)

  • Voltage Gain

    34dB (at Maximum Level Setting)

  • Damping Factor

    >1000 (20Hz to100Hz)

  • Input Impedance

    10KOhms (nominally balanced), 5KOhms (nominally unbalanced)

  • Maximum Input Level Before Compression

    +20dBu (Low Gain Mode)

  • Load Impedance Stereo/Dual Mode

    2Ohms - 16Ohms; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4Ohms - 16Ohms; 140Vrms and 200Vrms

  • Cooling

    Continuously variable speed forced air, front to back airflow

  • Maximum Fan Noise

    45 (re dBA SPL at 1M)

  • Required AC Mains

    100Vrms - 240Vrms approx. 50/60Hz (+/-10%)

  • Power Connector

    15A IEC

  • Dimensions (WxHxD)

    19 x 3.5 x 14.25" (48.26 x 8.89 x 36.20cm)

  • Weight

    20.1 lbs (9.12kg)

About Crown Audio DCi 4|600DA

From professional audio installations to live performances, the DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier is a powerful and advanced solution for all your audio needs. This high-quality amplifier is designed to deliver superior sound reproduction, thanks to its built-in DAC and DSP for top-notch audio processing.

With Dante/AES67 networked audio, this amplifier offers seamless integration with other audio devices and systems, making it an ideal choice for complex audio setups. Its 600 watts per channel output into 8 ohms ensures a robust and dynamic audio experience, whether you're using it for concerts, live performances, or other events requiring high-quality sound.

The DriveCore Install DA Series amplifier is not just powerful, but also versatile. It supports 2/4/8/16 Ohms, 70V, and 100V speaker loads, providing a balanced combination of output power, channel count, and speaker load flexibility. Its proprietary DriveCore technology ensures superb efficiency and exemplary audio quality, making it a reliable choice for professional audio applications.

The amplifier's advanced capabilities extend to its network control and monitoring features. With the HiQnet Audio Architect software, you can remotely configure, monitor, and control all aspects of the DCi-DA Series amplifiers. The amplifier also includes a programmable General Purpose Input/Output (GPIO) port, offering a range of configuration options for volume controls, recall presets, or error reporting to third-party control systems.

The DriveCore Install DA Series amplifier is also equipped with a range of Digital Signal Processing (DSP) features, including LevelMAX Limiters for Inputs and Outputs with Thermal Limiting, Input Compressor, Input and Output Delay, Input and Output EQ, and a Signal Generator. These features, along with its 48kHz processing and 20 presets, ensure you have complete control over your audio output.

In addition, this amplifier features redundant, independent Dante/AES67 ports, high, medium, and low priority inputs, and a range of monitoring and control features. With its durable construction and removable air filters, this amplifier is designed to withstand the rigors of professional use while ensuring easy maintenance.

In conclusion, the DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier with Dante/AES67 Networked Audio, 70V/100V Speaker Loads is a powerful, high-quality, and advanced audio solution that offers professional-grade performance and versatility.

Crown Audio DCi 4|600DA Features

  • The latest technology based on Crown's proprietary and patented DriveCore technology, these amplifiers are the next generation of PWM technology using cutting edge Class D amplifier topologies
  • True Rack Density - power points of 300W, 600W, or 1250W in 4/8 channel configurations; includes bridgeable outputs of 300-2500W, all in a 2U formfactor, providing flexibility in designs
  • Minimum Guaranteed Power Ratings - DCi amplifiers are guaranteed to deliver at least the rated power in the specifications over a longer period of time than any other competing amplifier
  • Direct Drive "Constant Voltage" capabilities on a channel by channel basis for 70Vrms or 100Vrms amplification without the use of a step up frequency limiting transformer for higher audio quality
  • HiQnet Audio Architect supported amplifier
  • Advanced PFC universal power supply provides market-leading efficiency, and is designed to deliver maximum power no matter where the amplifier is located; Universal AC input accepts 100 - 240VAC, 50/60Hz (+/-10%)
  • DriveCore includes five patents that are also included in Crown s flagship touring amplifier I-Tech HD4, providing best-in-class versatility and durability
  • TCP/IP based protocol in HiQnet for network monitoring and control
  • Revolutionary cooling system focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise
  • Integrated Dante / AES67 networked audio - simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier

Key Features

  • Built-in DAC and DSP for high-fidelity audio processing and sound optimization
  • Advanced HiQnet Audio Architect software for comprehensive remote monitoring and control
  • Programmable GPIO ports for custom configurations and seamless third-party system integration

What's in the box:

  • Crown Audio DriveCore Install DA Series 4-Channel 600W Professional Power Amplifier
  • IEC Power Cord
  • 4x Male Input Connectors
  • Crown Audio 3 Year Limited Warranty
