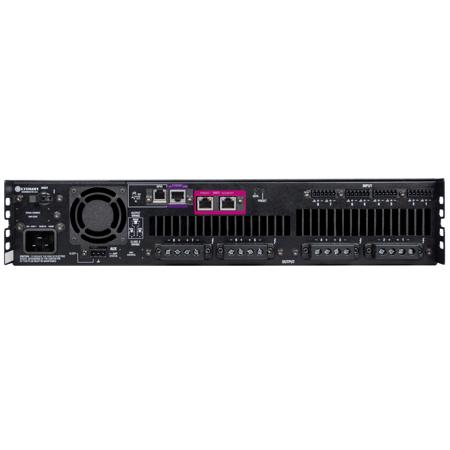

Crown Audio DriveCore Install DA Series 8-Channel 600W Professional Power Amplifier with Dante/AES67 Networked Audio, 70V/100V Speaker Loads

SKU: CRDCI8600DA MFR: DCI 8|600DA
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Crown Audio power amplifier's low THD, ensuring clear sound.
  • Harness the high power output of this 8-channel amplifier for impactful, room-filling sound experiences.
  • Enjoy a robust signal-to-noise ratio, delivering crystal-clear audio free from unwanted background noise.
  • This power amplifier's high damping factor ensures tight control over speakers for accurate sound reproduction.
  • With versatile input impedance, this amplifier easily integrates into your existing audio setup seamlessly.
  • Rely on the protection circuitry of this Crown Audio amplifier, safeguarding your investment from damage.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Crown Audio DCi 8|600DA Specifications

  • Number of Channel

    8

  • Power Rating

    600W

  • Frequency Response

    +/-0.25dB (8Ohms, 20Hz - 20kHz)

  • Dante Input Signal to Noise Ratio

    >108dB (ref. rated power, 8Ohms, 20Hz-20kHz)

  • Total Harmonic Distortion

    0.35% (at full rated power, 20Hz - 20kHz)

  • Voltage Gain

    34dB (at Maximum Level Setting)

  • Damping Factor

    >1000 (20Hz to100Hz)

  • Input Impedance

    10KOhms (nominally balanced), 5KOhms (nominally unbalanced)

  • Maximum Input Level Before Compression

    +20dBu (Low Gain Mode)

  • Load Impedance Stereo/Dual Mode

    2Ohms - 16Ohms; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4Ohms - 16Ohms; 140Vrms and 200Vrms

  • Cooling

    Continuously variable speed forced air, front to back airflow

  • Maximum Fan Noise

    47 (re dBA SPL at 1M)

  • Required AC Mains

    100Vrms - 240Vrms approx. 50/60Hz (+/-10%)

  • Power Connector

    20A IEC

  • Dimensions (WxHxD)

    19 x 3.5 x 17" (48.26 x 8.89 x 43.18cm)

  • Weight

    30 lbs (13.61kg)

  • UPC Code

    00691991010255

About Crown Audio DCi 8|600DA

For professional audio installations demanding the highest standards of audio quality and network integration, the Crown DriveCore Install DA Series stands out as a powerful and versatile 8-channel 600W professional power amplifier. This advanced amplifier is engineered to deliver high-quality sound reinforcement with the flexibility to accommodate 70V and 100V speaker loads, as well as 2/4/8/16 Ohm configurations, making it an ideal choice for a wide range of professional audio applications.

Equipped with Crown's proprietary DriveCore technology, the amplifier boasts exceptional efficiency and audio performance, ensuring that your sound is clear, powerful, and true to the original recording. The built-in high-powered DSP with JBL speaker tunings enhances the audio experience further, allowing for precise sound customization and optimization for any environment.

The integrated Dante/AES67 networked audio capability simplifies the installation process by enabling direct transmission of networked audio signals to the amplifier. This feature, combined with support for Dante 4.0 firmware and Dante Domain Manager, ensures seamless integration into modern audio systems that rely on Dante for networked audio transport.

The amplifier's network configuration, monitoring, and control are made effortless with the HiQnet Audio Architect software, which operates over a standard TCP/IP network. This allows for remote access to configure, monitor, and manage all aspects of the DCi-DA Series amplifiers from a centralized location.

The programmable General Purpose Input/Output (GPIO) ports offer additional flexibility, enabling custom configurations such as volume controls, preset recalls, or error reporting to third-party control systems. The amplifier's network monitoring and control features, including continuous load monitoring and comprehensive error reporting, ensure reliable performance and quick troubleshooting.

Digital Signal Processing (DSP) is at the heart of the amplifier's advanced capabilities, with features such as LevelMAX Limiters for inputs and outputs with thermal limiting, input compressors, input and output delay, EQ, signal generators, crossovers, and 48kHz processing. With 20 presets and an input router, the DSP allows for extensive audio manipulation to achieve the perfect sound for any venue.

The amplifier also includes redundant, independent Dante/AES67 ports for added reliability, capable of accepting 48kHz or 96kHz signals and sending out Dante/AES67 audio from analog inputs pre/post-processing at 48kHz. High, medium, and low priority inputs, along with comprehensive load monitoring features like pilot tone monitoring and channel auto-standby, ensure that the amplifier operates efficiently and effectively.

In summary, the Crown DriveCore Install DA Series 8-Channel 600W Professional Power Amplifier is a robust, high-quality solution for professional audio systems requiring advanced network integration and superior sound performance. Its durable construction, combined with cutting-edge technology, makes it a top choice for audio professionals seeking a reliable and powerful amplifier for their installations.

Crown Audio DCi 8|600DA Features

  • The latest technology based on Crown's proprietary and patented DriveCore technology, these amplifiers are the next generation of PWM technology using cutting edge Class D amplifier topologies
  • True Rack Density - power points of 300W, 600W, or 1250W in 4/8 channel configurations; includes bridgeable outputs of 300-2500W, all in a 2U formfactor, providing flexibility in designs
  • Minimum Guaranteed Power Ratings - DCi amplifiers are guaranteed to deliver at least the rated power in the specifications over a longer period of time than any other competing amplifier
  • Direct Drive "Constant Voltage" capabilities on a channel by channel basis for 70Vrms or 100Vrms amplification without the use of a step up frequency limiting transformer for higher audio quality
  • HiQnet Audio Architect supported amplifier
  • Advanced PFC universal power supply provides market-leading efficiency, and is designed to deliver maximum power no matter where the amplifier is located; Universal AC input accepts 100 - 240VAC, 50/60Hz (+/-10%)
  • DriveCore includes five patents that are also included in Crown s flagship touring amplifier I-Tech HD4, providing best-in-class versatility and durability
  • TCP/IP based protocol in HiQnet for network monitoring and control
  • Revolutionary cooling system focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise
  • Integrated Dante / AES67 networked audio - simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier

Product Documents

User Manual

Key Features

  • Experience pristine audio with this Crown Audio power amplifier's low THD, ensuring clear sound.
  • Harness the high power output of this 8-channel amplifier for impactful, room-filling sound experiences.
  • Enjoy a robust signal-to-noise ratio, delivering crystal-clear audio free from unwanted background noise.
  • This power amplifier's high damping factor ensures tight control over speakers for accurate sound reproduction.
  • With versatile input impedance, this amplifier easily integrates into your existing audio setup seamlessly.
  • Rely on the protection circuitry of this Crown Audio amplifier, safeguarding your investment from damage.

What's in the box:

  • Crown Audio DriveCore Install DA Series 8-Channel 600W Professional Power Amplifier
  • IEC Power Cord
  • 4x Male Input Connectors
  • Crown Audio 3 Year Limited Warranty
