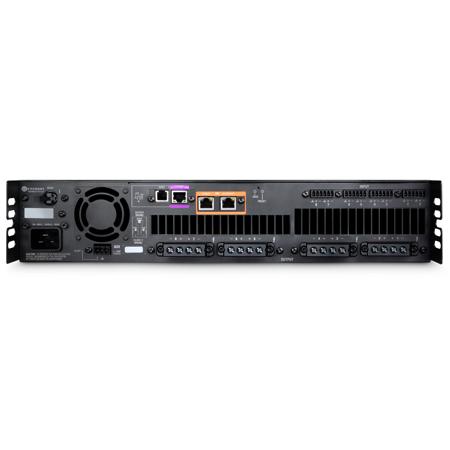

Crown Audio DCi 8X600ND Install Network Display 8-Ch 8x600W Power Amp with AVB
See all Crown Audio items

Crown Audio DCi 8X600ND DriveCore Install Network Display Series 8-Channel 8x600W Power Amplifier w/ Audio Video Bridging

SKU: CRDCI8X600ND
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Crown Audio CDI 4X1200: Picture 1 regular
Crown Audio CDi 4X1200BL DriveCore 4-Ch 4x1200 Power Amplifier w/ BLU Link
$5,629.00
Crown Audio CDi 2|1200: Picture 1 regular
Crown Audio CDi DriveCore 2-Channel 1200W Power Amplifier, Analog Input
$3,456.00
Crown Audio CDI 2X1200: Picture 1 regular
Crown Audio CDi 2X1200 DriveCore 2-Channel 2x1200W Power Amplifier, Analog Input
$3,724.00
Crown Audio CDI 2X300: Picture 1 regular
Crown Audio CDi 2X300 DriveCore Series 2-Ch 2x300W Power Amplifier, Analog Input
$1,798.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Audio Video Bridging (AVB) feature in the DCi 8X600ND DriveCore Install Network Display Series 8-Channel 8x600W Power Amplifier?

The AVB feature allows for the seamless and synchronized integration of audio and video signals. This ensures a harmonious delivery of sound and visuals, making it ideal for professional audio and video system setups.

What is the benefit of the DriveCore technology in this amplifier?

DriveCore technology, patented by Crown, provides best-in-class versatility and durability. It combines the efficiency of Class D amplifier topologies with the next generation of PWM technology, resulting in a high-quality, efficient, and durable audio amplification solution.

How does the HiQNet Audio Architect software integration enhance the functionality of the amplifier?

The HiQNet Audio Architect software allows for sophisticated network monitoring and control of the amplifier. This ensures that your system is always operating at its peak, with continuous load monitoring and comprehensive error reporting.

What is the role of Digital Signal Processing (DSP) in the DCi 8X600ND amplifier?

The DSP in the DCi 8X600ND amplifier enhances the sound quality by meticulously sculpting and controlling the audio output. It includes features like LevelMAX limiters for both inputs and outputs with thermal limiting, input and output delay, equalization, signal generation, and crossover functions.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Crown Audio DCI 8X600 Specifications

  • Channels

    8

  • Frequency Response

    +/- 0.25 dB ( 8 Ohms, 20 Hz - 20 kHz)

  • AVB Signal to Noise Ratio

    > 108 dB (A-weighted)

  • Total Harmonic Distortion

    0.35% (at full rated power, 20Hz - 20kHz)

  • Voltage Gain

    34dB (at Maximum Level Setting)

  • Damping Factor

    >1000 (20Hz to 100Hz)

  • Input Impedance

    10k Ohm, 5k Ohm (nominal balanced, unbalanced)

  • Maximum Input Level before Compression

    +20 dBu (Low Gain Mode)

  • Rated Power Output

    Dual-Mode
    300W @ 2 Ohm
    600W @ 4 Ohm
    600W @ 8 Ohm
    300W @ 16 Ohm

    Bridge Mono Mode
    600W @ 4 Ohm
    1200W @ 8 Ohm
    1200W @ 16 Ohm

  • Load Impedance Stereo/Dual Mode

    2 Ohm - 16 Ohm; 70Vrms and 100Vrms

  • Load Impedance Bridge Mono

    4 Ohm - 16 Ohm; 140Vrms and 200Vrms

  • Cooling

    Continuously variable speed forced air, front to back airflow

  • Maximum Fan Noise

    47 (re dBA SPL @ 1M)

  • Required AC Mains ( +/-10%)

    100V - 240V -50/60Hz

  • IEC Power Connector

    20A IEC

  • Dimensions (W x H x D)

    19 x 3.5 x 17" (48.3 x 8.9 x 42.5cm)

  • Weight

    30 lb (13.60kg)

  • UPC Code

    691991008474

About Crown Audio DCI 8X600

There are two Network Display amplifiers: the 8|600ND and 4|1250ND; both of which boast AVB technology-guaranteeing consistent audio and information delivery. These amplifiers are certified by the AVnu Alliance.

DriveCore
• Crown's DriveCore technology includes five patents, providing best-in-class versatility and durability

Innovative Technology
• The next generation of PWM technology using cutting edge Class D amplifier topologies
• Audio Video Bridging (AVB) Ethernet transport ports
• Revolutionary cooling system; focuses airflow on parts that need it most for maximum efficiency

Software
• Compatible with HiQNet Audio Architect software
• TCP/IP based protocol in HiQnet for network monitoring and control

Power
• Direct drive 'constant voltage' capabilities on channel by channel basis at 70Vrms and 100Vrms
• Minimum Guaranteed Power Ratings
• Advanced PFC universal power supply; universal AC input accepts 100 - 240VAC, 50/60Hz ( +/-10%)

Network & Control
• Continuous load monitoring
• Comprehensive error reporting
• Pilot tone monitoring
• Programmable general purpose input/output (GPIO) ports

Digital Signal Processing (DSP)
• LevelMAX limiters for inputs and outputs with thermal limiting
• Input and output delay
• Input and output EQ
• Signal generator
• Crossover

Crown Audio DCI 8X600 Features

  • Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption and improved reliability
  • AVB Digital Audio Transport
  • Configuration in HiQnet Audio Architect
  • Programmable General Purpose Input/Output Control Port
  • Priority Input Router
  • PFC Power Supply - The universal PFC Power Supply offers reduced current draw and provides industry leading efficiency
  • Monitoring and Control over TCP/IP
  • Real time Continuous Loading Monitoring
  • Power Saving Modes - Power consumption in sleep mode is approximately 1W
  • Adjustable Auto Standby
  • Remote Power Off - Sleep mode is activated via AUX port
  • 70 V / 100 V Direct Drive - Each channel is individually selectable for Low-Z or High-Z operation
  • Advanced Protection Circuits - Amplifier and loads are protected against shorted outputs, DC,mismatched loads, overheating, over- or under-voltage, and high frequency overload
  • Complies with Green Edge by Harman - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AVB Digital Audio Transport
  • Configuration in HiQnet Audio Architect
  • Programmable General Purpose Input/Output Control Port
  • Priority Input Router
  • Monitoring and Control over TCP/IP
  • Real time Continuous Loading Monitoring

What's in the box:

  • DCi 8X600ND DriveCore Install Network Display Series 8-Channel 8x600W Power Amplifier
  • Crown Audio 3 Year Limited Warranty
