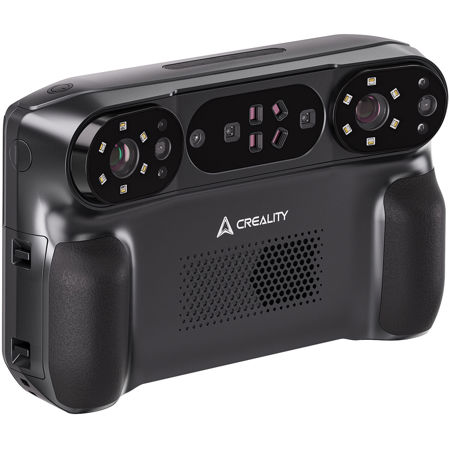

Creality Sermoon P1 All-in-One Wireless 3D Scanner

Creality Sermoon P1 - All in One, All in Flow

Scan, Process, Export - All in one Device
An all-in-one 3D scanning workflow in a single device. With advanced laser & structured light systems and powerful onboard computing, Sermoon P1 enables high-precision scanning and processing-no PC required.

Scan Anywhere, No Limits
Built for tight, hard-to-reach spaces, Sermoon P1 enables flexible, cable-free scanning where traditional setups fall short. Capture high-quality data on-site-fast, efficient, and without constraints.

Triple Work Modes, Flexible Operation
Switch seamlessly between Standalone, Wired PC, and Wireless PC modes-adapt easily to any scanning environment or workflow.

0.02mm + 0.06mm/m, Reliable Consistent Accuracy
Designed for repeatable, reliable results in professional workflows such as reverse engineering and automotive customization.

Hybrid Light Source System

Featuring 22 + 7 + 1 blue laser lines + NIR structured light
Sermoon P1 adapts to different surfaces and materials.

Single-Line Deep Scanning
For measuring deep holes and hard-to-reach areas.

7 Parallel-Line Fine Scanning
For swift detail capture of intricate features and complex structures.

22 Cross-Line Fast Scanning
For efficient scanning to quickly capture the geometry and dimensions of large parts.

NIR Markerless Scanning
Fast, marker-free scanning for large objects and the human body.

Single-Line Laser, Mastering Deep Holes (Up to depth-to-diameter ratio 6:1)
The P1 single-line laser deep-hole scanning mode captures accurate 3D data from hard-to-reach areas such as deep holes, narrow gaps, and recesses. It supports scanning narrow holes with a depth-to-diameter ratio of up to 6:1, delivering more complete 3D data for design, inspection, analysis, and beyond. Test based on a 28.68mm diameter pipe, with a measured depth of 172.2mm.

• Deep Holes
• Narrow Gaps
• Recessed Areas

Innovative 4-Lens

High Definition Lenses:
• Share the same lenses with blue laser
• Provide high accuracy scanning

Wide FOV Lenses:
Offer an ultra-wide field of view for fast, marker-free scanning of large objects and human bodies.

Fast Scanning, Smooth Capture
High-speed data acquisition ensures smooth, accurate real-time reconstruction-even during complex scans.

• Blue Laser Mode: Up to 60 FPS (Standalone) / 100 FPS (PC)
• Infrared Mode: Up to 18 FPS (Standalone) / 30 FPS (PC)

High-performance Qualcomm Processor
Powered by a Qualcomm high-performance processor with CPU/GPU/FPGA acceleration for fast, real-time scanning and data processing.

• CPU | 8-Core 3.36 GHz
• GPU | Adreno 740

Ultra-Fast Memory & Storage
24GB LPDDR5X RAM and 256GB UFS 4.0 ROM. LPDDR5X Provides higher bandwidth and lower latency for smooth, stable processing. Boosts file access and transfer speeds up to 10x faster than eMMC.

Wi-Fi 7, Fast & Stable Connectivity
Built-in Wi-Fi 7 and advanced lossless compression algorithms ensure faster, safer, and more reliable data transfer.

Modulation scheme
• WIFI-7 802.11be, 4096 QAM (Up to 4.8X faster than Wi-Fi 6)
• WIFI-6 802.11ax, 1024 QAM

6-Inch HD Touchscreen- Clear & Intuitive
A 6-inch Full HD display with crisp visuals and an 160 Degree wide viewing angle, ensuring clear visibility even outdoors. Scan, process, and preview-all on a single device.

Swappable Dual-Battery Design
Equipped with two swappable batteries (1 installed, 1 included separately). And comes with an extra battery pack enables seamless, uninterrupted operation.

Power That Keeps You Going
A smart power-saving system automatically enters sleep mode to extend battery life.

Fast Charging
Charges to 80% in just 50 minutes, making outdoor scanning more convenient and worry-free. Each battery features a Type-C charging port for independent charging.

Efficient Scanning at Large FOV
A larger single-frame FOV reduces marker requirements while improving tracking stability and scanning efficiency.

• Blue Laser Max: 380 x 365mm@ 550mm
• Infrared Max: 1245 x 754mm @ 1000mm (1-minute full-body scan)

Wide Scanning Range, All-in-One Efficiency
By combining blue laser lines and NIR structured light, the Sermoon P1 supports a wide scanning range-from 5 x 5 x 5mm up to 4000 x 4000 x 4000mm.

• Blue Laser Scanning Size: 5 x 5 x 5mm to 4000 x 4000 x 4000mm
• NIR Structured Light Scanning: Ideal for medium to large objects, Scanning objects ranging from 150 x 150 x 150mm to 2000 x 2000 x 2000mm

Superior Material & Environmental Adaptability
Both blue laser and NIR structured light offers strong environmental resistance and multi-material adaptability, delivering reliable performance even outdoors.

Efficient Operation in Sunlight
• Single/22 Cross Lines: <=100k lux
• 7 Parallel Lines: <=50k lux

Scan Black/Metal Objects Without Sprays
Captures black, metal objects without scanning sprays.

Full Color Texture Scanning
Equipped with a high-performance Qualcomm ISP chip and a full-color RGB camera with global shutter, enhanced by auxiliary lighting, the P1 delivers richer, more realistic textures.

12 Dual-color LED Fill Lights
Blue light is used for blue laser scanning. White light enhances color texture brightness.

Qualcomm ISP Color Mapping
Advanced color mapping algorithms ensure accurate and vivid color reproduction.

AI Temperature Compensation-Driven Stabilization
An AI-based temperature compensation algorithm works with efficient thermal design to ensure stable output and consistent scanning during extended use.

Powerful and User-Friendly Onboard Software
An all-in-one onboard software integrates Calibration, Scanning, Point-cloud Fusion, Mesh Editing, Multi-scan Merging, enabling complete model processing directly on the device.

Intuitive Interaction
A clean, visual interface guides users from scanning to model creation with ease.

Modular & Flexible Design
Customizable workflow adapts to different scanning needs and user preferences.

One-Click OTA Updates
Regular over-the-air updates ensure your device stays current with the latest features.

Seamless Compatibility with Inspection, Design, and 3D Printing Software
Scan data can be easily imported into mainstream reverse engineering, inspection, and design software such as QuickSurface and Geomagic Design X, streamlining workflows.

Industrial Design Driven by Performance
• Quick-swap battery for field efficiency
• Optimized thermal structure for stable output
• Comfortable grip for extended scanning sessions

Compact & Ready to Go
Compact, carry-on-sized protective case for easy transport. Versatile case for storing 3D scanner, scale, and accessories securely.

Applications
• Automotive
• Reverse Engineering
• Inspection
• Manufacturing
• Art & Antique
