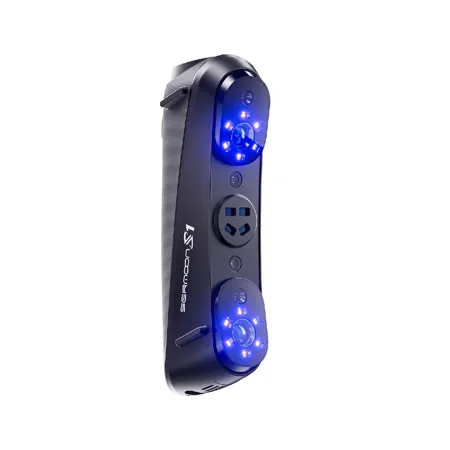

Creality Sermoon S1 3D Scanner

Sermoon S1 - Versatile to the core, accurate evermore

Multi-Light Versatility
1 + 7 + 34 Blue Lasers+ NIR.

High Accuracy
Volumetric Accuracy: 0.02mm + 0.08mm/m.

High Efficiency
Scanning Speed up to 90 FPS Larger FOV for Fasten Scanning of Large Objects, . Innovative 4-Lens NIR Structured Light Enables Efficient, Marker-Free Scanning of Medium to Large Objects.

Versatile Size Scanning
Scan objects ranging from 5 mm to 4000 mm (from Coins to Entire Vehicles).

User-Friendly
Spray-free for Black or Metal Surfaces, Excellent Outdoor Performance, Marker-Free Scanning for Faces & Large Objects, Support Wireless Operation(with Optional Accessory).

Intelligent
Temperature Compensation Algorithm for Stable Long-Term Use, AI-Powered Scanning Software Simplifies Complex Workflows, Seamlessly Integrates with Professional Software, Supporting Standard Formats for Easy Post-Processing, High-Definition Color Reproduction.

Multi-Light Versatility

1 Single Laser Line
Accurately capture 3D data of deep holes and hard-to-reach area.

7 Parallel Blue Laser Lines
Accurately captures fine surface details of complex objects with single-line precision and up to 0.1 mm resolution.

34 Cross Laser Lines
Quickly covers medium to large objects, greatly improving work efficiency.

Innovative 4-Lens NIR Structured Light
Fast marker-free scanning for large objects and the human body.

Reveal deep holes, narrow gaps, and recessed areas
Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuracy.

High Accuracy
Sermoon S1 delivers metrology-grade precision, making it ideal for high-accuracy, non-destructive inspection across industries.

High Efficiency

90FPS High-Speed Scanning
Achieve data acquisition speeds of up to 1,428,000 points per second and a maximum scanning frame rate of 90 frames per second.

Innovative 4-Lens NIR Structured Light
Standard Stereo Lenses: provide high-accuracy scanning Wide FOV: offer an ultra-wide field of view for fast, marker-free scanning of large objects and human bodies.

Efficient Scanning at Large Scale
A larger single-frame FOV reduces the number of required markers, improves tracking stability, and significantly enhances scanning efficiency.

• Line laser maximum: 506mmx433mm at600mm
• Infrared maximum: (scans a human body in as little as 1 minute)

Versatile Size Scanning

Scanning Range 5mm - 4000mm
With a hybrid system combining blue laser lines and infrared structured light, the Sermoon S1 supports a wide scanning range-from as small as 5 x 5 x 5mm to as large as 4000 x 4000 x 4000mm. Ideal for automotive components, coins, bolts, figurines, or even the human body.

User-Friendly Design

Flawless Performance Indoors & Outdoors
Whether under bright outdoor light or in complete indoor darkness, the Sermoon S1 delivers consistent performance.

• Single/cross-line laser: <=100k lux
• 7-line laser: <=50k lux

Scan Black/Metal Objects Without Sprays
Captures black, metal objects without spray powder.

Supports Expandable Scan Bridge
Switch to wireless scanning for unrestricted mobility. (Scan Bridge is sold separately)

Intelligent

Smart Stabilization for a Smoother Scan
Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement, significantly improving overall scanning accuracy and efficiency.

CrealityScan 4.0 AI-Powered Productivity, Made Simple
CrealityScan 4.0 is an upgraded professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, it makes scanning easier than ever.

Faster
GPU acceleration enables real-time scanning up to 90 fps; laser line fusion is 2 x more efficient.

Easier
3D animation-guided calibration, onboarding pages, and tutorial sandbox.

Stronger
Fine local details, global marker tracking, seamless alignment.

Smarter
AI repair with hairstyle switching to generate print-ready avatars.

Seamless Integration to Inspection, Design, 3D Printing Softwares
The scan data can be imported into mainstream reverse engineering software, 3D inspection and design software programs, such as Quick Surface, Geomagic Design X, improving the workflow efficiency.
