Creality UW-01 Washing and Curing Machine

SKU: CRUW01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the UW-01 Washing and Curing Machine be used with any brand of resin printer?

The UW-01 is designed to be compatible with most resin printers, making it a versatile choice for users with different printer brands.

Does the UW-01 Machine have different speed settings for washing and curing?

Yes, the UW-01 features an adjustable three-gear speed mode, allowing users to customize the speed for both washing and curing processes.

Is it possible to cure larger 3D models with the UW-01 Machine?

The machine is equipped with a double-row, 9-bead UV LED design that provides a higher irradiated area, suitable for quick and even curing of larger models.

How does the UW-01 Machine ensure even curing of 3D models?

The UW-01 utilizes a 360-degree rotating curing platform with magnetic force and reflective mirrors to maximize light exposure and ensure even curing from all angles.

What happens if the machine cover is removed during the curing process?

If the cover is removed during curing, the UW-01 Machine automatically suspends operation to prevent light pollution and avoid unintentional exposure to the UV light.

Shopper : Why Did You Choose This?Edward S : large basket size for large printing

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Creality UW-01 Specifications

  • Control method

    Touch button, LED indicator

  • Rated power

    96W

  • Input voltage

    24V

  • Curing and washing time

    2-90min

  • Washing Size (L x W x H)

    6.6 x 4.7 x 6.2" (170 x 120 x 160mm)

  • Air-drying and curing Size

    6.4 x 7.8" (165 x 200mm)

  • Dimensions

    8.8 x 8.8 x 14.5" (225 x 225 x 370mm)

  • Weight

    14.3 lbs (6.5kg)

  • UPC Code

    768494408183

About Creality UW-01

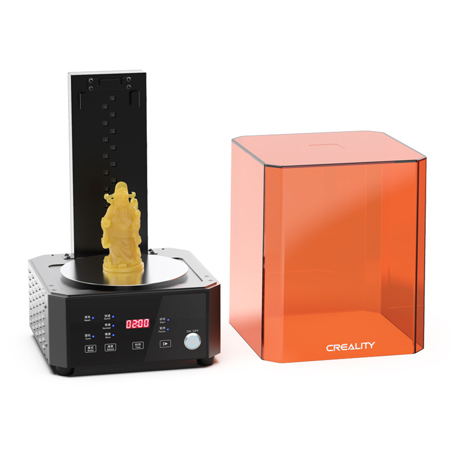

Let the Creality UW-01 Washing and Curing Machine streamline your 3D printing post-process with its innovative all-in-one design. This high-quality machine offers a one-step solution to finish your model post-process, combining both washing and curing capabilities in a single, user-friendly device.

The UW-01 boasts an adjustable three-gear speed mode, allowing you to customize the process to your specific needs. Additionally, it offers a flexible 2-90 minute washing and curing time range, ensuring your delicate models are treated with the utmost care and precision.

The machine's strong wash mode features a flexible washing method, allowing models to be washed separately in the washing basket or together with bottom plates. Its large size sealed washing container supports larger model cleaning, while the sealed container and lid prevent cleaning solution volatilization and allow for repeated solution use. The self-adjustable bracket adjusts the water level based on the washing container and model size, ensuring an optimal wash every time.

In cure mode, the UW-01 shines with its double-row, double-band UV lamp beads. Equipped with 18 built-in UV LED lights, this advanced machine is compatible with most resin printers. The double row 9-bead design with a higher irradiated area ensures quick curing and even irradiation for larger models.

The 360-degree specular reflections curing rotating platform utilizes magnetic force and a reflective mirror to make full use of the light source, curing your model from all angles. For added safety, the UW-01 Washing and Curing Machine automatically suspends curing when the machine cover is removed, reducing light pollution and avoiding light source glare.

Experience the durability and efficiency of the Creality UW-01 Washing and Curing Machine, a trusted solution for your 3D printing needs.

Creality UW-01 Features

  • Dual-band UV light source
  • Magnetic 360 Degree rotatable platform
  • Large-size washing container
  • Adjustable three-gear speed
  • 2-90min optional
  • HD touch button

Key Features

  • All-in-one 3D model washing and curing machine for streamlined post-processing
  • Adjustable speed with 2-90 minute timer for precise and gentle model finishing
  • Large sealed washing container accommodates bigger models, preserving cleaning solution
  • Double-row UV LED lights for compatible, quick, and even curing of resin prints
  • 360-degree rotating curing platform with magnetic force for thorough and uniform results
  • Innovative safety feature halts curing when cover is removed to minimize light exposure

What's in the box:

  • Creality UW-01 Machine Main Body
  • Washing Basket
  • Washing Container
  • Washing Container Cover
  • Adjustable Bracket
  • Plateform Support
  • Hexagon Wrench
  • Spare Stainless Steel Bearing
  • Ligh Curing Platform
  • Creality 1 Year Limited Warranty
